Driver or Passenger Seat Back Cushion Pad Support Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

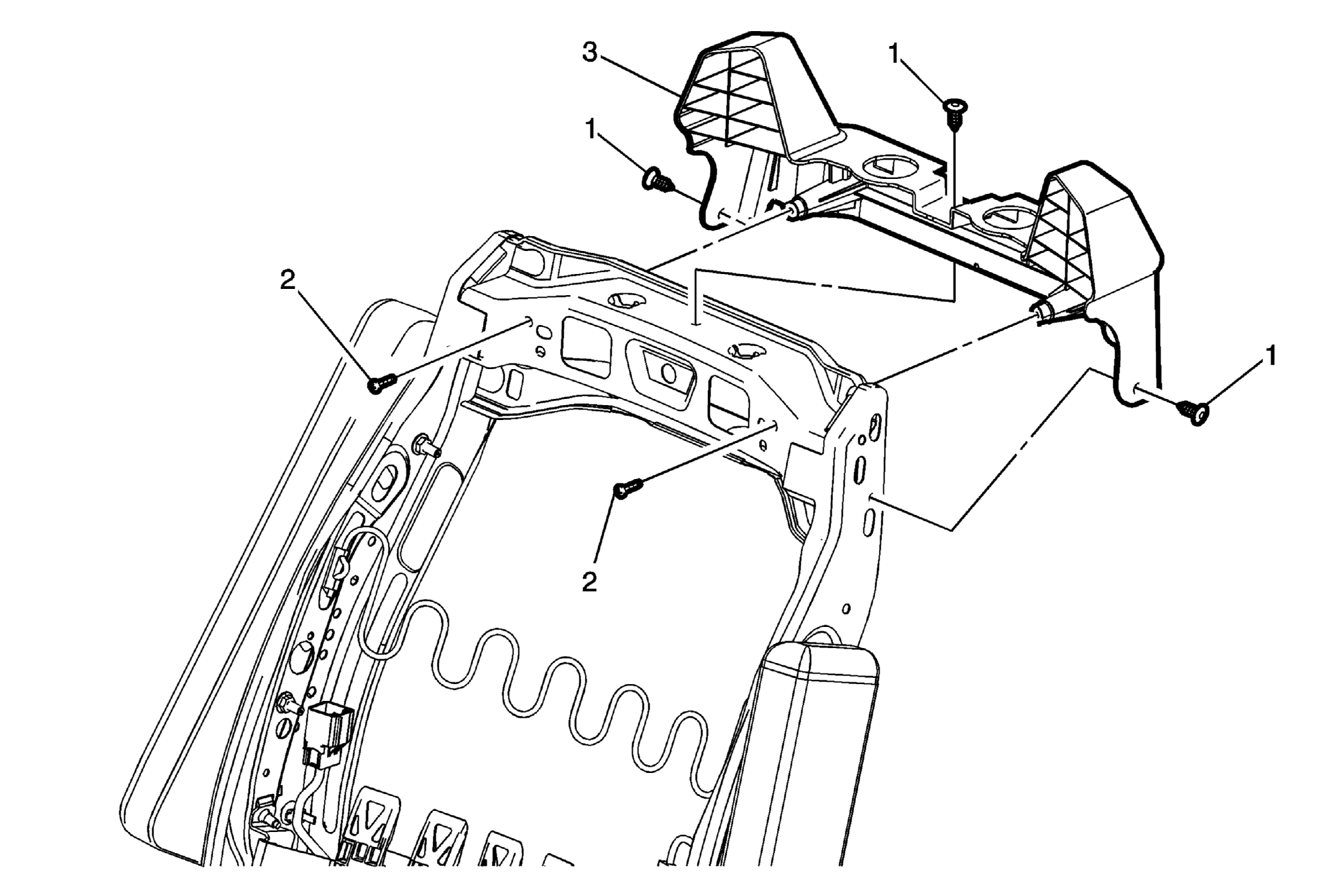

Fig 1: Driver or Passenger Seat Back Cushion Pad Support
GM2876829Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front seat back cushion cover and pad. Refer to Front Seat Back Cushion Cover and Cushion Pad Replacement .
1 Front Seat Back Cushion Support Assembly Retainer (Qty: 3)
2 Front Seat Back Cushion Support Assembly Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
3 Front Seat Back Cushion Support Assembly
