3rd Row Seat Riser Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

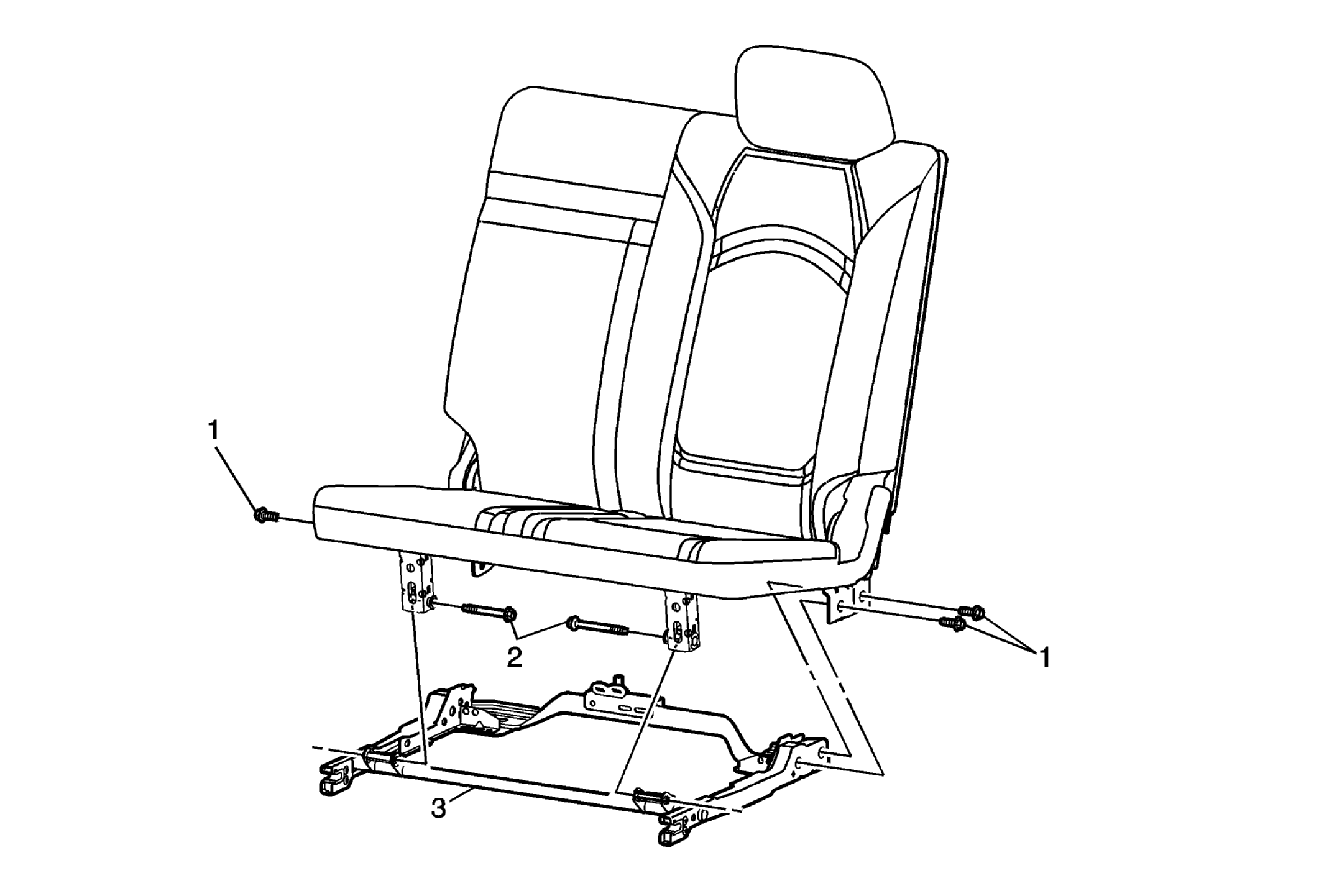

Fig 1: 3rd Row Seat Riser

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat No. 2 assembly. Refer to 3rd Row Seat Removal and Installation . Remove the rear seat No. 2 center belt assembly. Refer to 3rd Row Seat Buckle Side Belt Replacement (40%)3rd Row Seat Buckle Side Belt Replacement (60%) . Remove the rear seat No. 2 center buckle assembly. Refer to 3rd Row Seat Buckle Side Belt Replacement (40%)3rd Row Seat Buckle Side Belt Replacement (60%) .
1	Rear Seat No. 2 Riser Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 55 N.m (41 lb ft)
2	Rear Seat No. 2 Hinge Bolt (Qty: 2) Tighten 10 N.m (89 lb in)
3	Rear Seat No. 2 Riser Assembly Procedure Disconnect the cables from the seat riser.
