3rd Row Seat Back Latch Release Handle Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

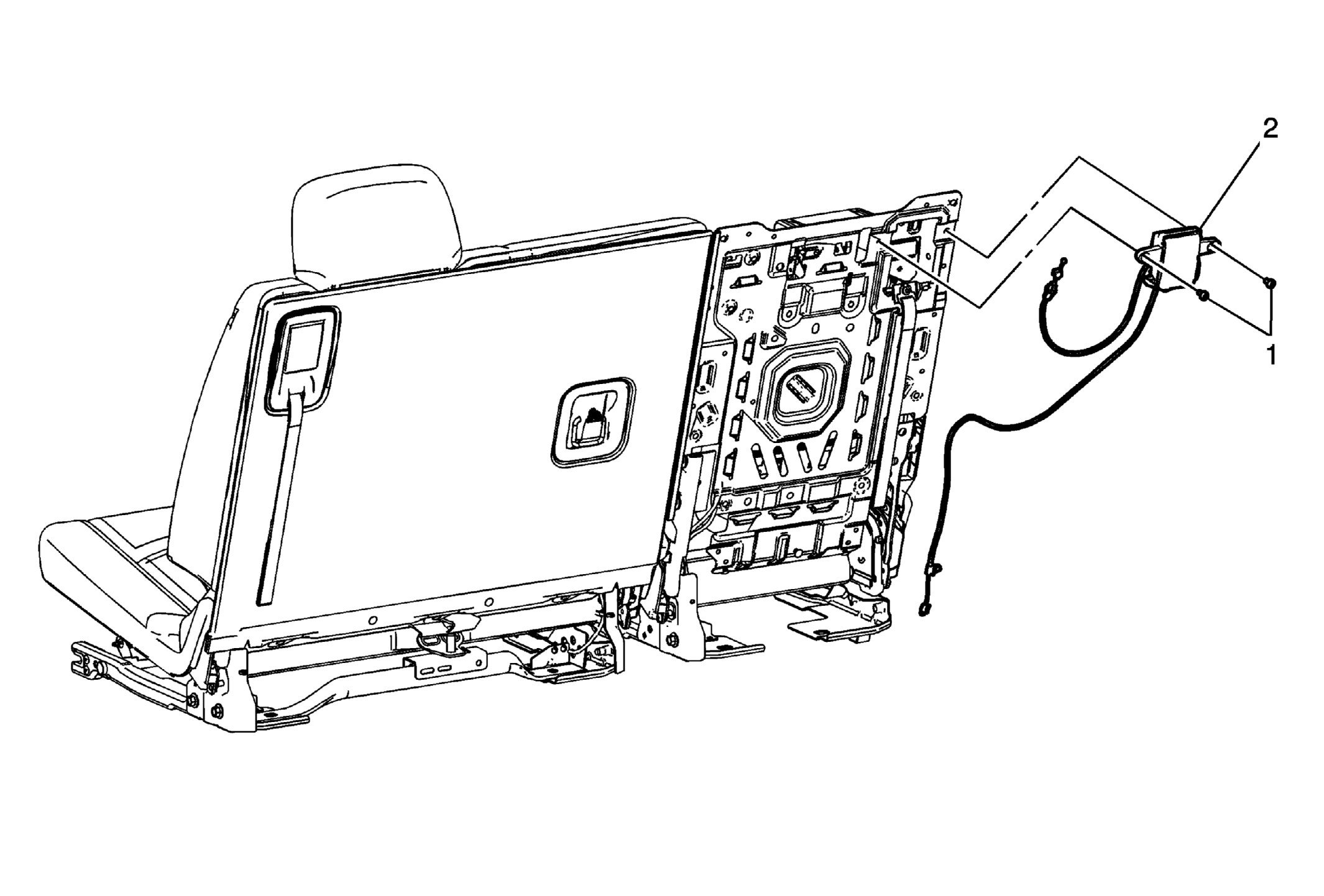

Fig 1: 3rd Row Seat Back Latch Release Handle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat No. 2 back cushion cover and pad. Refer to 3rd Row Seat Back Cover and Pad Replacement . Remove the rear seat No. 2 cushion cover and pad. Refer to 3rd Row Seat Cushion Cover and Pad Replacement .
1	Rear Seat No. 2 Back Cushion Latch Release Handle Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Rear Seat No. 2 Back Cushion Latch Release Handle Procedure Note the routing of the cables for installation. Disconnect the cables from the head restraint and seat latch.

Callout

Component Name

Preliminary Procedures

Remove the rear seat No. 2 back cushion cover and pad. Refer to 3rd Row Seat Back Cover and Pad Replacement .
Remove the rear seat No. 2 cushion cover and pad. Refer to 3rd Row Seat Cushion Cover and Pad Replacement .

Rear Seat No. 2 Back Cushion Latch Release Handle Screw (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
4 N.m (35 lb in)

Rear Seat No. 2 Back Cushion Latch Release Handle

Procedure

Note the routing of the cables for installation.
Disconnect the cables from the head restraint and seat latch.
