3rd Row Seat Back Frame Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

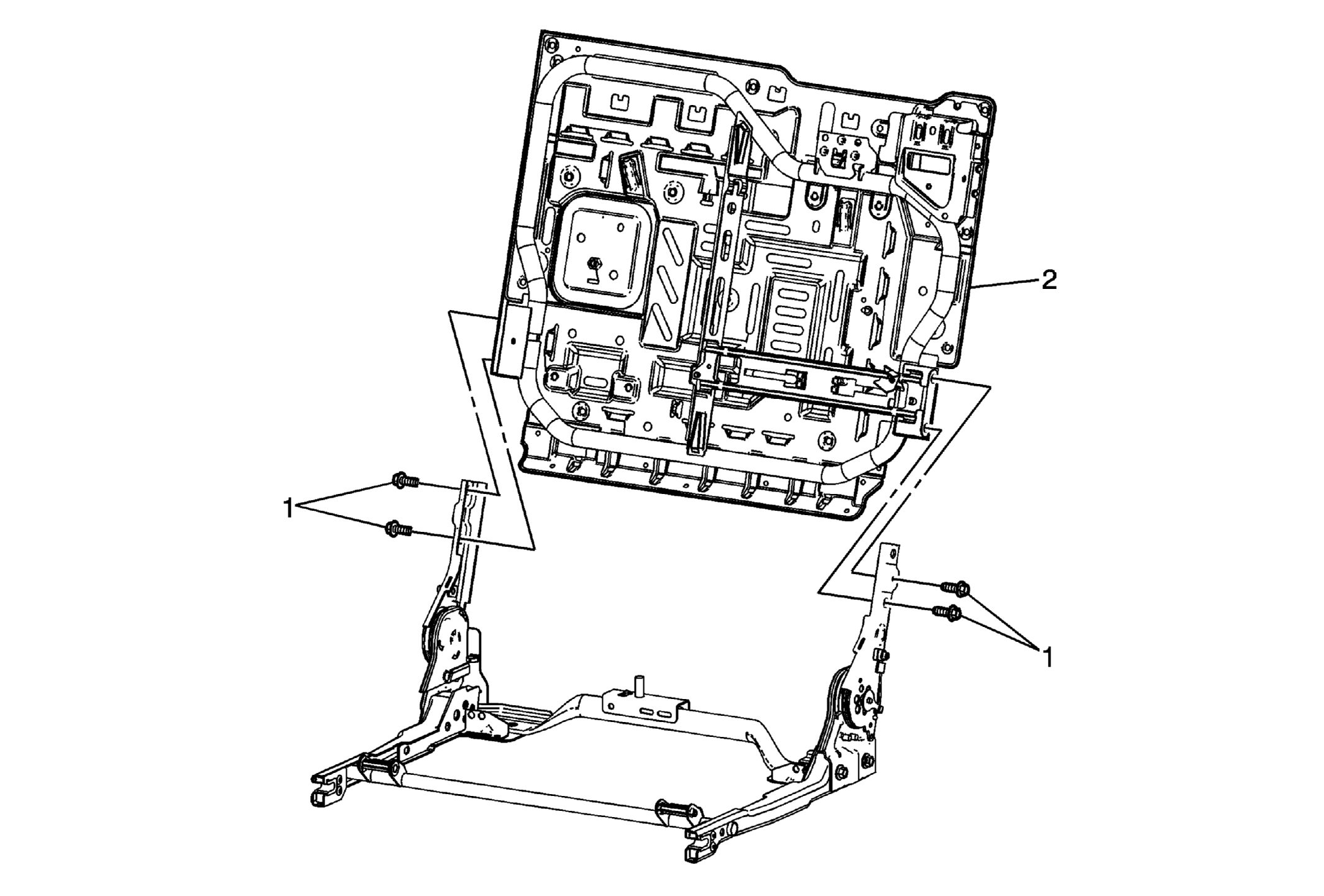

Fig 1: 3rd Row Seat Back Frame
GM1831400Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the rear seat No. 2 back cushion cover and pad. Refer to 3rd Row Seat Back Cover and Pad Replacement .
  2. Remove the rear seat No. 2 cushion cover and pad. Refer to 3rd Row Seat Cushion Cover and Pad Replacement .
1 Rear Seat No. 2 Back Cushion Frame Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
55 N.m (41 lb ft)
2 Rear Seat No. 2 Back Cushion Frame
