Rear Seat Belt Buckle Replacement (40%)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

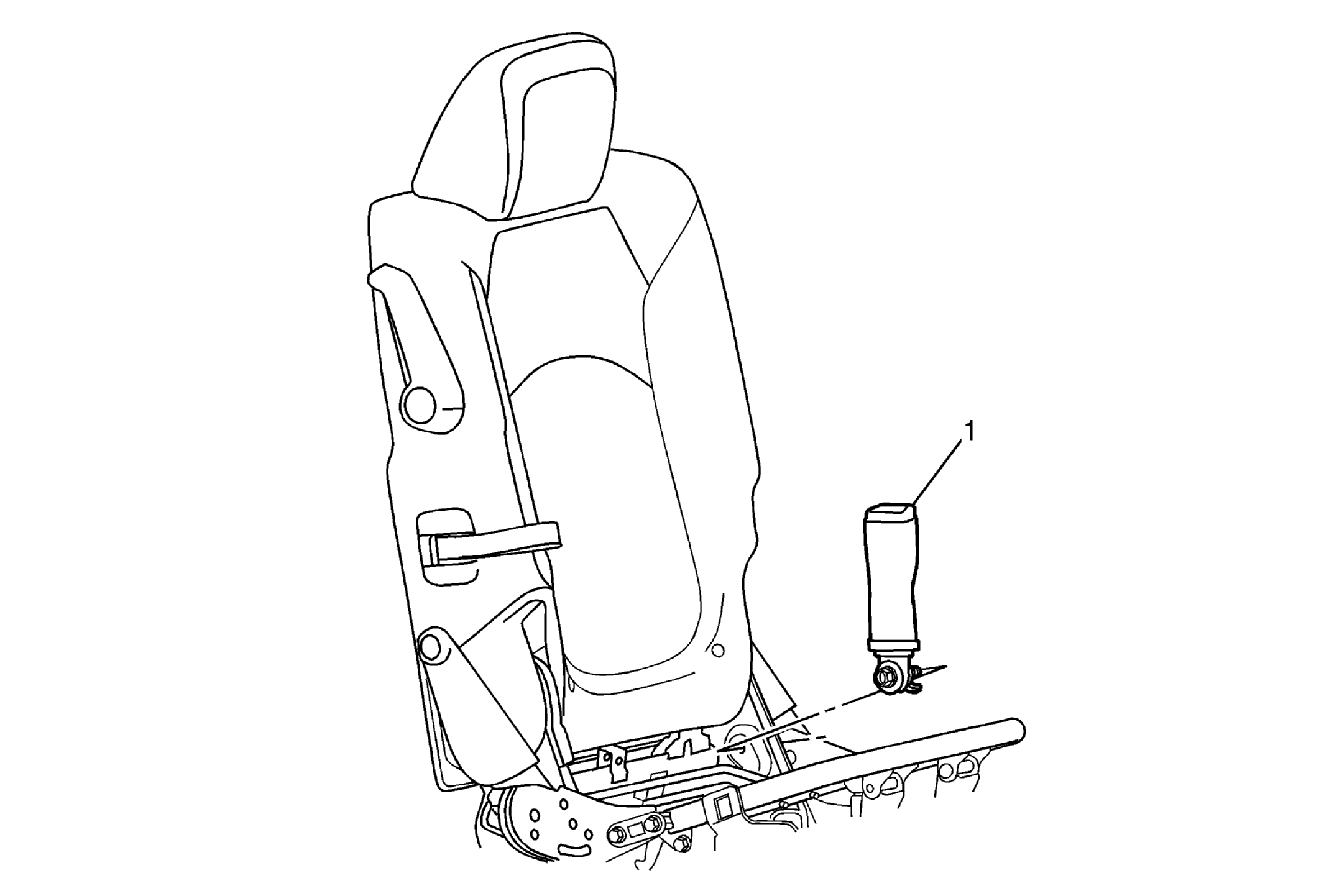

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement (40%) |
|
| 1 | Passenger Seat Belt Buckle
CAUTION:
Refer to Fastener Caution . TIP: Seat belt buckle and bolt are serviced as a assembly. Tighten 53 N.m (39 lb ft) |
