Rear Side Door Window Reveal Molding Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

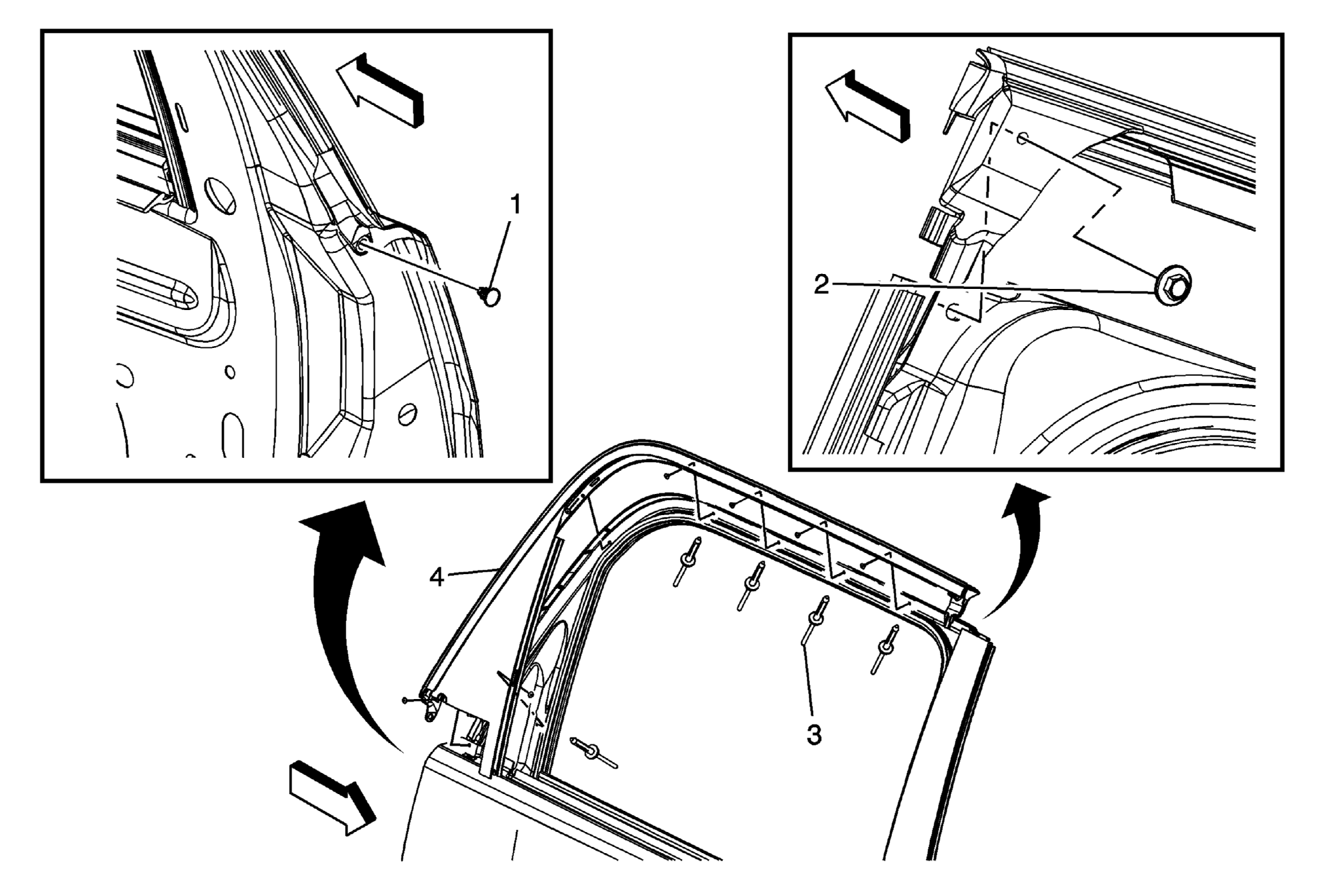

Fig 1: Identifying Rear Side Door Window Reveal Molding

Courtesy of GENERAL MOTORS COMPANY

Callouts	Component Name
Preliminary Procedures Remove the rear side door window outer sealing strip. Refer to Rear Side Door Window Outer Sealing Strip Replacement (Acadia/Traverse) Rear Side Door Window Outer Sealing Strip Replacement (Enclave) . Remove the rear side door window inner weatherstrip. Refer to Rear Side Door Window Inner Weatherstrip Replacement (Acadia/Traverse) . Remove the rear side door window channel. Refer to Rear Side Door Window Channel Replacement (Acadia/Traverse) .
1	Rear Side Door Window Reveal Molding Lower Screw CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Rear Side Door Window Reveal Molding Upper Screw NOTE: Replace the clip if damaged, transfer the clip to the new part.
3	Rear Side Door Window Upper Reveal Molding Rivets (Qty: 6)
4	Rear Side Door Window Upper Reveal Molding
