Rear Side Door Window Outer Sealing Strip Replacement (Enclave)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

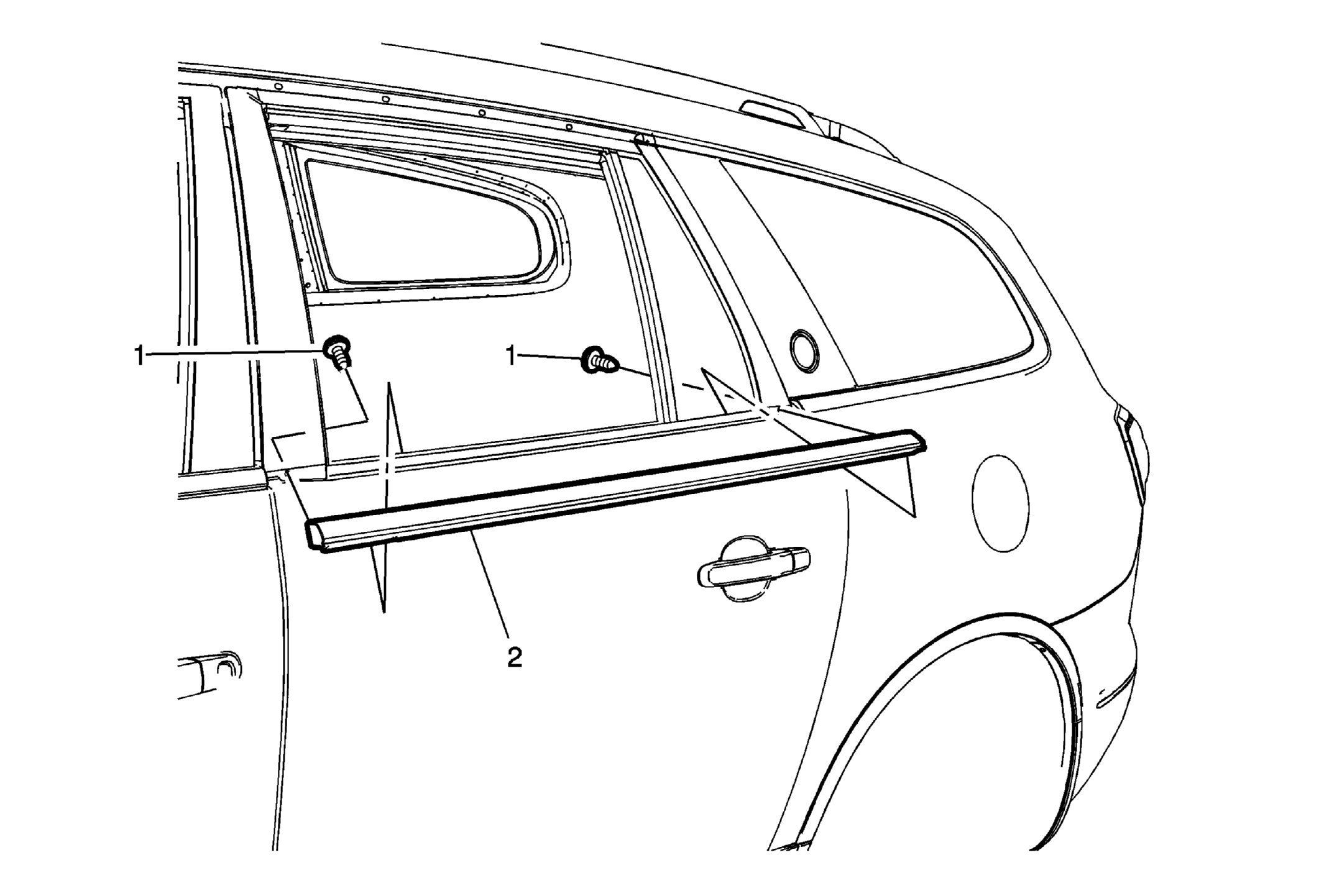

Fig 1: Rear Side Door Window Outer Sealing Strip (Enclave)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Outer Sealing Strip Screws (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Rear Side Door Outer Sealing Strip Procedure Remove by lifting up on sealing strip starting at the rear of the door working forward. When re-installing, align outer sealing strip with hole in door frame. Place the sealing strip on the pinch weld flange, push downward until fully seated, install the screws.

Callout

Component Name

Rear Side Door Outer Sealing Strip Screws (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
1.5 N.m (13 lb in)

Rear Side Door Outer Sealing Strip

Procedure

Remove by lifting up on sealing strip starting at the rear of the door working forward.
When re-installing, align outer sealing strip with hole in door frame.
Place the sealing strip on the pinch weld flange, push downward until fully seated, install the screws.
