Rear Side Door Window Frame Rear Applique Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

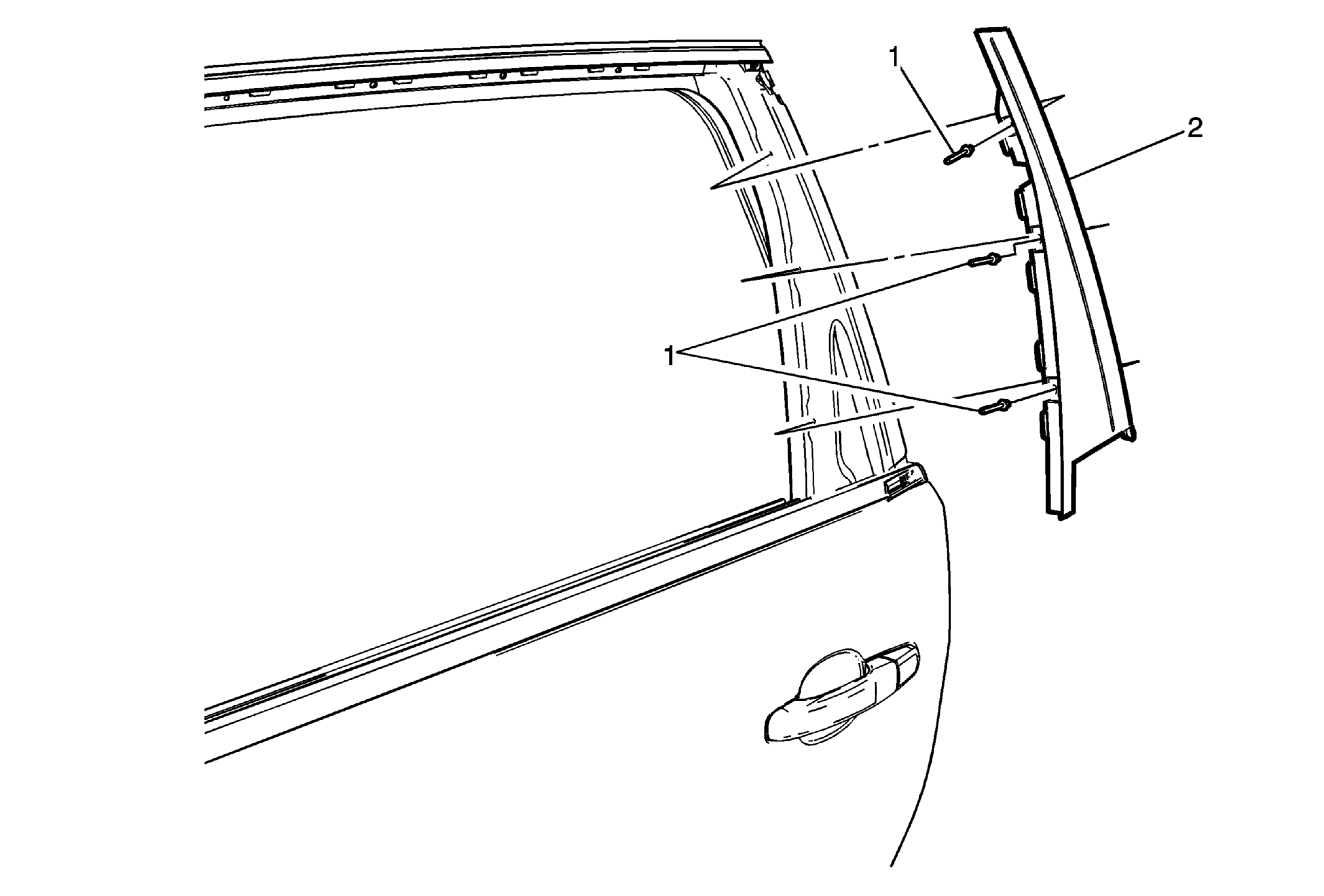

Fig 1: Rear Side Door Window Frame Rear Applique

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door window outer sealing strip. Refer to Rear Side Door Window Outer Sealing Strip Replacement (Acadia/Traverse) Rear Side Door Window Outer Sealing Strip Replacement (Enclave) .
1	Rear Side Door Window Frame Rear Applique Fastener (Qty: 3) WARNING: Refer to Glass and Sheet Metal Handling Warning Procedure Lower the window to the fully down position. Pull the rear side door window weatherstrip away from the applique to expose the rivets. When drilling cover/protect the interior trim and door from the metal shavings. Using a suitable tool, drill out the rivets from the rear door frame applique.
2	Rear Side Door Window Frame Rear Applique Procedure Use a suitable tool, install the rivets in the rear side door frame.

Callout

Component Name

Preliminary Procedure
Remove the rear side door window outer sealing strip. Refer to Rear Side Door Window Outer Sealing Strip Replacement (Acadia/Traverse) Rear Side Door Window Outer Sealing Strip Replacement (Enclave) .

Rear Side Door Window Frame Rear Applique Fastener (Qty: 3)

WARNING:

Refer to Glass and Sheet Metal Handling Warning

Procedure

Lower the window to the fully down position.
Pull the rear side door window weatherstrip away from the applique to expose the rivets.
When drilling cover/protect the interior trim and door from the metal shavings.
Using a suitable tool, drill out the rivets from the rear door frame applique.

Rear Side Door Window Frame Rear Applique
Procedure
Use a suitable tool, install the rivets in the rear side door frame.
