Rear Side Door Stationary Window Replacement (Enclave)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

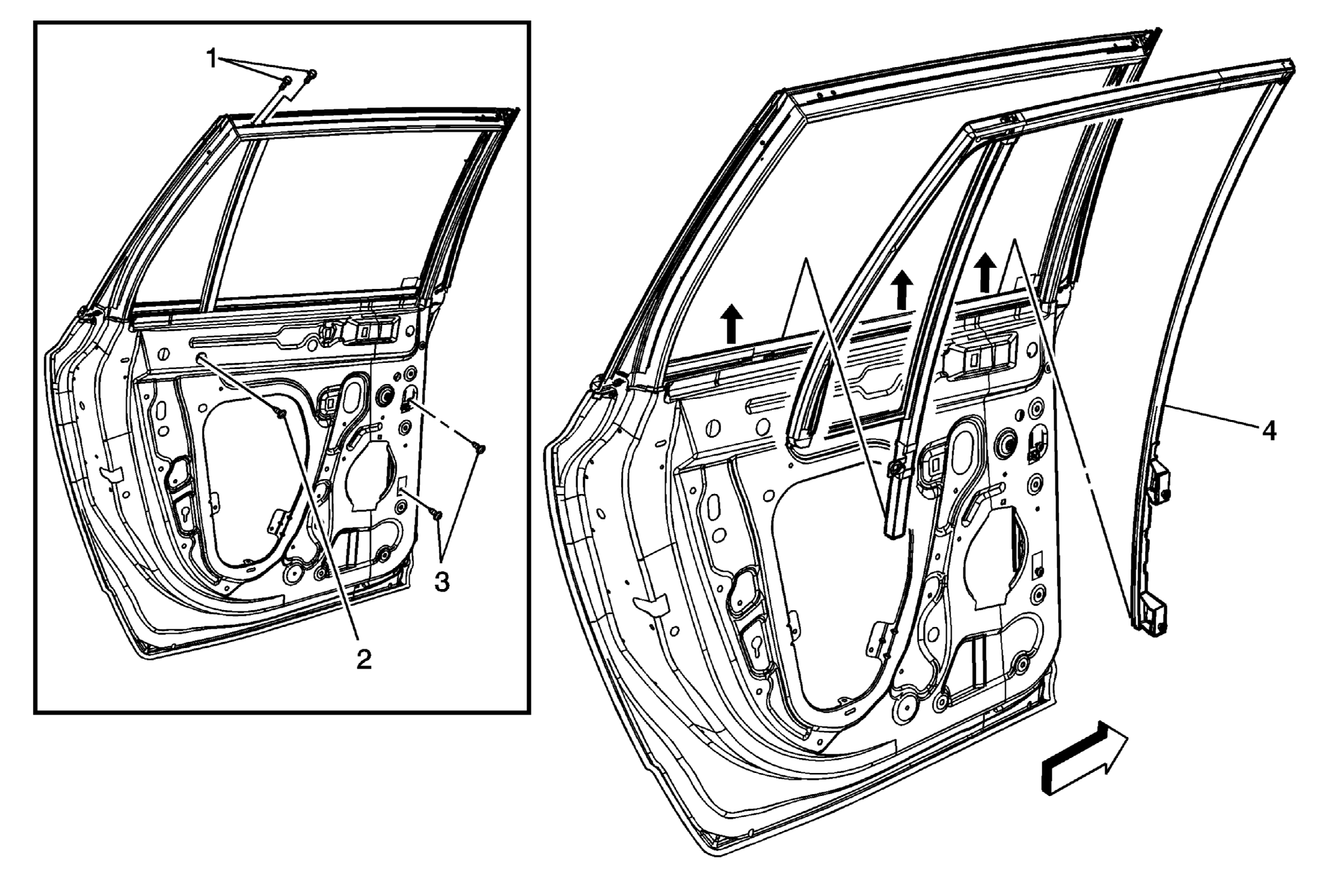

Fig 1: Rear Side Door Stationary Window (Enclave)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the trim panel. Refer to Rear Side Door Trim Panel Replacement (Enclave) . Remove the inner window belt sealing strip. Refer to Rear Side Door Window Inner Sealing Strip Replacement . Remove the outer window belt sealing strip. Refer to Rear Side Door Window Outer Sealing Strip Replacement (Enclave) . Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement . Remove the window. Refer to Rear Side Door Window Replacement .
1	Rear Side Door Stationary Window Upper Screws (Qty: 2) CAUTION: Refer to Fastener Caution . NOTE: The stationary quarter window and weatherstrip/run channel is not serviceable and should be replaced only as an assembly. Tighten 5 N.m (44 lb in)
2	Rear Side Door Stationary Window Rear Bolt Tighten 10 N.m (89 lb in)
3	Rear Side Door Stationary Window Front Bolts (Qty: 2) Tighten 10 N.m (89 lb in)
4	Rear Side Door Stationary Window Procedure When removing carefully twist the weatherstrip run channel and pull up at the top of the door frame. Press the weatherstrip/run channel into the window frame opening. Position the tabs on the weatherstrip/run channel into the slots on the door. Attach the molding to the outside of the door with double sided tape.
