Front Side Door Window Rear Channel Replacement (Acadia/Traverse)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

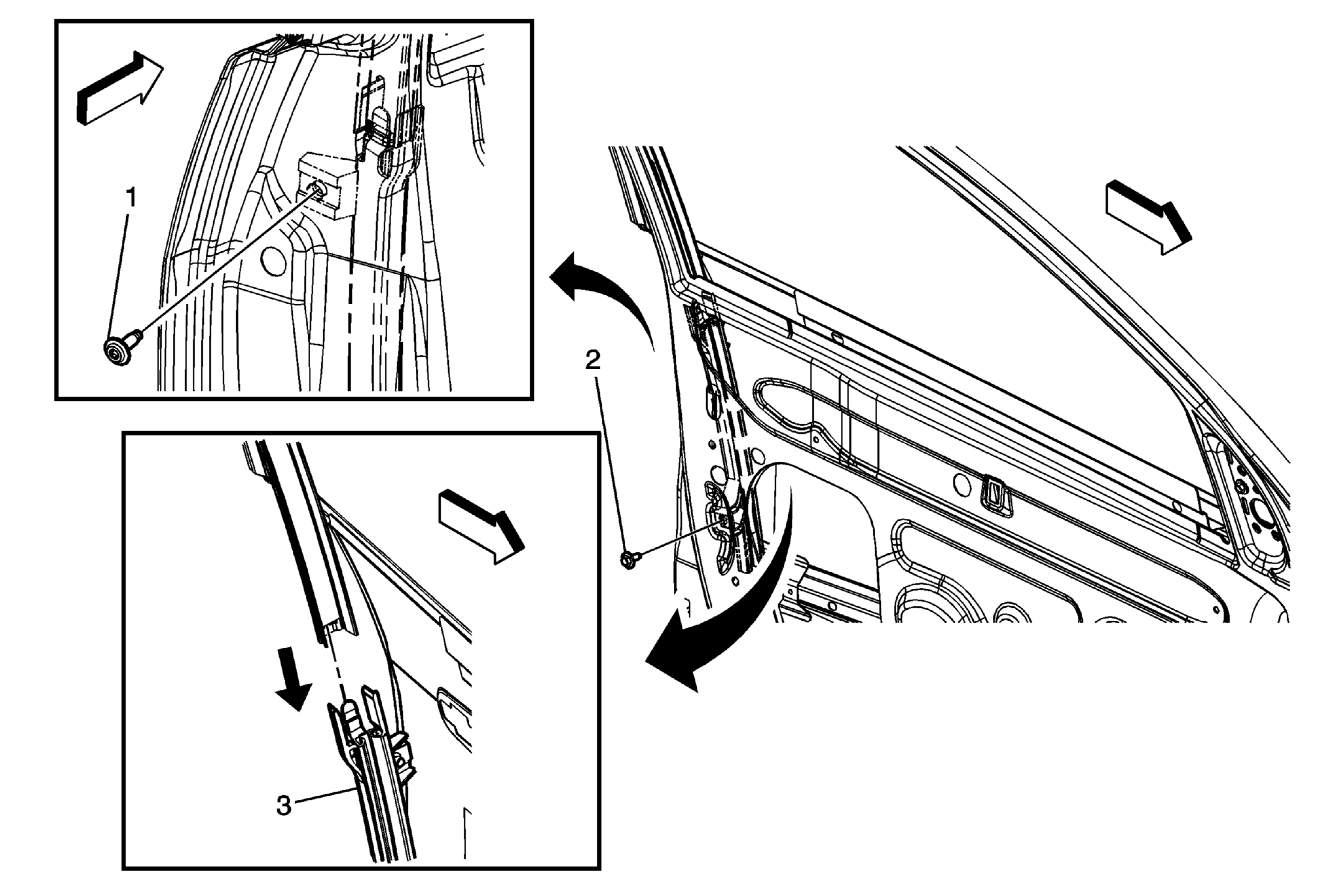

Fig 1: Front Side Door Window Rear Channel (Acadia/Traverse)
GM1843769Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement - Left Side (Acadia or Traverse) , or Front Side Door Trim Panel Replacement - Right Side (Acadia or Traverse) .
  2. Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
1 Front Side Door Window Rear Channel Upper Screw
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Front Side Door Window Rear Channel Lower Bolt
3 Front Side Door Window Rear Channel
NOTE:

Install the front side door window rear channel, ensure that the upper and lower clip together.
