Front Side Door Trim Panel Replacement - Right Side (Acadia or Traverse)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

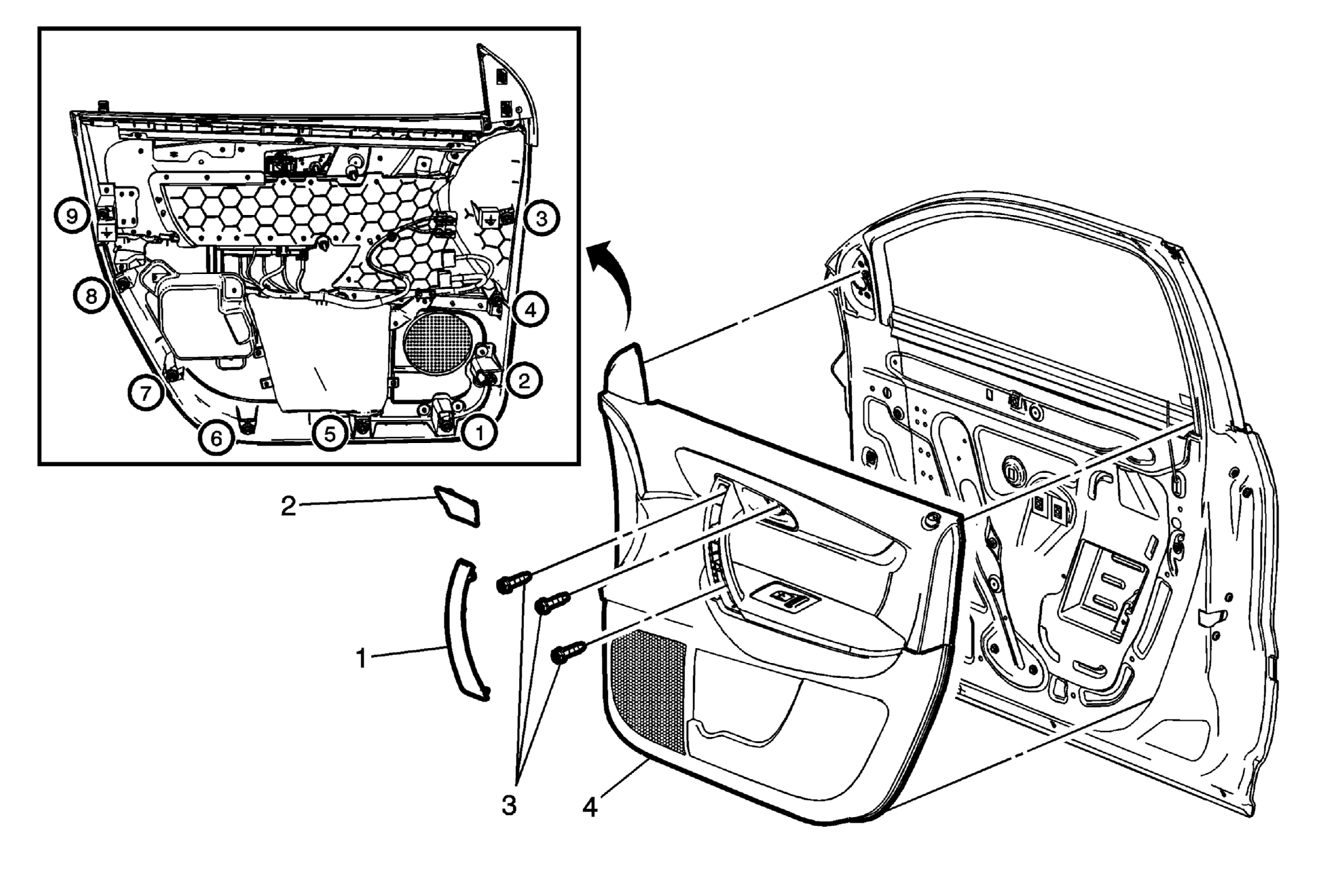

Fig 1: Front Side Door Trim Panel - Right Side (Acadia or Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Side Door Pull Handle Cover
2	Front Side Door Inside Handle Bezel Finish Cover
3	Front Side Door Trim Panel Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
4	Front Side Door Trim Panel Assembly Procedure Use a door trim pad removal tool, or equivalent, to remove the 9 door trim panel retainers in the sequence shown. Disengage the door lock cable. Disconnect the electrical connector. Transfer parts as necessary. For programming and setup information for a new door lock switch, refer to Control Module References .
