Removal Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Front Side Door Trim Panel Replacement - Left Side (Acadia or Traverse) , or Front Side Door Trim Panel Replacement - Right Side (Acadia or Traverse) .
  2. Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
  3. Remove the window. Refer to Front Side Door Window Replacement .
  4. Remove the door speaker. Refer to Radio Front Side Door Speaker Replacement .

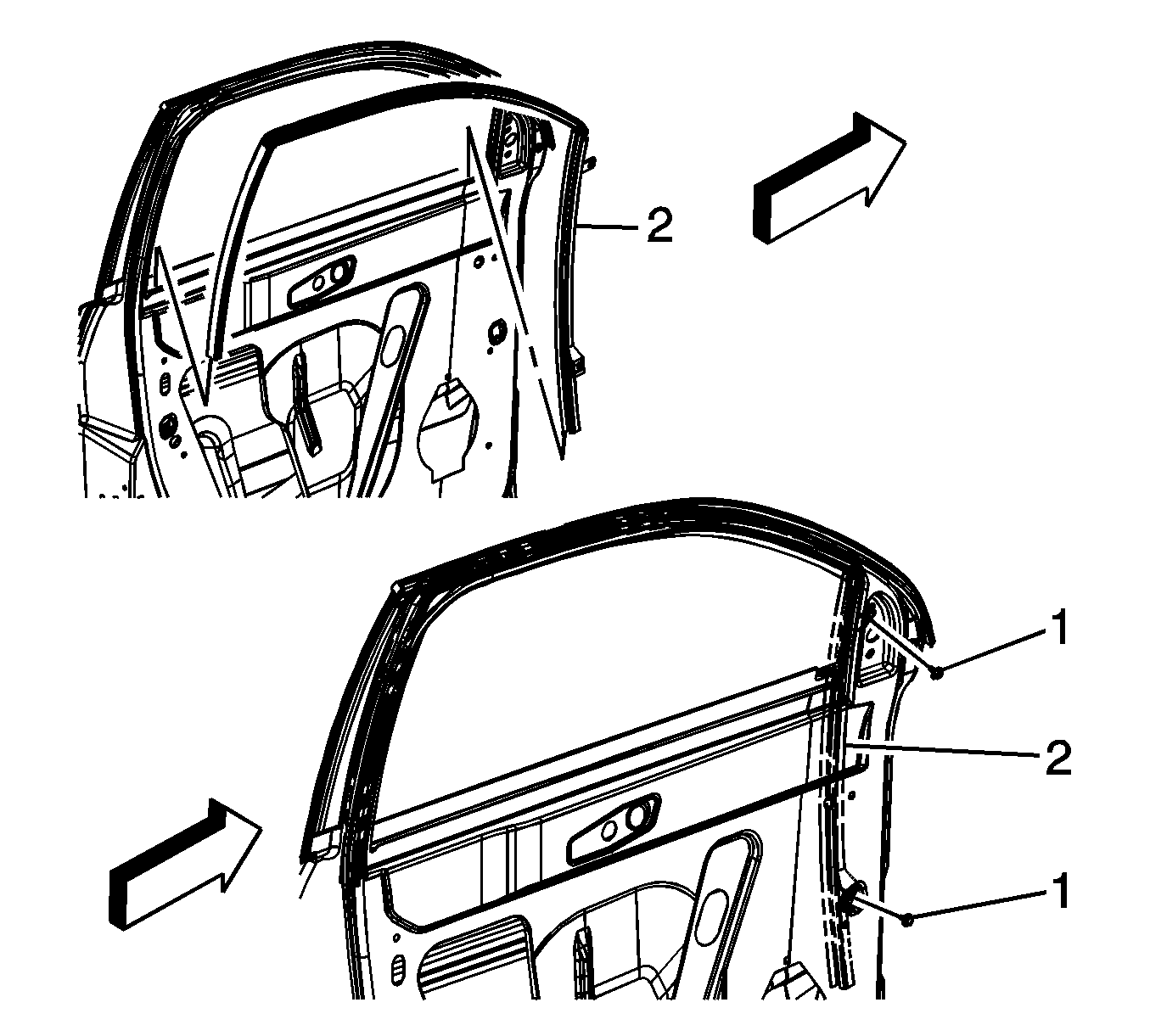

    5. Fig 1: Locating Weatherstrip/Run Channel & Bolts
    GM1843993Courtesy of GENERAL MOTORS COMPANY
  5. Remove the 2 bolts (1) that retain the weatherstrip/run channel (2) to the door.
  6. Pull the weatherstrip/run channel away from the window frame opening.
  7. Carefully twist and pull up on the weatherstrip/run channel, in order remove the weatherstrip/run channel from the top of the door frame.
  8. Remove the weatherstrip/run channel from the door.
