Removal Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the sunshade to the full open position.
  2. Remove the front sunroof window. Refer to Sunroof Window Replacement .
  3. Remove the sunshade motor/actuator. Refer to Sunroof Sunshade Motor/Actuator Replacement .
  4. Remove the sunroof frame. Refer to Sunroof Frame Replacement .
  5. Place the sunroof frame on a clean and protected surface before removing sunshade and cable/guide.

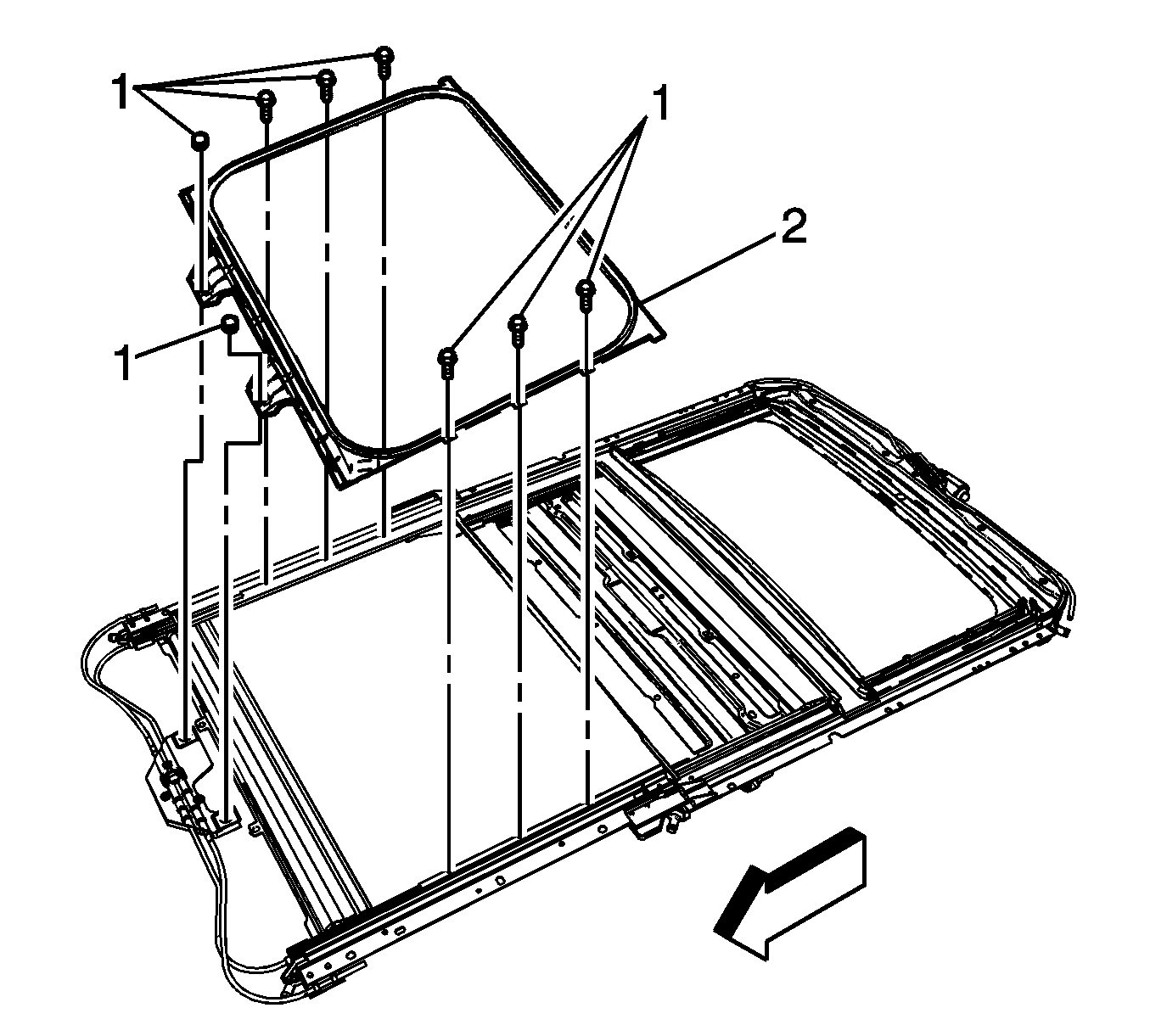

    6. Fig 1: Fixed Window Seal Frame And Screws
    GM2208330Courtesy of GENERAL MOTORS COMPANY
  6. Remove the fixed window seal frame screws (1) from the front center, left and right side.
  7. Remove the window seal and frame (2) as one from the sunroof frame.
  8. Grasping the front left and right corners of the sunshade, roll the sunshade up and lift forward releasing it from the front bar and sunshade cable/guide. Refer to Sunroof Sunshade Replacement (Front Manual) .

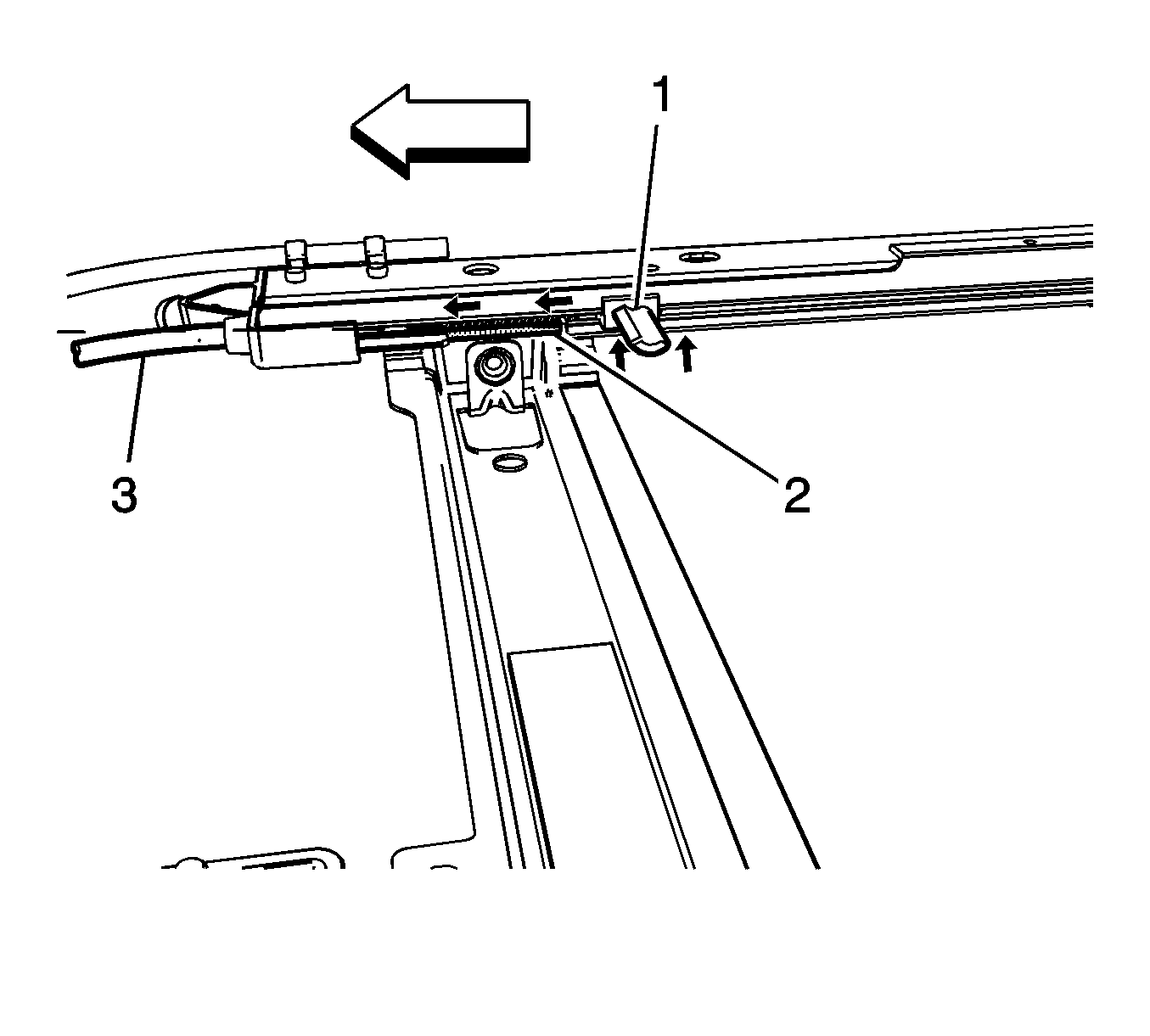

    9. Fig 2: Plastic Retaining Tab
    GM2210884Courtesy of GENERAL MOTORS COMPANY
  9. Slide the sunshade cable/guide (1) forward on the left and right side to the front stop (2).
  10. Lift upward on the end of the sunshade cable/guide (1), releasing it from the front stop (2).

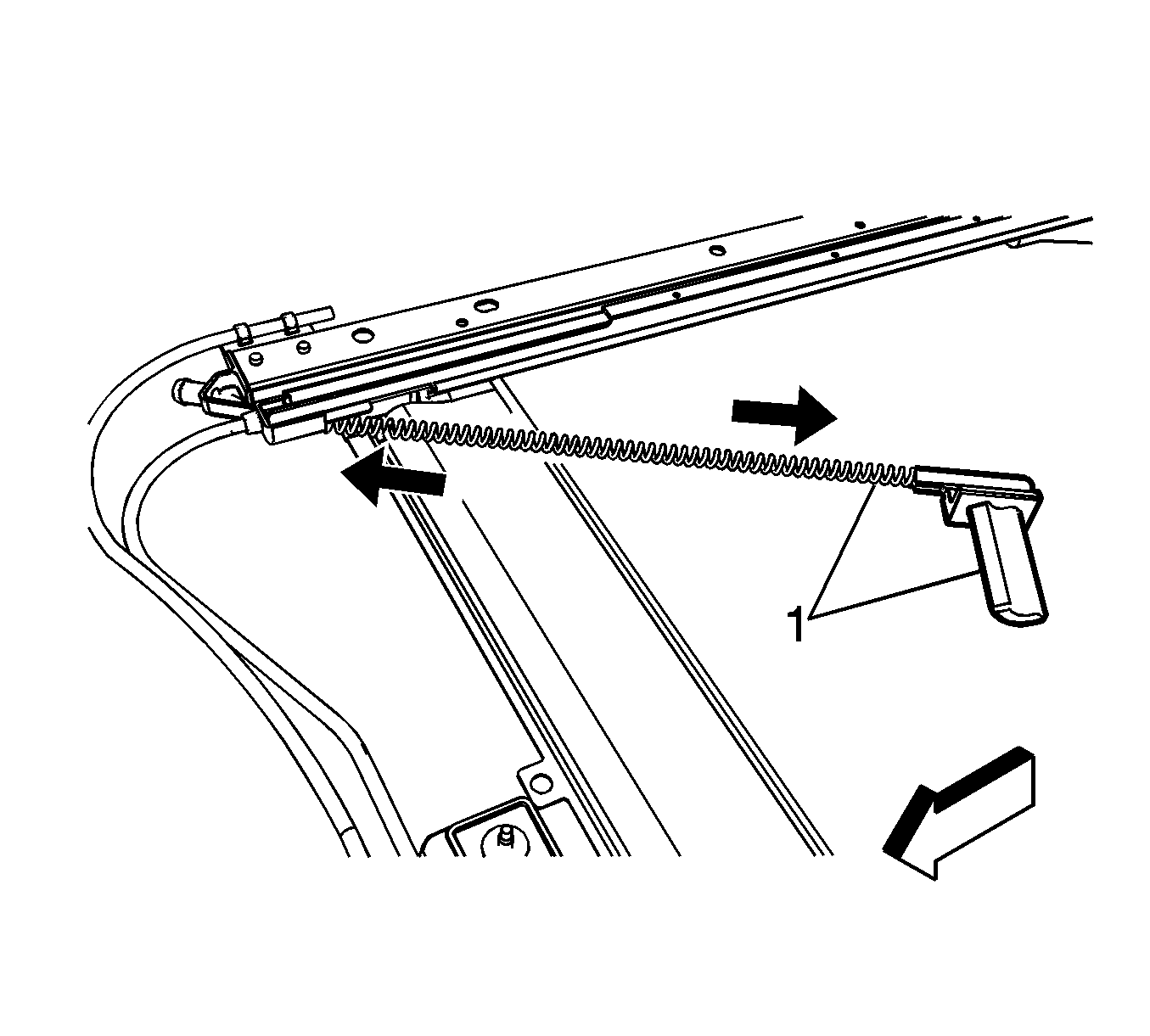

    11. Fig 3: Drive Cable (New Part)
    GM2210889Courtesy of GENERAL MOTORS COMPANY
  11. Remove cable/guide (1) from the cable tube and track.
