Sunroof Sunshade Motor/Actuator Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

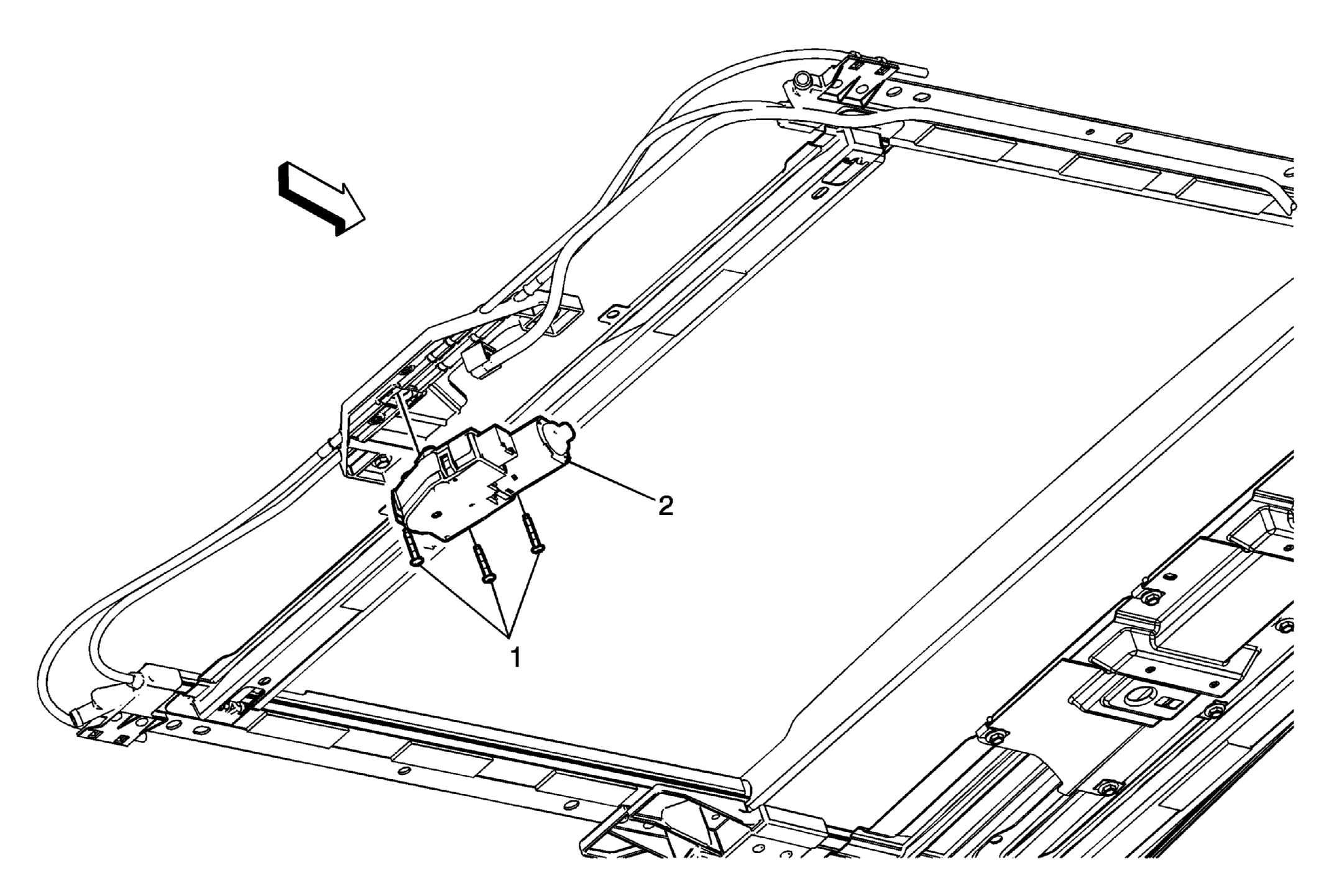

| Callout | Component Name |
|---|---|
| Preliminary Procedure It is only necessary to lower the headliner. Only do those step in headliner replacement that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement . |
|
| 1 | Sunroof Sunshade Motor/Actuator Screw (Qty: 3)
CAUTION:
Refer to Fastener Caution . Procedure Disconnect the electrical connector. TIP: When removing the sunroof motor/actuator the cables and tubes stay with the module. Tighten 3 N.m (27 lb in) |
| 2 | Sunroof Sunshade Motor/Actuator Procedure Initialization/Teach motor/actuator, refer to Sunroof Motor/Actuator Initialization/Teach Process (New Motor) Sunroof Motor/Actuator Initialization/Teach Process (New Roller Sunshade) Sunroof Motor/Actuator Initialization/Teach Process (Existing Motor) Sunroof Motor/Actuator Initialization/Teach Process (Existing Roller Sunshade) . |
