Front Floor Rear Console Trim Plate Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

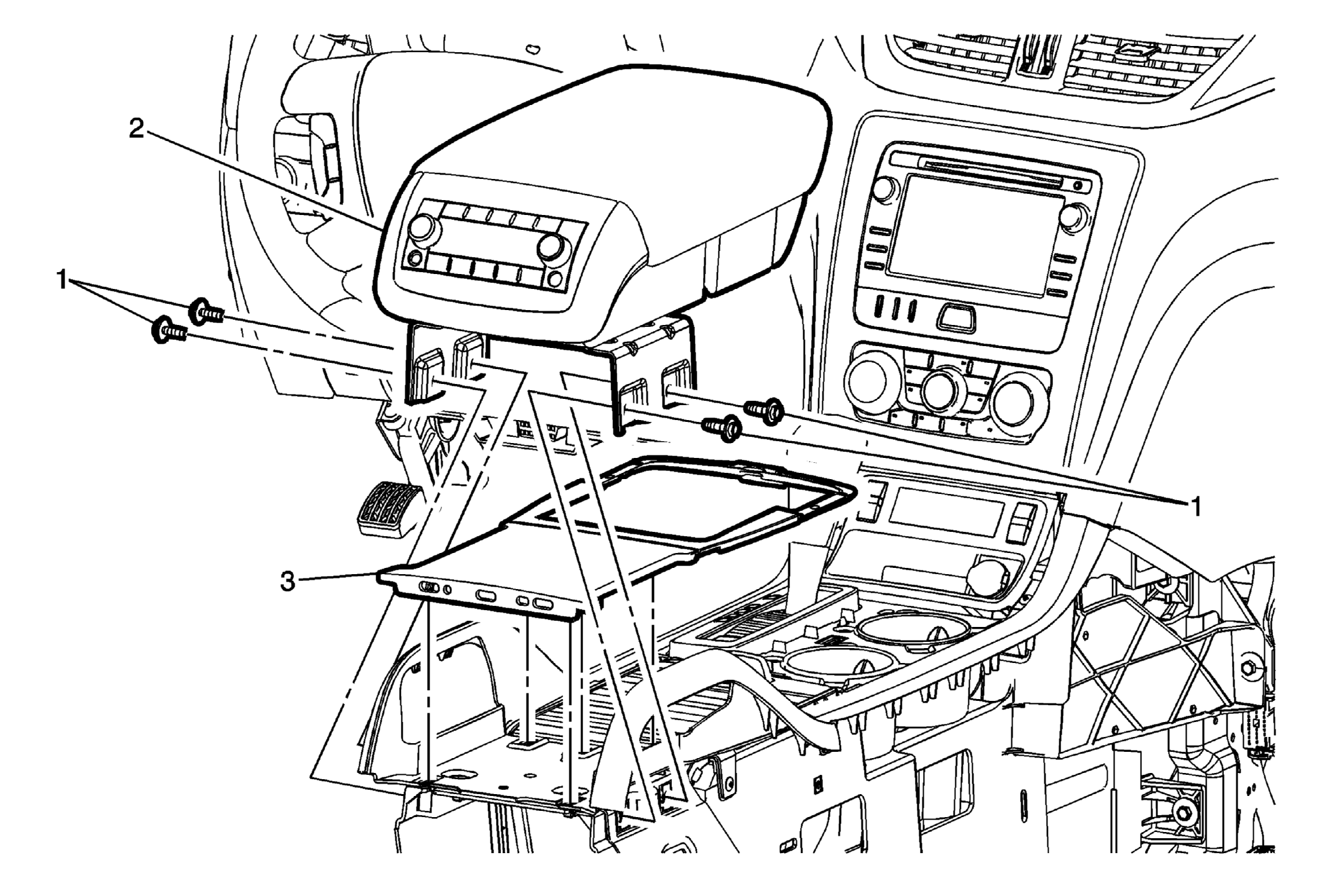

Fig 1: Front Floor Rear Console Trim Plate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front floor console accessory trim plate. Refer to Front Floor Console Accessory Trim Plate Replacement (Acadia) Front Floor Console Accessory Trim Plate Replacement (Enclave) Front Floor Console Accessory Trim Plate Replacement (Traverse) . Remove the right and left front floor console fillers. Refer to Front Floor Console Filler Replacement (Left Side) Front Floor Console Filler Replacement (Right Side) .
1	Front Floor Console Armrest Assembly Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Floor Console Armrest Assembly Procedure Position the armrest assembly out of the way leaving the electrical harness attached.
3	Front Floor Rear Console Trim Plate Procedure Lift the rear of the trim plate first, releasing the retainers securing the trim plate to the console assembly.
