Front Floor Console Filler Replacement (Right Side)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

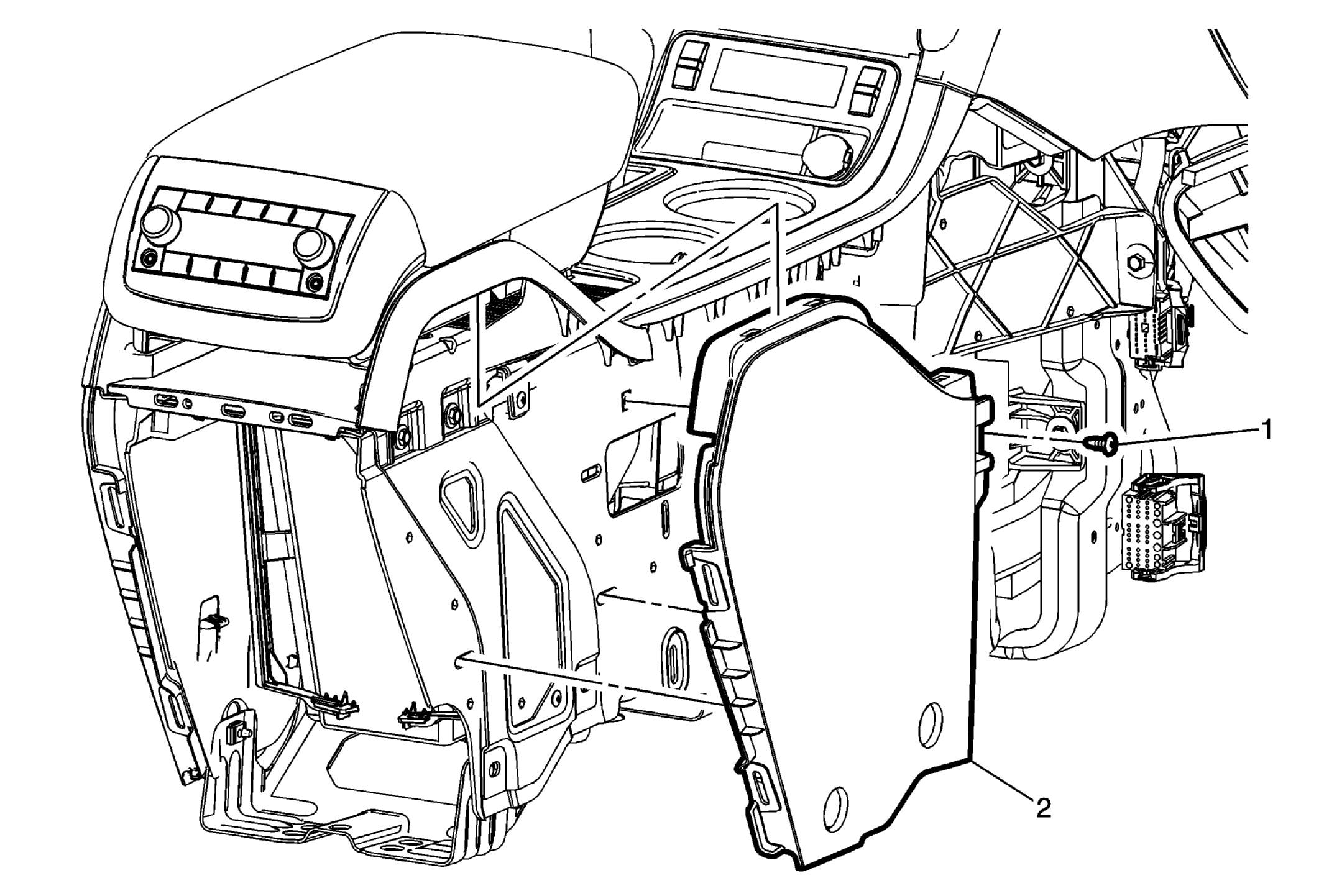

Fig 1: Front Floor Console Filler - Right Side
GM2870732Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the right front floor console extension panel. Refer to Front Floor Console Extension Panel Replacement - Right Side (Acadia) Front Floor Console Extension Panel Replacement - Right Side (Enclave) Front Floor Console Extension Panel Replacement - Right Side (Traverse) .
  2. Remove the front floor console rear trim plate. Refer to Front Floor Console Rear Trim Panel Replacement .
1 Front Floor Console Filler Screw (Qty: 1)
CAUTION:

Refer to Fastener Caution .
2 Front Floor Console Filler - Right Side
