Front Floor Console Accessory Trim Plate Applique Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

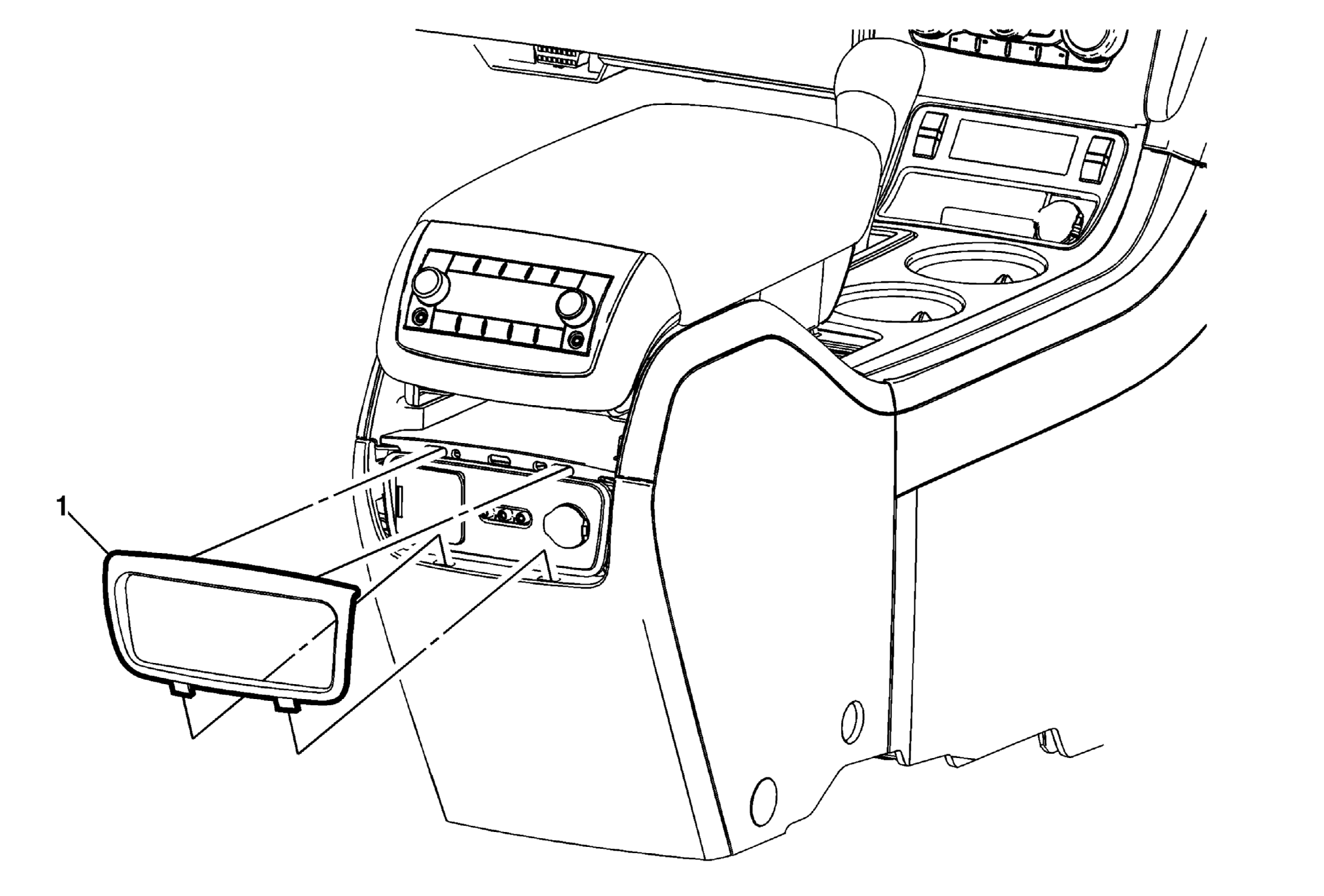

| Callout |
Component Name |
| 1 |
Front Floor Console Accessory Trim Plate Applique
Procedure
Use a flat-bladed plastic trim tool in order to release the front floor console accessory trim plate applique from the front floor console assembly. |
