Removal Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

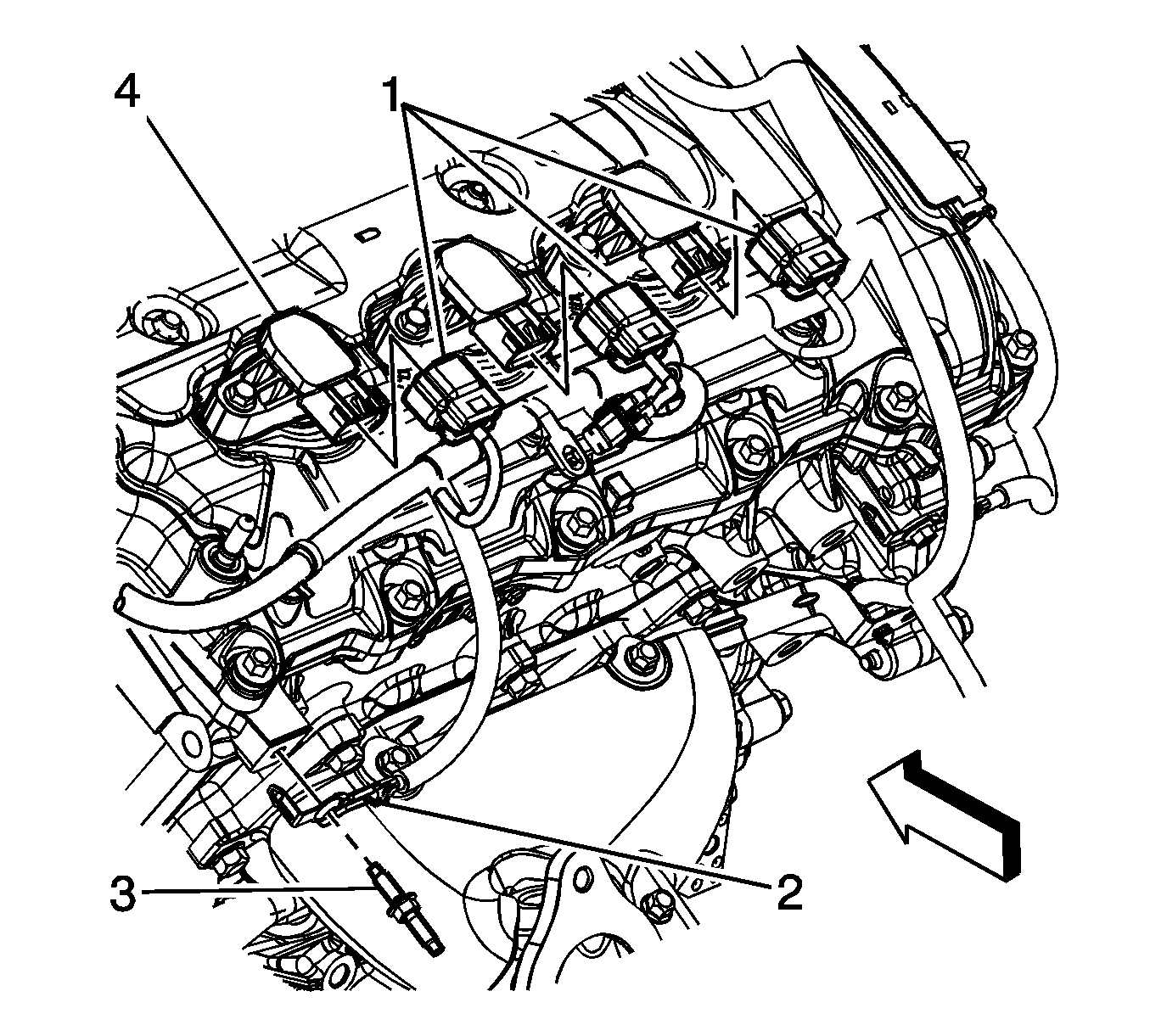

    Fig 1: View Of Ignition Coil Electrical Connector
    GM1860397Courtesy of GENERAL MOTORS COMPANY
  1. Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
  2. Disconnect the engine wiring harness electrical connector(s) (1) from the ignition coil(s) (4).
    3. Fig 2: Ignition Coil View
    GM860797Courtesy of GENERAL MOTORS COMPANY
  3. Remove the ignition coil bolt(s).
  4. Remove the ignition coil(s).
