Fuel Pipe Shield Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

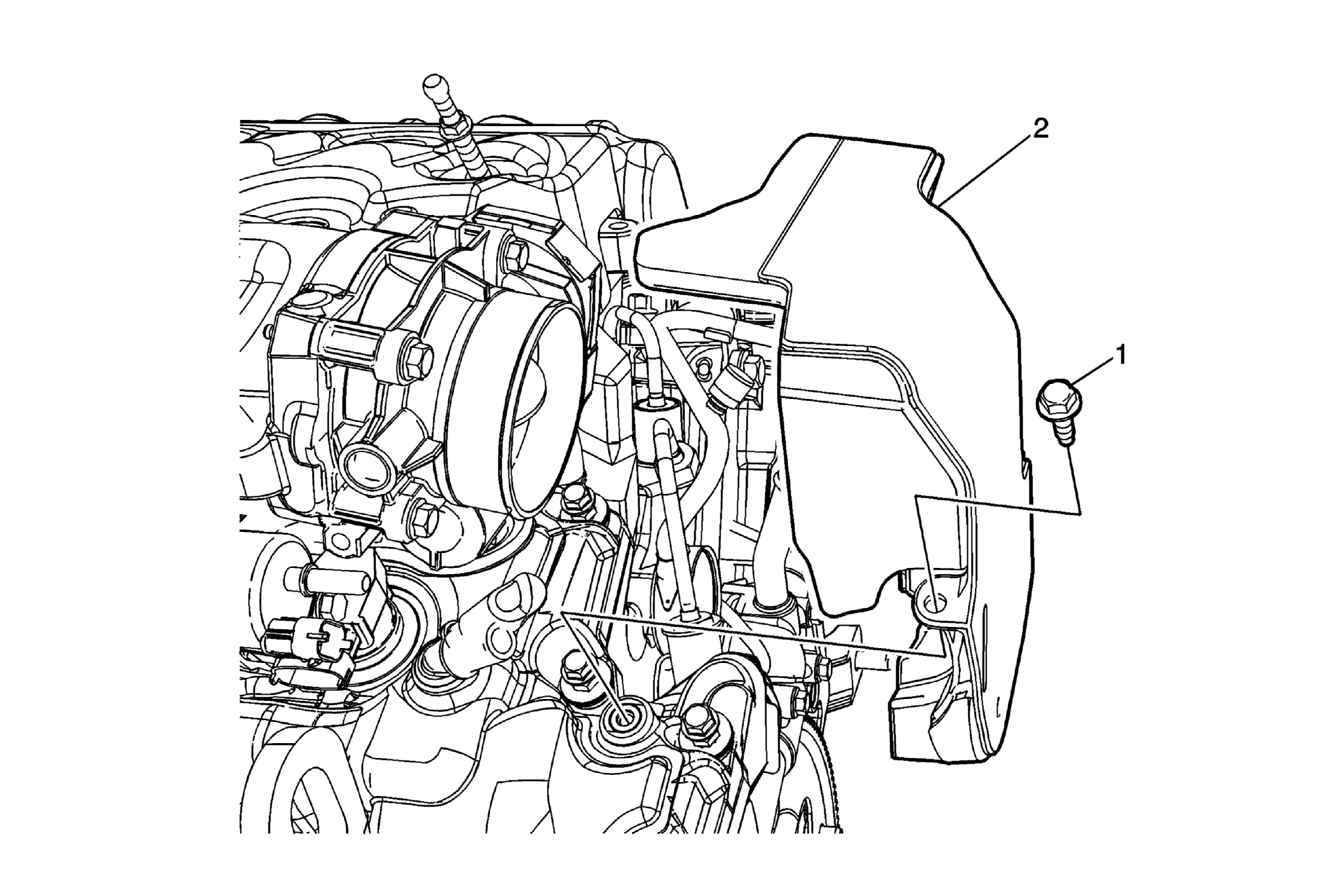

Fig 1: View Of Fuel Pipe Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the fuel injection sight shield. Refer to Fuel Injector Sight Shield Replacement . Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
1	Fuel Pump Shield Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Fuel Pump Shield

Callout

Component Name

Preliminary Procedures

Remove the fuel injection sight shield. Refer to Fuel Injector Sight Shield Replacement .
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .

Fuel Pump Shield Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Fuel Pump Shield
