Evaporative Emission Canister Vent Solenoid Valve Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

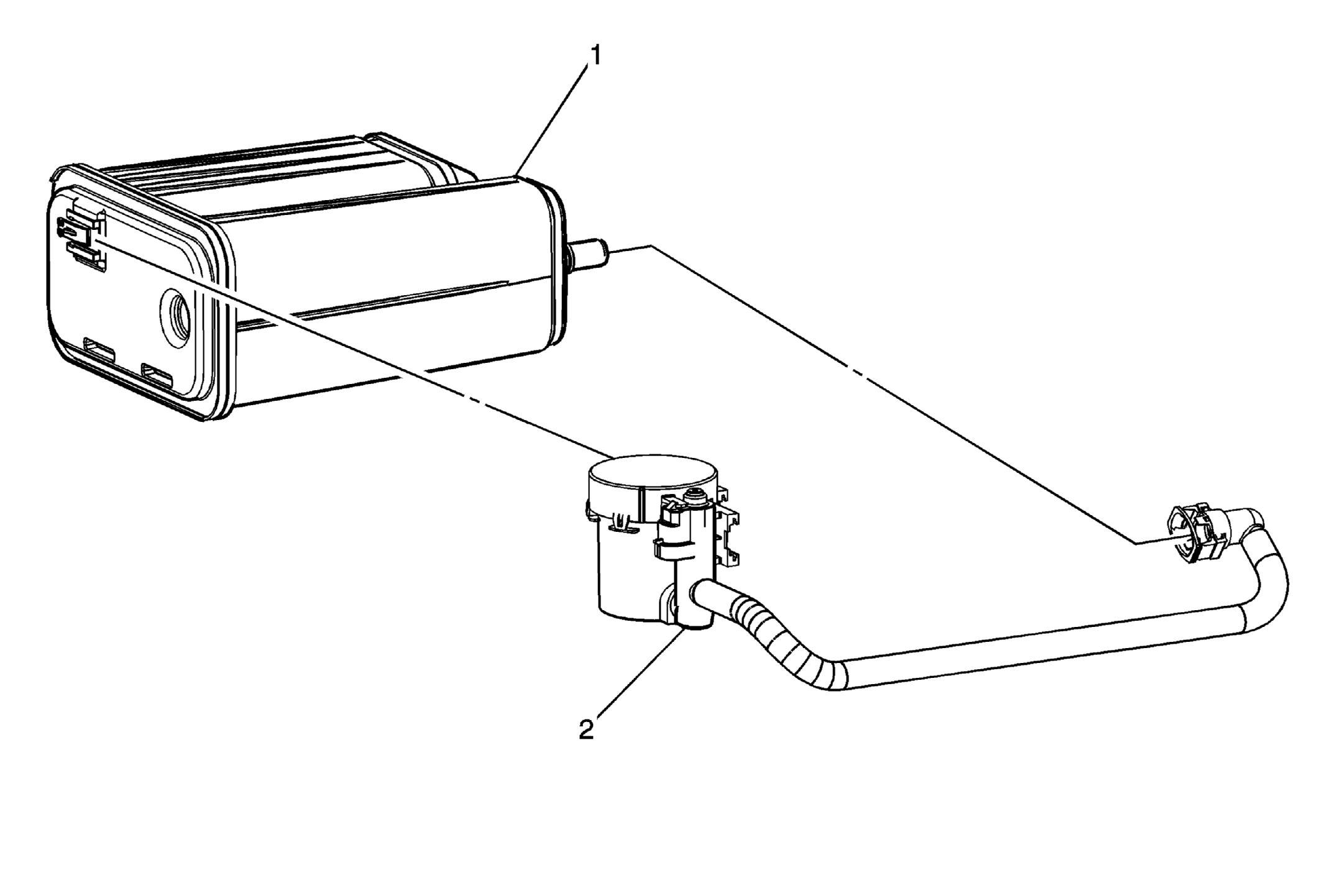

Fig 1: Identifying Evaporative Emission Canister Vent Solenoid Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the evaporative emission (EVAP) canister. Refer to Evaporative Emission Canister Replacement .
1	Evaporative Emission Canister
2	Evaporative Emission Canister Vent Solenoid Valve Hose Procedure Disconnect the quick connect fitting at the EVAP canister. Refer to Plastic Collar Quick Connect Fitting Service . Push in the retainer on the rear of the EVAP canister disengaging the vent solenoid valve.

Callout

Component Name

Preliminary Procedure
Remove the evaporative emission (EVAP) canister. Refer to Evaporative Emission Canister Replacement .

Evaporative Emission Canister

Evaporative Emission Canister Vent Solenoid Valve Hose

Procedure

Disconnect the quick connect fitting at the EVAP canister. Refer to Plastic Collar Quick Connect Fitting Service .
Push in the retainer on the rear of the EVAP canister disengaging the vent solenoid valve.
