Evaporative Emission Canister Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

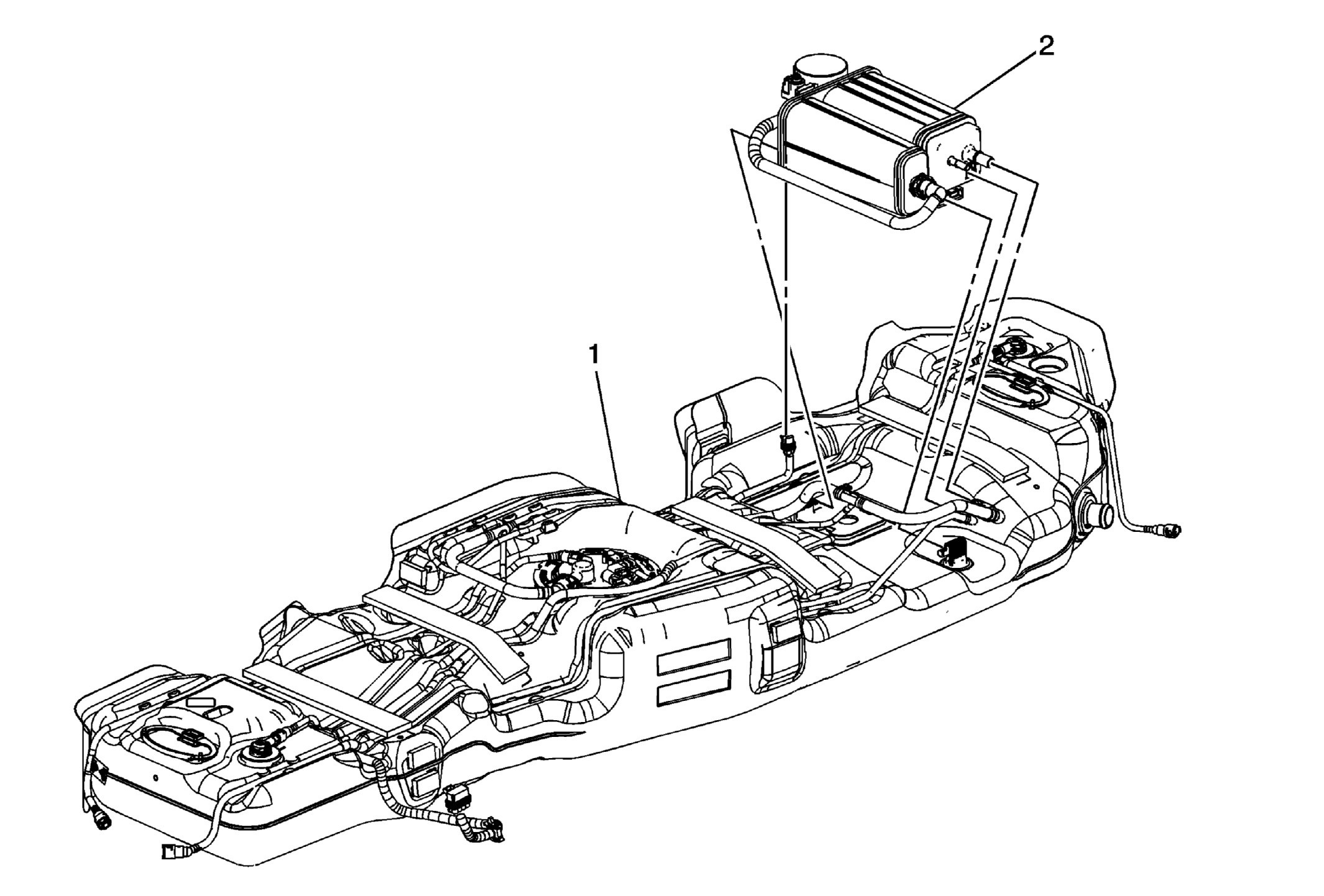

Fig 1: View Of Evaporative Emission Canister

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the fuel tank. Refer to Fuel Tank Replacement .
1	Fuel Tank
2	Evaporative Emission Canister Procedure Disconnect the fuel sender wiring harness electrical connector from the EVAP canister vent solenoid valve. Disconnect the EVAP canister vent front pipe quick connect fitting from the EVAP canister. Refer to Plastic Collar Quick Connect Fitting Service . Disconnect the EVAP canister vent rear pipe quick connect fitting from the EVAP canister. Refer to Plastic Collar Quick Connect Fitting Service . Disengage the EVAP canister retainer on the fuel tank.

Callout

Component Name

Preliminary Procedure
Remove the fuel tank. Refer to Fuel Tank Replacement .

Fuel Tank

Evaporative Emission Canister

Procedure

Disconnect the fuel sender wiring harness electrical connector from the EVAP canister vent solenoid valve.
Disconnect the EVAP canister vent front pipe quick connect fitting from the EVAP canister. Refer to Plastic Collar Quick Connect Fitting Service .
Disconnect the EVAP canister vent rear pipe quick connect fitting from the EVAP canister. Refer to Plastic Collar Quick Connect Fitting Service .
Disengage the EVAP canister retainer on the fuel tank.
