Evaporative Emission Canister Vent Rear Pipe Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

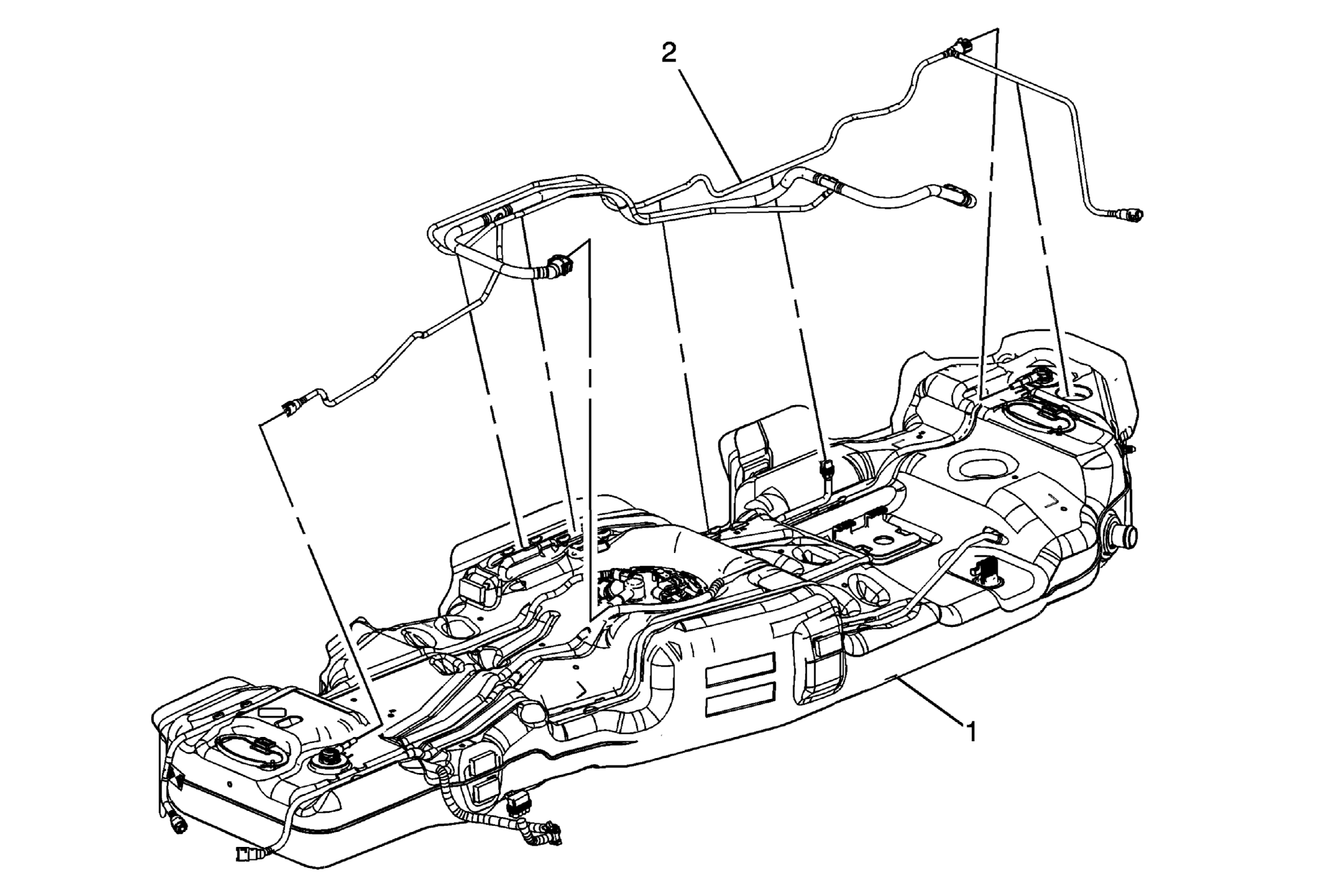

Fig 1: View Of Evaporative Emission Canister Vent Rear Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the EVAP canister. Refer to Evaporative Emission Canister Replacement . Remove the foam pad insulators.
1	Fuel Tank
2	Evaporative Emission Canister Vent Rear Pipe Procedure Disconnect the quick connect fitting from the fuel tank module. Refer to Plastic Collar Quick Connect Fitting Service . Disconnect the quick connect fittings from the rollover valves. Refer to Plastic Collar Quick Connect Fitting Service . Disengage from the tank retaining features.

Callout

Component Name

Preliminary Procedures

Remove the EVAP canister. Refer to Evaporative Emission Canister Replacement .
Remove the foam pad insulators.

Fuel Tank

Evaporative Emission Canister Vent Rear Pipe

Procedure

Disconnect the quick connect fitting from the fuel tank module. Refer to Plastic Collar Quick Connect Fitting Service .
Disconnect the quick connect fittings from the rollover valves. Refer to Plastic Collar Quick Connect Fitting Service .
Disengage from the tank retaining features.
