Installation Procedure
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
- Install the park brake pedal assembly.

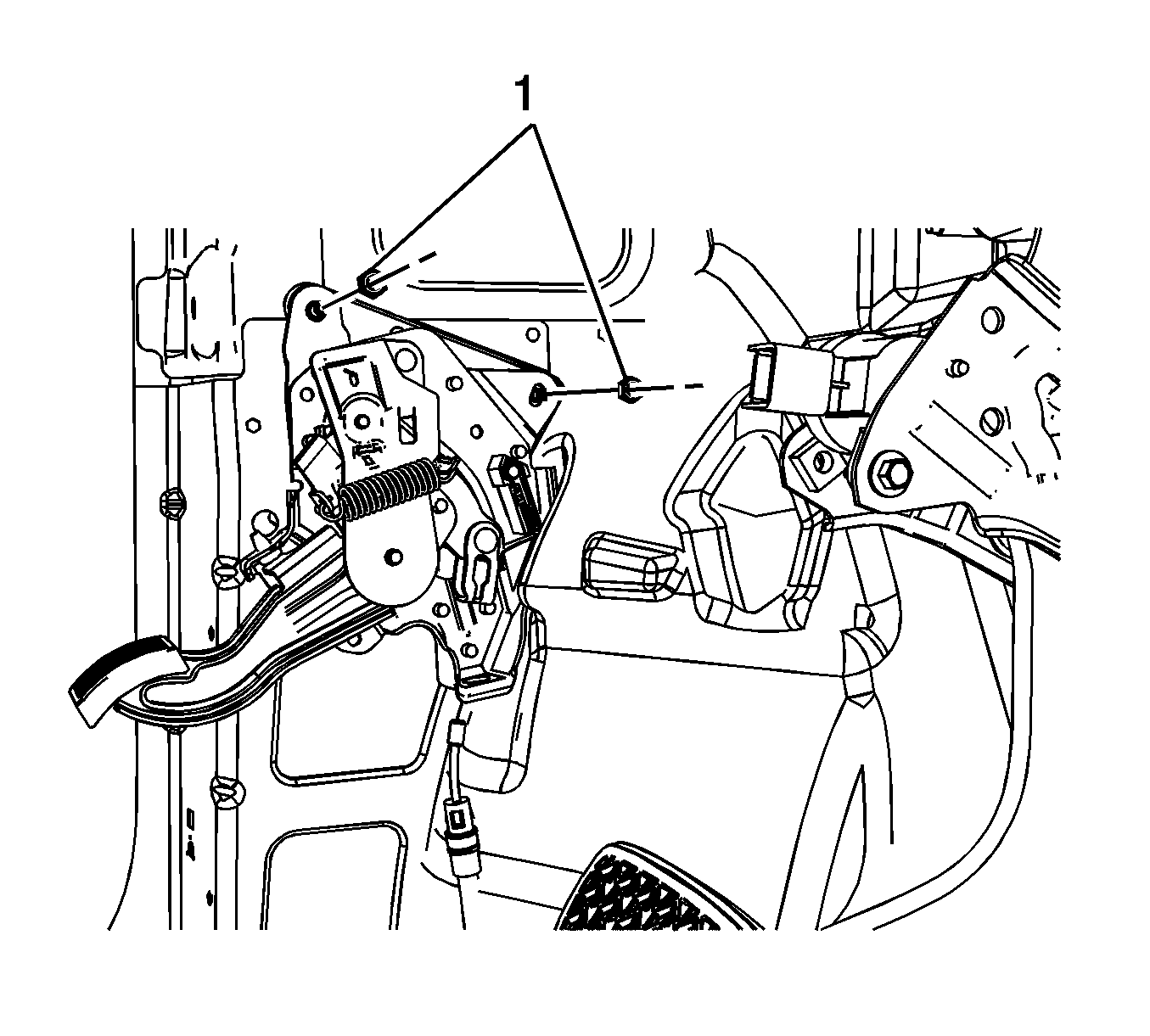

- Install the 2 upper park brake pedal nuts (1).
Tighten
Tighten the nuts to 10 N.m (89 lb in).

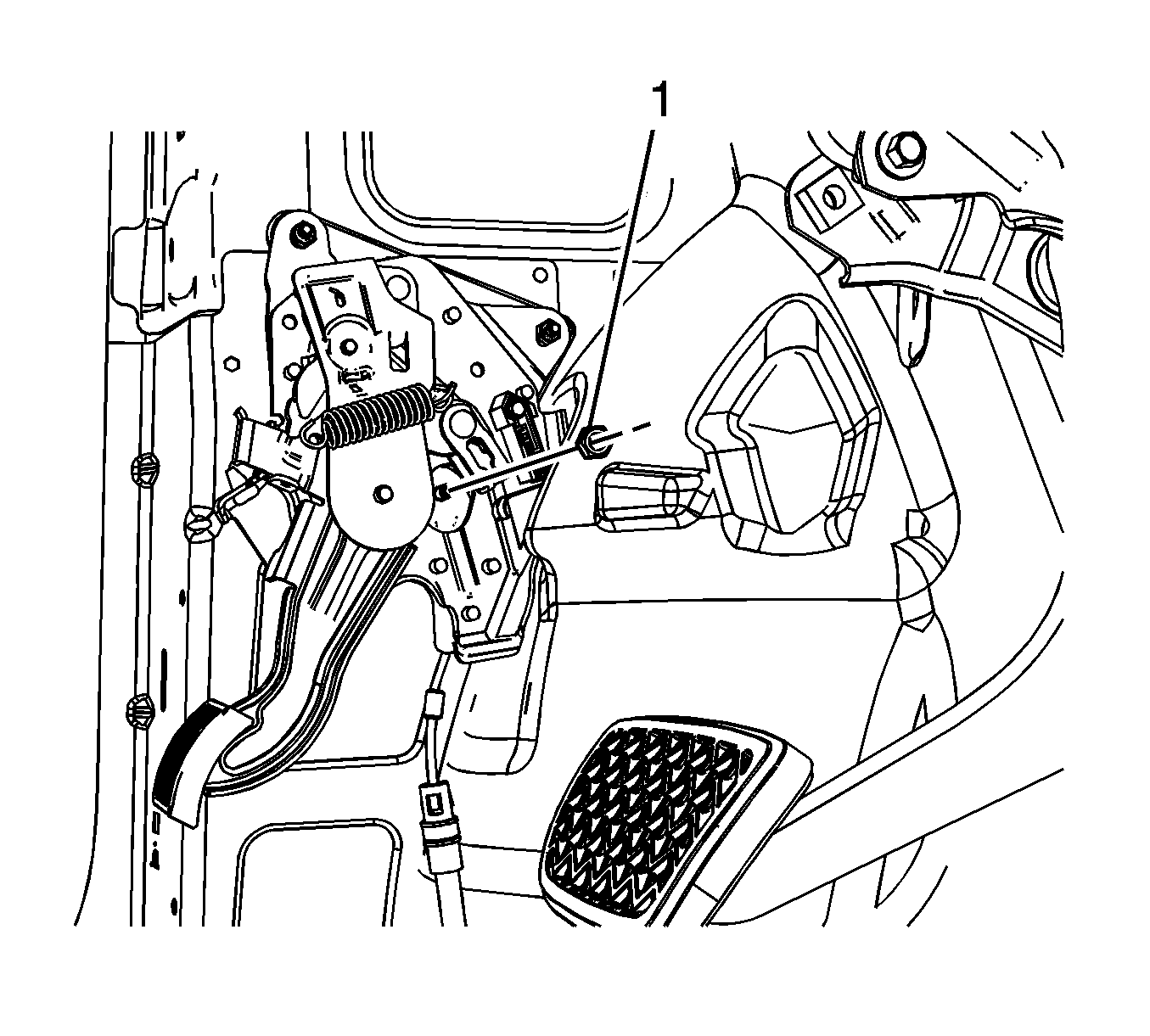

- If necessary, apply the park brake pedal until the clevis exposes the lower park brake pedal assembly mounting stud.
- Install the lower park brake pedal nut (1).
Tighten
Tighten the nut to 10 N.m (89 lb in).
- Release the park brake pedal.

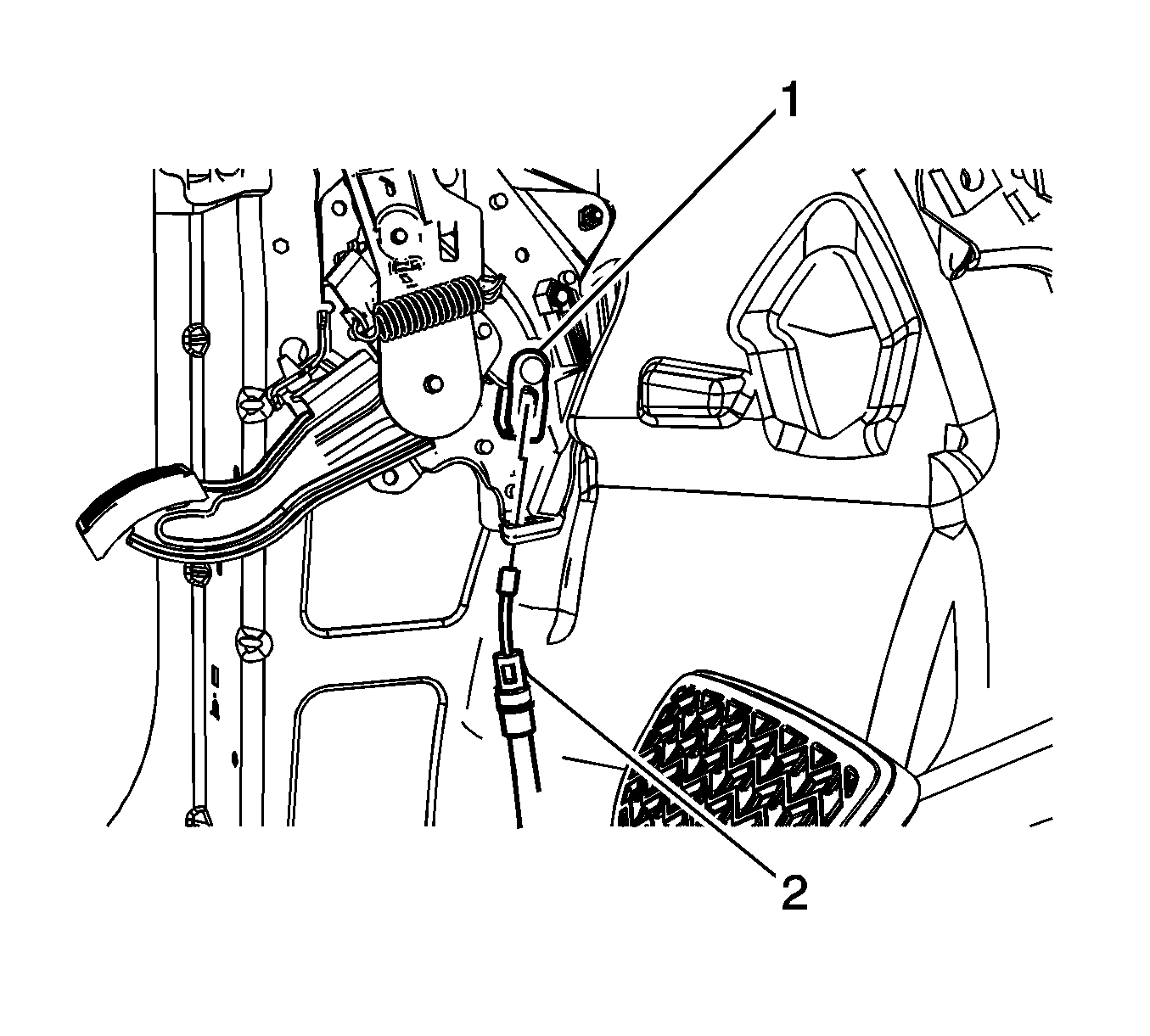

- Connect the front park brake cable to the park brake pedal clevis (1).
- Install the front park brake cable to the park brake pedal assembly.
Ensure the locking tabs on the cable conduit (2) are fully engaged to the park brake pedal assembly.
- Connect the park brake warning indicator switch electrical connector.
- Install the driver side front carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement .
- Install the left side instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
- Adjust the park brake. Refer to Parking Brake Adjustment .
CAUTION:
Refer to Fastener Caution .
