Parking Brake Indicator Switch Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

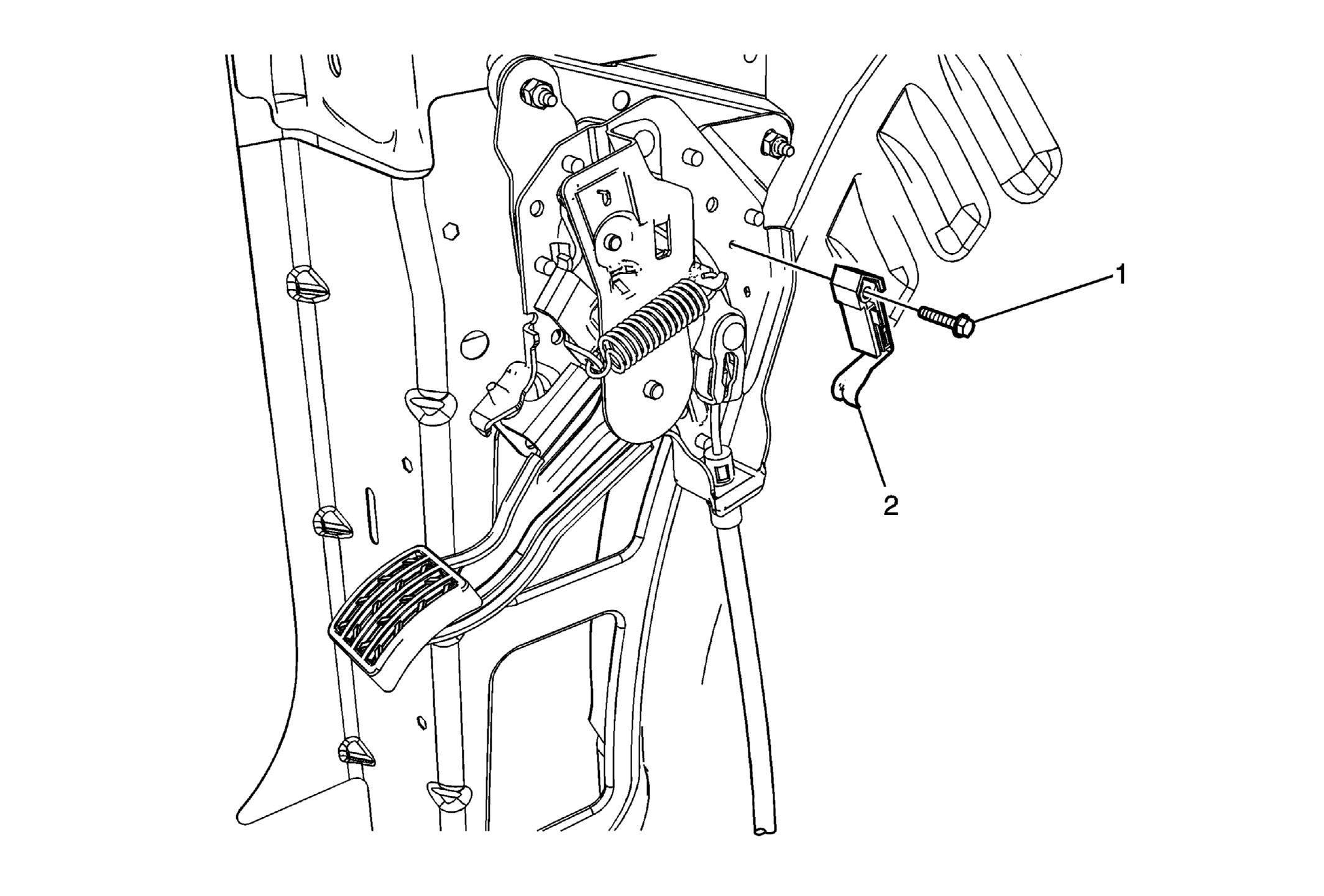

Fig 1: Parking Brake Indicator Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the left side instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side . Remove the driver side front carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement . Disconnect the park brake warning indicator switch electrical connector.
1	Park Brake Warning Lamp Switch Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Park Brake Warning Lamp Switch

Callout

Component Name

Preliminary Procedures

Remove the left side instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
Remove the driver side front carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement .
Disconnect the park brake warning indicator switch electrical connector.

Park Brake Warning Lamp Switch Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Park Brake Warning Lamp Switch
