Removal Procedure
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
- Loosen the park brake cable locknut (1) at the equalizer to relieve tension on the park brake cable.
- Disconnect the front park brake cable (1) from the rear park brake cable.

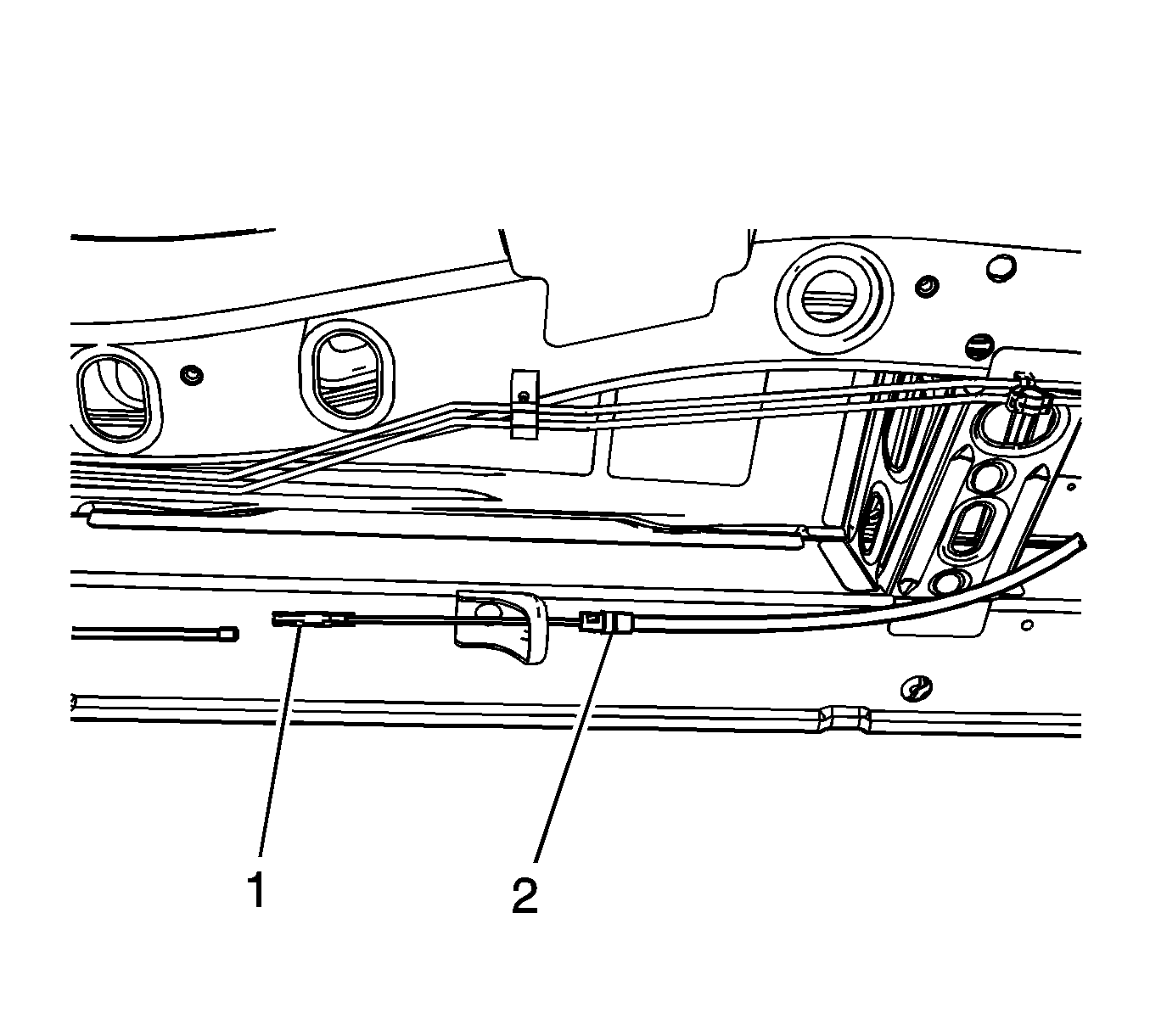

- Using the J 37043 parking brake cable release tool, remove the front park brake cable from the park brake cable bracket on the body by compressing the locking tabs on the cable conduit (2).
- Remove the left side instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
- Remove the driver side front carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement .

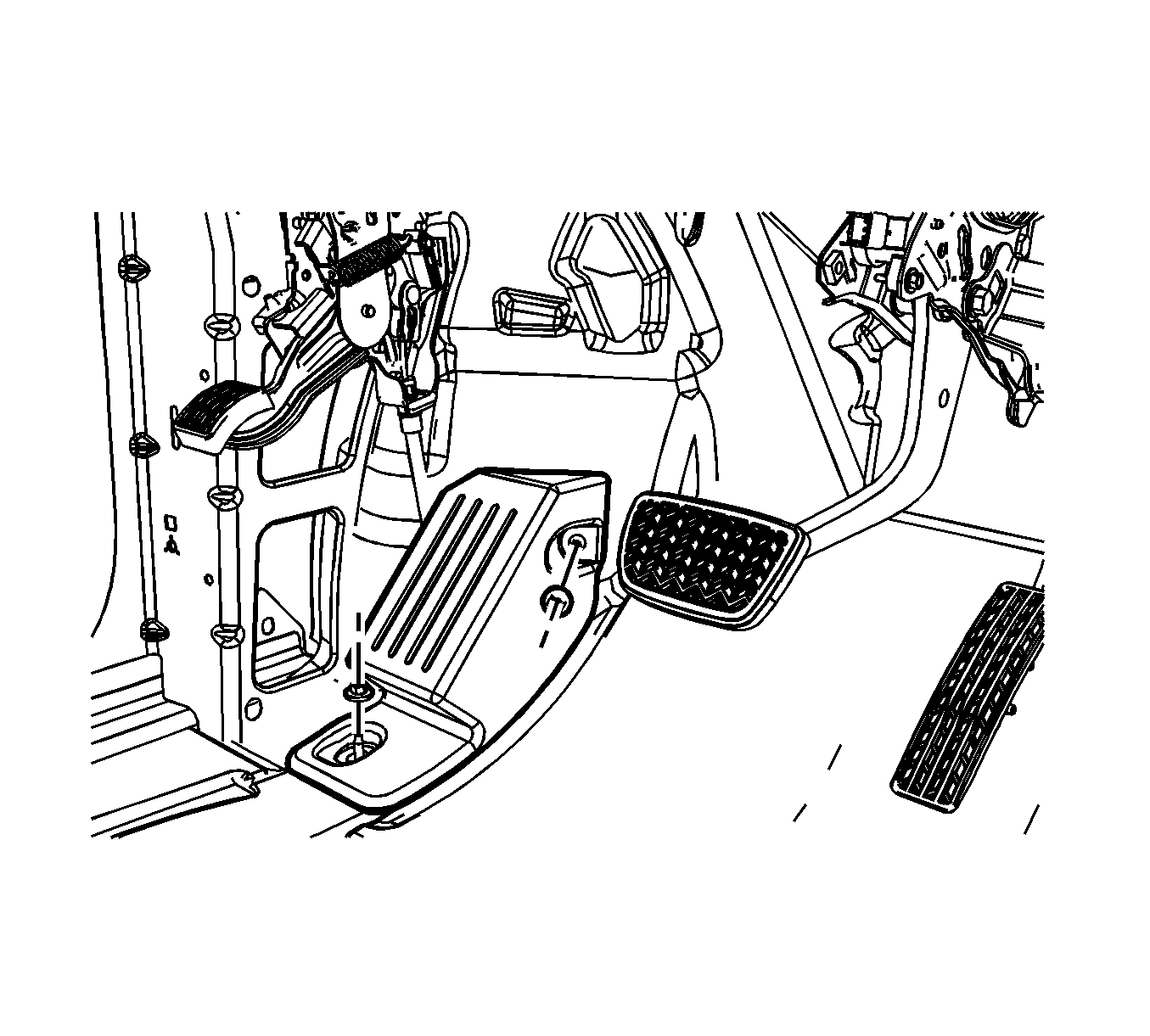

- Remove the 2 nuts and the driver footrest.

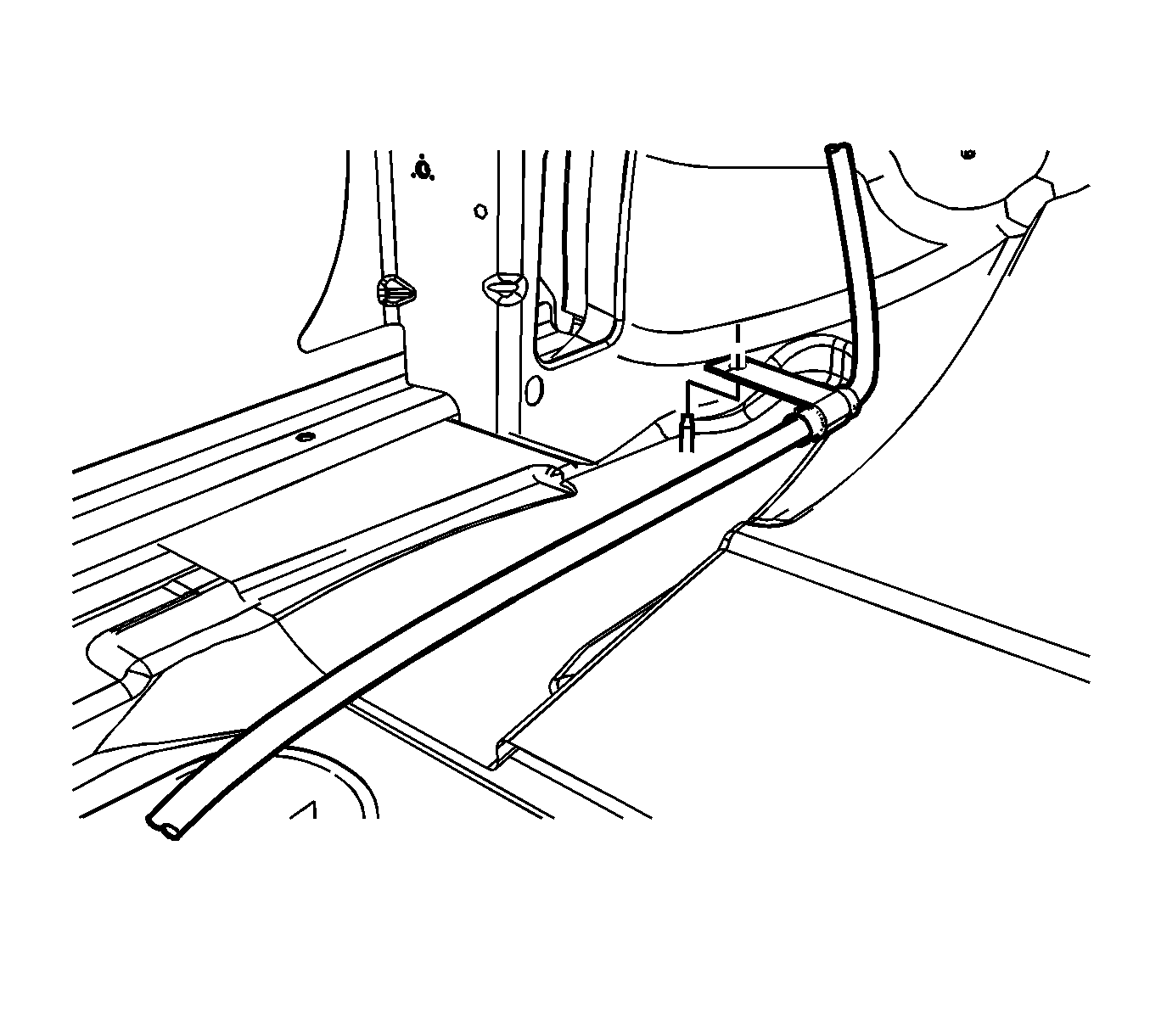

- Lift the driver floor carpet to expose the front park brake cable routing clip.
- Release the park brake cable routing clip from the floor stud.
- Release the front park brake cable pass through grommet.
- Disconnect the front park brake cable from the park brake pedal clevis (1).
- Remove the front park brake cable from the park brake pedal assembly by compressing the locking tabs on the cable conduit (2).
- Remove the front park brake cable assembly.
