Installation Procedure
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
- Install the NEW the retaining ring on the tripod.

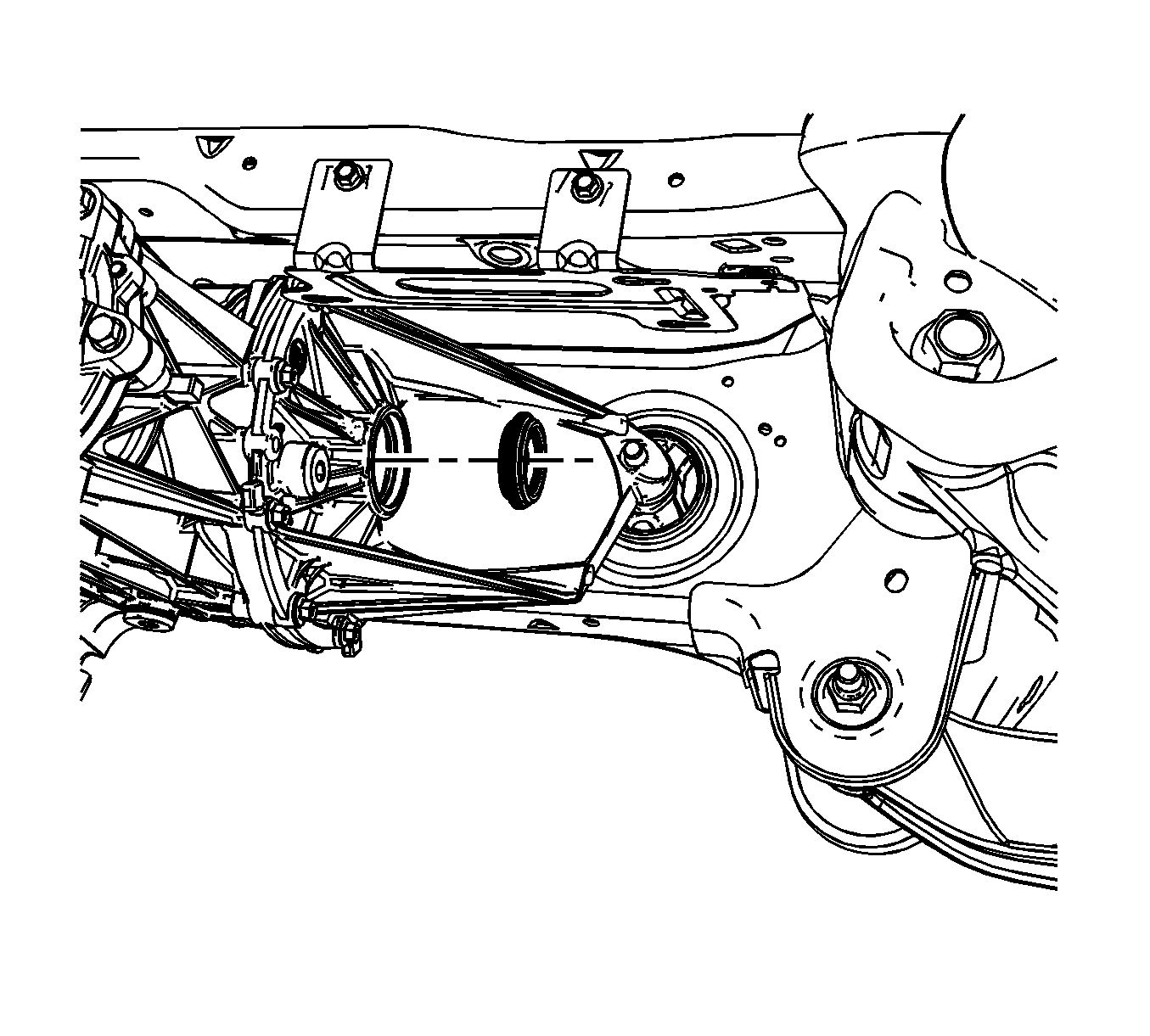

- Position the new seal in the wheel drive shaft seal.
- Using the J 44809 output shaft seal installer, install the wheel drive shaft seal.
- Install the wheel drive shaft through the knuckle.
- Check to ensure that the wheel drive shaft is fully seated by pulling on the inner joint housing and NOT the wheel drive shaft.
- Install the wheel bearing/hub assembly. Refer to Rear Wheel Bearing and Hub Replacement (AWD)Rear Wheel Bearing and Hub Replacement (FWD) .
- Install the wheel drive shaft nut.
- Install the muffler assembly, if removed. Refer to Exhaust Muffler Replacement (NB5)Exhaust Muffler Replacement (NEA/NED or N10) .

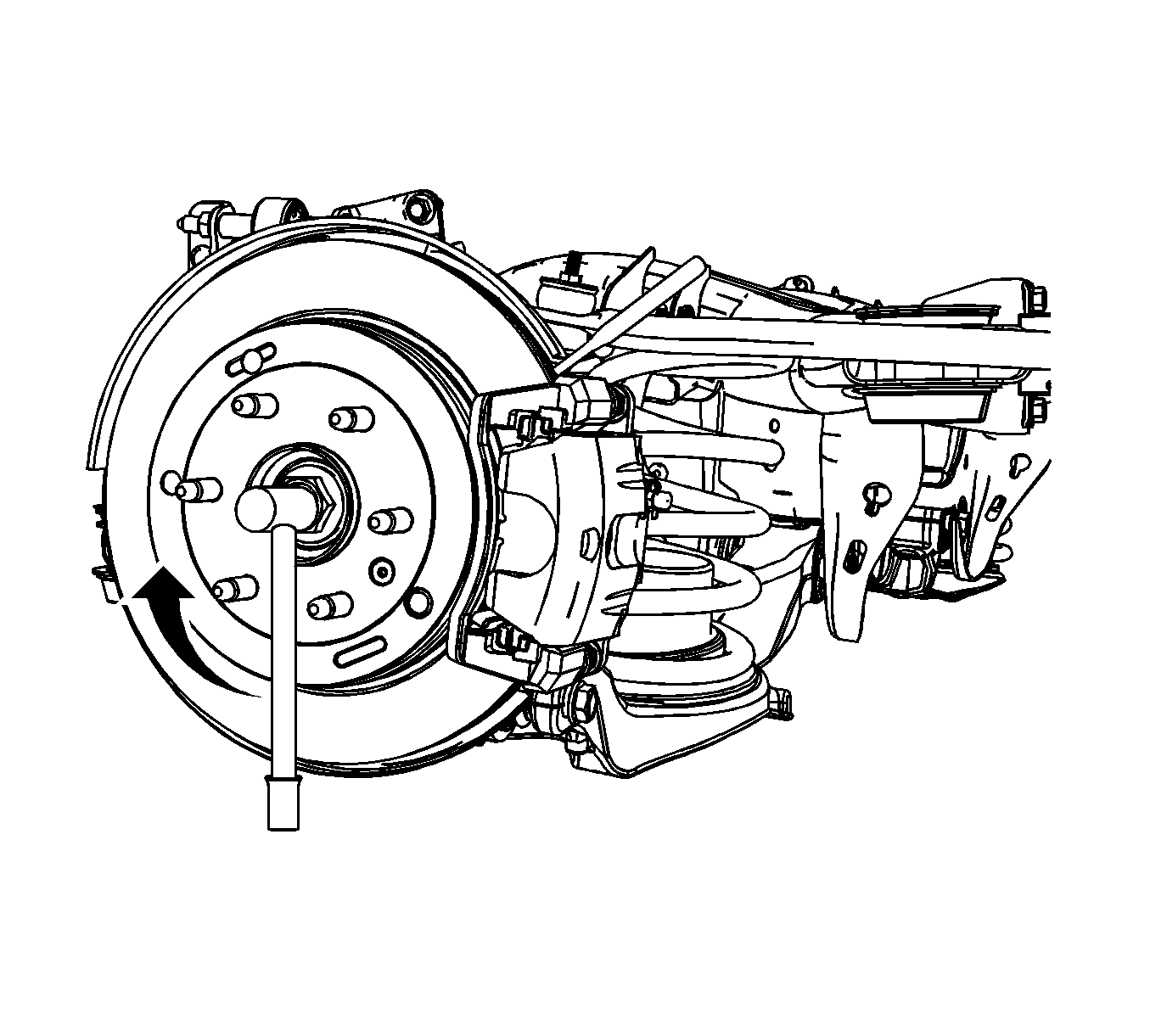

- Insert a brass drift or punch in the brake rotor so that the brass drift or punch rest against the brake caliper mounting bracket.
- Using a torque wrench and socket, tighten the new wheel drive shaft nut to 205 N.m (151 lb ft).
- Check the fluid level in the rear differential for any fluid loss during the service procedure. Refer to Rear Axle Lubricant Level Inspection .
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
CAUTION:
Refer to Fastener Caution .
