Installation Procedure
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
- Install the vacuum brake booster hose assembly to the vehicle.

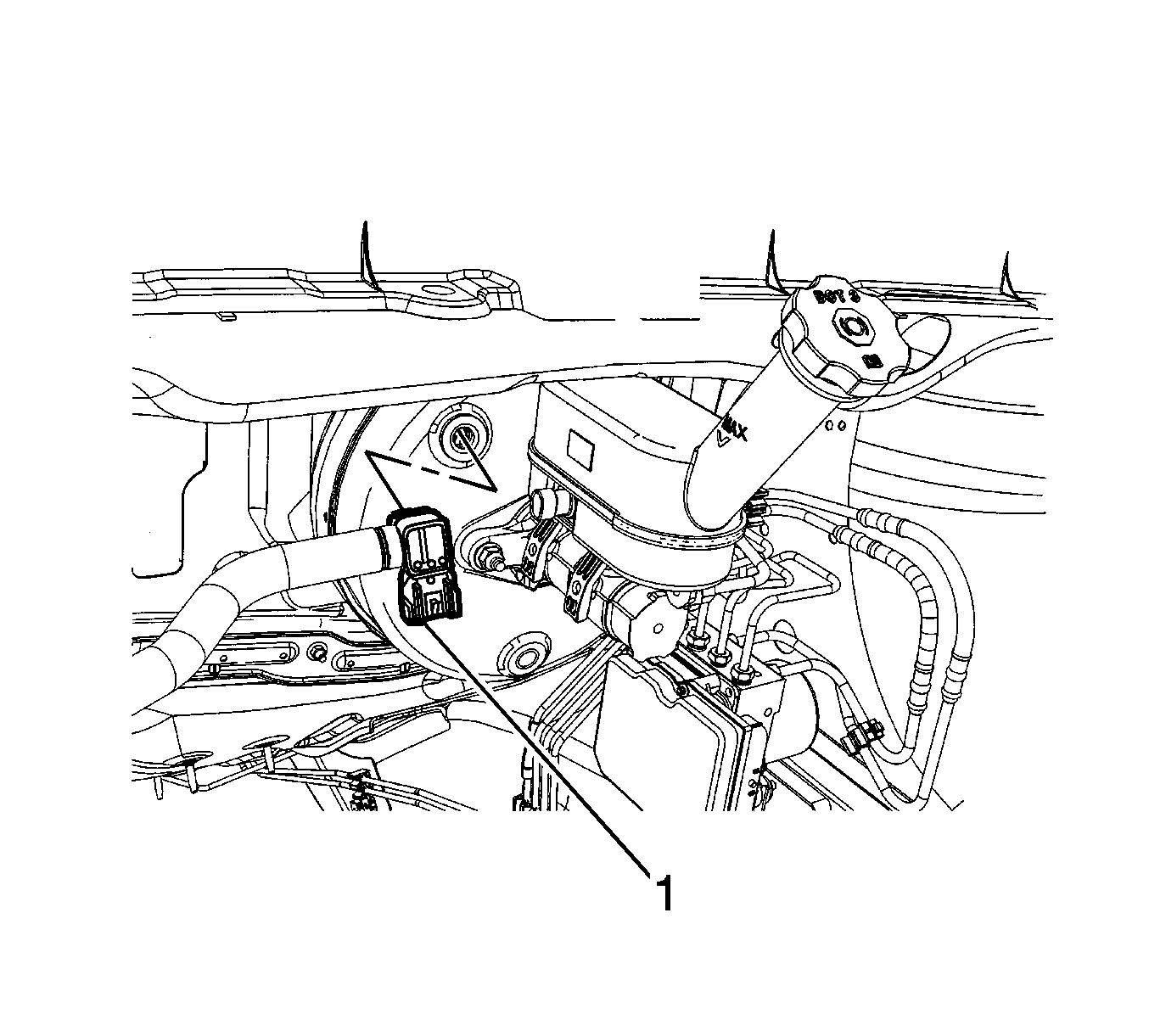

- Install the power brake booster vacuum check valve and hose assembly with vacuum sensor assembly (1) to the power brake booster.
- Connect the power brake booster vacuum sensor electrical connector.

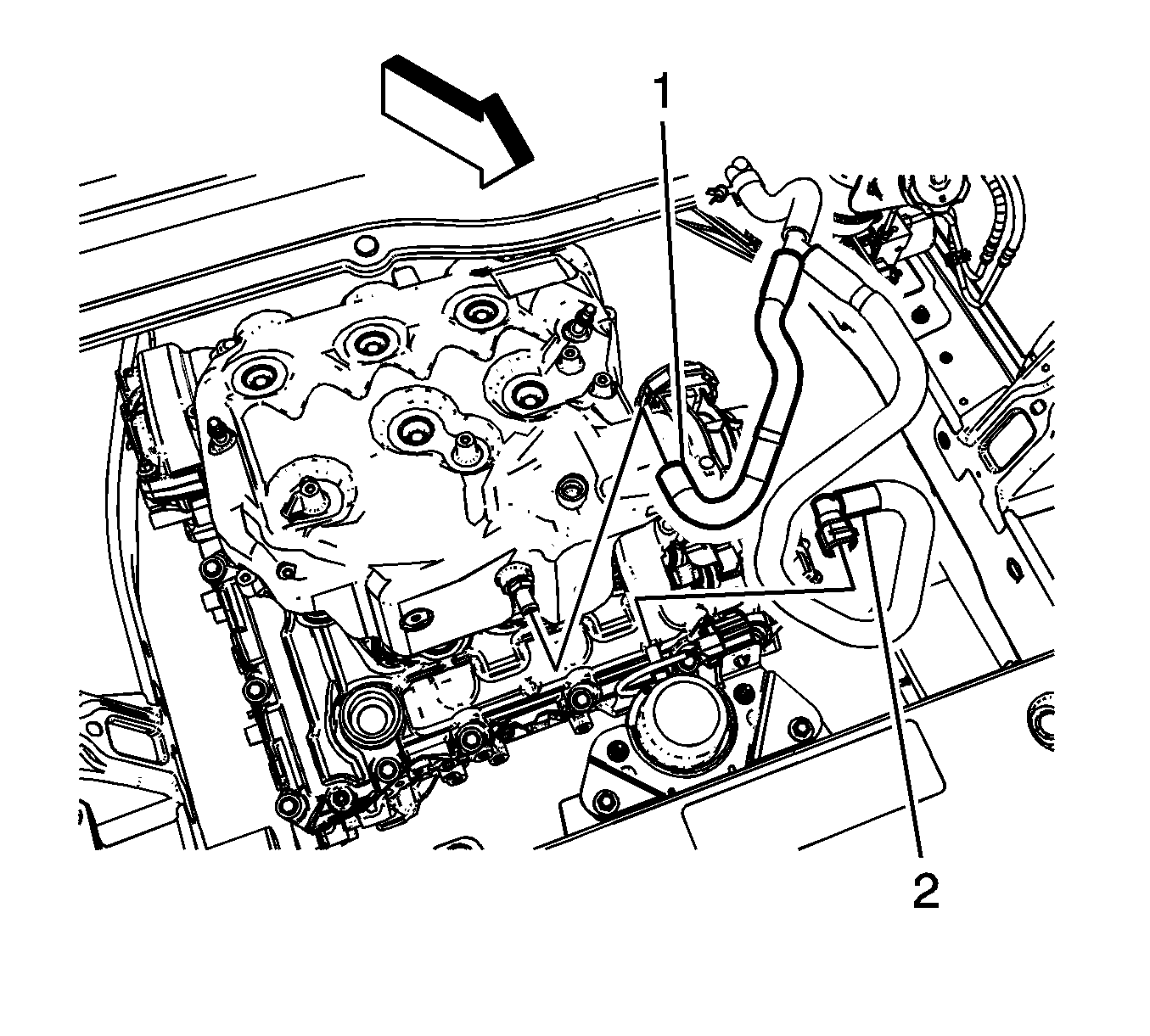

- Connect the power vacuum brake booster hose (1) to the intake manifold vacuum port.
- Connect the quick connect (2) to the power brake booster auxiliary pump.

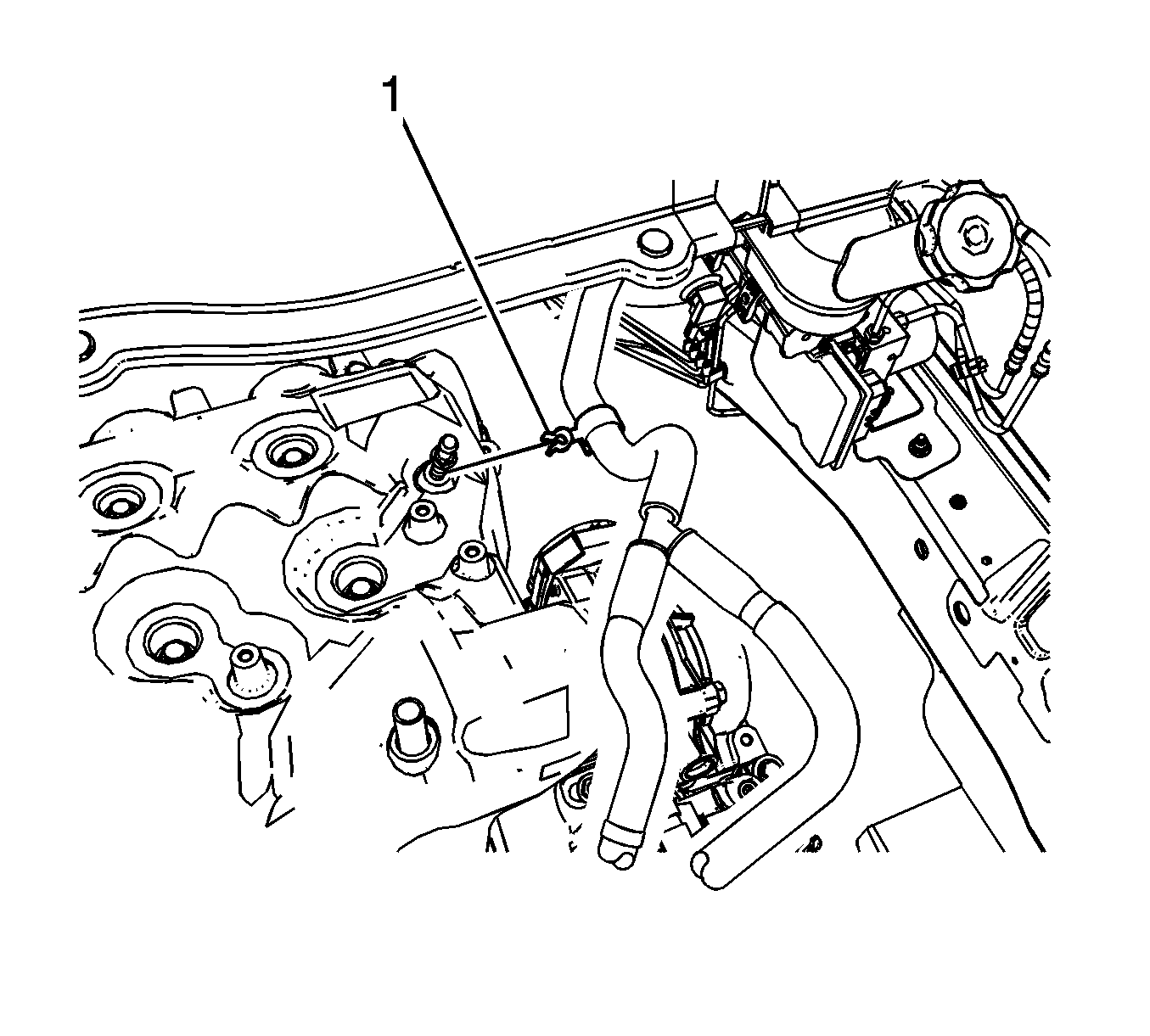

- Connect the vacuum hose routing clip (1) to the intake manifold ball stud.
- Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
NOTE:
A small amount of denatured alcohol can be used as a lubricant for installation. Do not use soap.
NOTE:
A small amount of denatured alcohol can be used as a lubricant for installation. Do not use soap.
