Wheel Stud Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

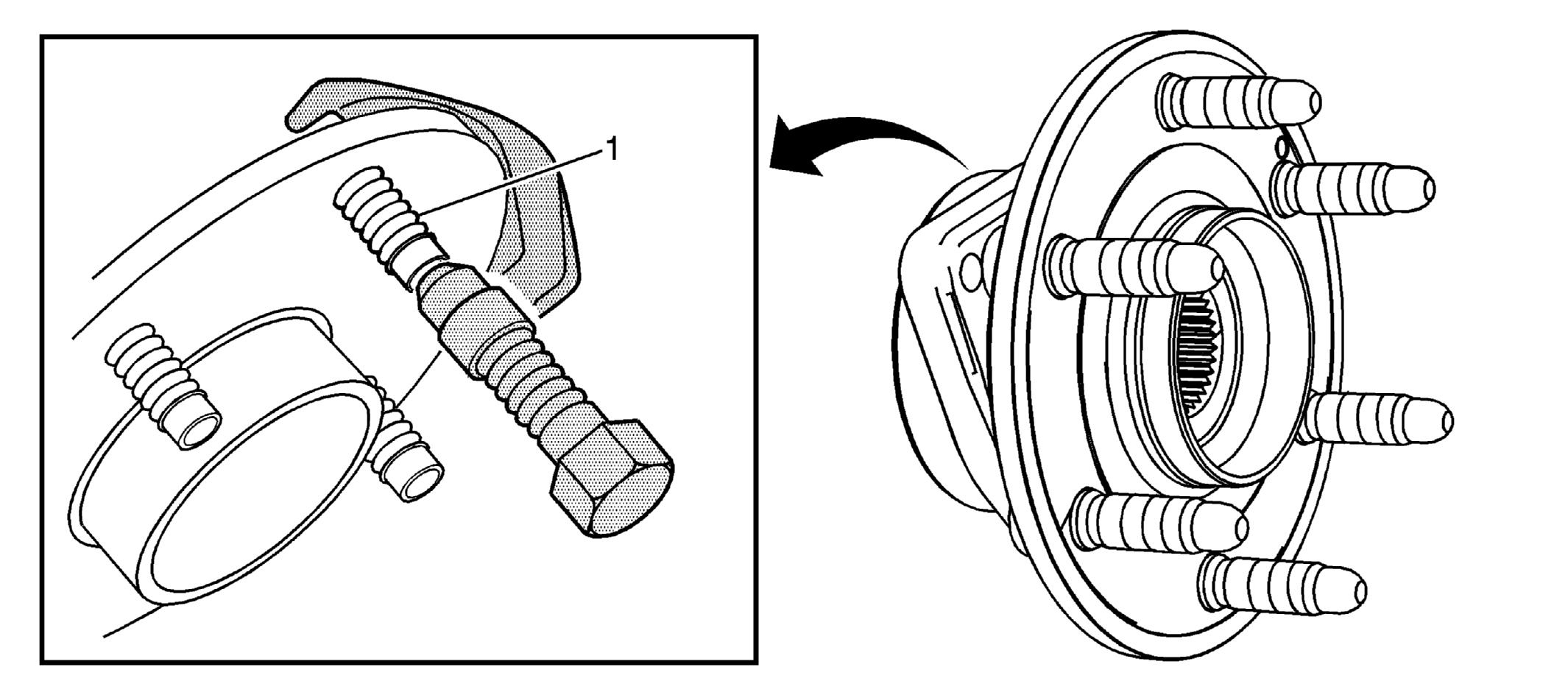

Fig 1: Identifying Wheel Stud

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear wheel bearing/hub assembly. Refer to Rear Wheel Bearing and Hub Replacement (AWD) Rear Wheel Bearing and Hub Replacement (FWD) .
1	Wheel Stud (Qty: 6) Procedure Use either an old lug nut or a nut that will fit the wheel stud. Tighten the lug nut/nut until the wheel stud is seated against the wheel hub. TIP: Ensure that the washers being used, the center hole is larger than the wheel stud. Special Tools J 43631 Ball Joint Remover

Callout

Component Name

Preliminary Procedure
Remove the rear wheel bearing/hub assembly. Refer to Rear Wheel Bearing and Hub Replacement (AWD) Rear Wheel Bearing and Hub Replacement (FWD) .

Wheel Stud (Qty: 6)

Procedure

Use either an old lug nut or a nut that will fit the wheel stud.
Tighten the lug nut/nut until the wheel stud is seated against the wheel hub.

TIP: Ensure that the washers being used, the center hole is larger than the wheel stud.
Special Tools
J 43631 Ball Joint Remover
