Engine Rear Mount Bracket Replacement (All Wheel Drive)

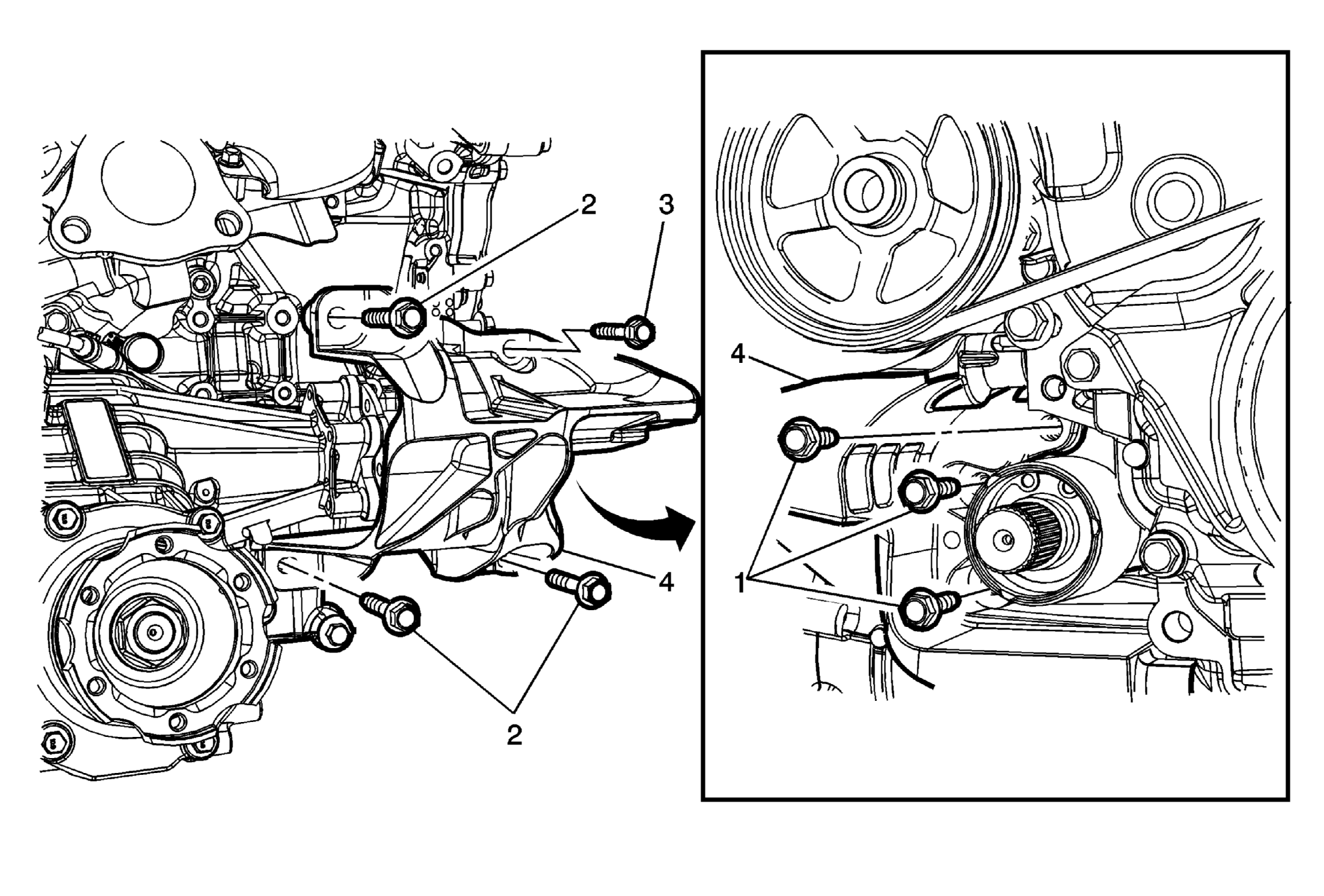

Fig 1: Mount Bracket (All Wheel Drive)
GM2455571Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Wheel Drive Shaft Replacement
  2. Engine Rear Mount Replacement
  3. Exhaust Flexible Pipe Replacement
  4. Remove the front exhaust muffler heat shield. Exhaust Muffler Heat Shield Replacement
1 Engine Mount Bracket to Transfer Case Retainer (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Engine Mount Bracket to Engine Block (Qty: 3)
Tighten
58 N.m (43 lb ft)
3 Engine Mount Bracket to Engine Block
Tighten
22 N.m (16 lb ft)
4 Engine Mount Bracket
