Engine Rear Mount Replacement

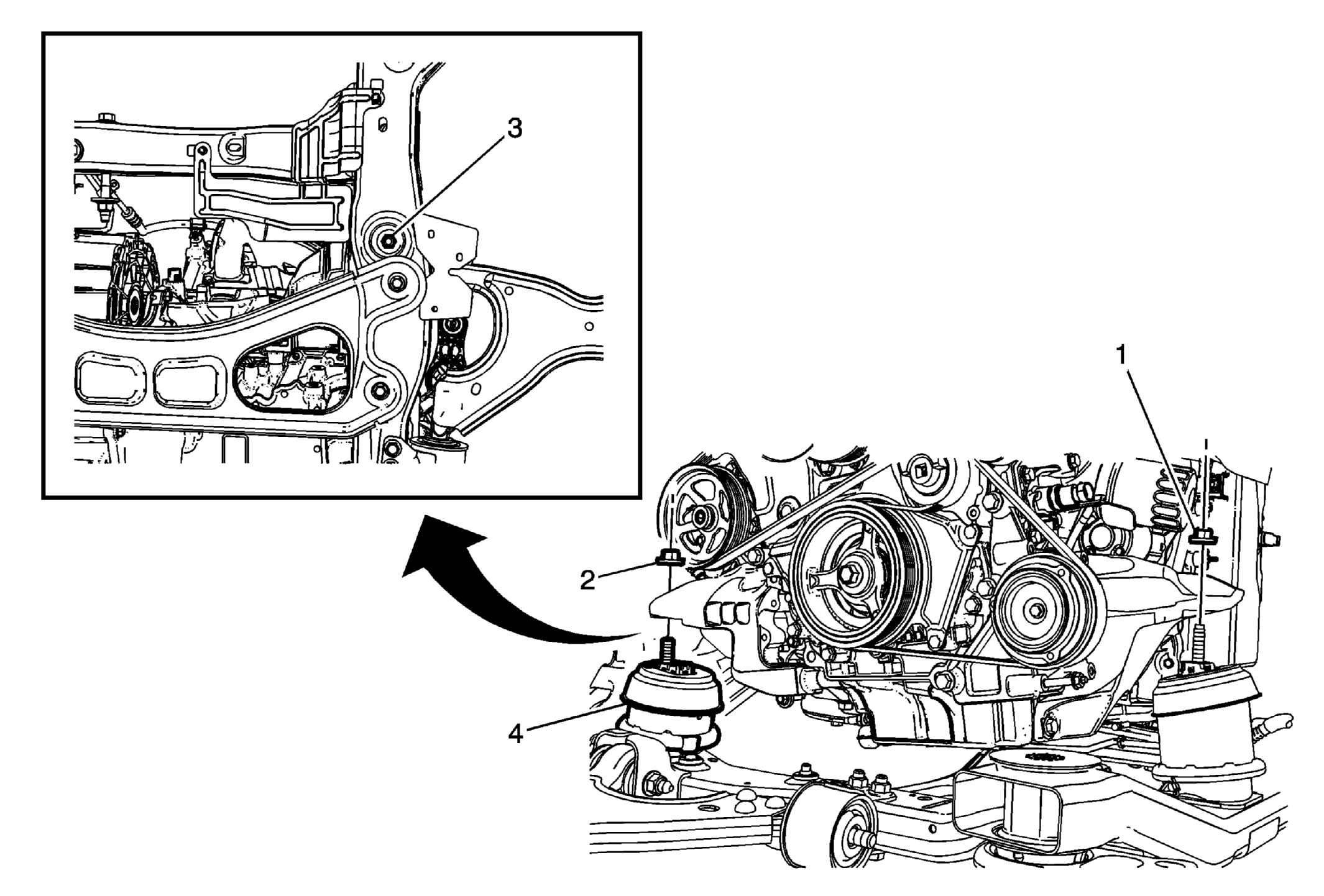

Fig 1: Identifying Engine Rear Mount Assembly Components
GM2064096Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Support the engine. Refer to Engine Support Fixture .
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
NOTE:

The engine mount nuts must be replaced once removed. Allow adhesive on new engine mounts nuts to cure for 24 hours after replacement.
1 Front Upper Engine Mount Nut
CAUTION:

Refer to Fastener Caution

Procedure

  1. Remove and discard the engine mount nut.
  2. Disconnect the active engine mount vacuum line, if equipped.
  3. Apply threadlocker to the engine mount threads. Refer to Adhesives, Fluids, Lubricants, and Sealers .

Tighten
90 N.m (66 lb ft)
2 Rear Upper Engine Mount Nut

Procedure

  1. Remove and discard the engine mount nut.
  2. Apply threadlocker to the engine mount threads. Refer to Adhesives, Fluids, Lubricants, and Sealers .

Tighten
60 N.m (44 lb ft)
3 Rear Lower Engine Mount Nut

Procedure

  1. Remove and discard the engine mount nut.
  2. Apply threadlocker to the engine mount threads. Refer to Adhesives, Fluids, Lubricants, and Sealers .

Tighten
75 N.m (55 lb ft)
4 Engine Mount
NOTE:

To remove the engine mount, use the engine support fixture to raise engine.
