Underhood Electrical Center or Junction Block Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

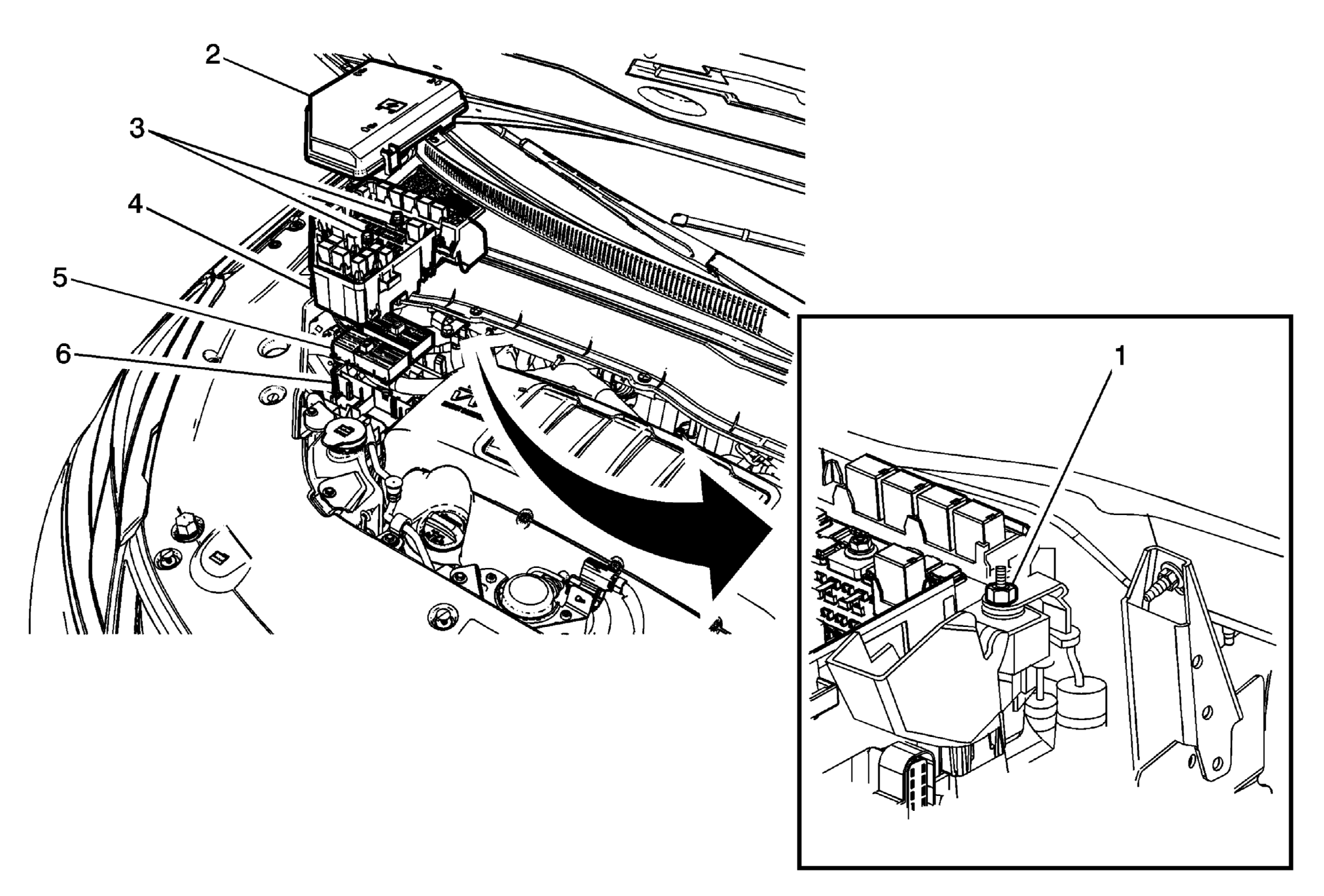

| Callout | Component Name |
|---|---|
| Preliminary Procedure Disconnect the battery. Refer to Battery Negative Cable Disconnection and Connection . |
|
| 1 | Battery Positive Cable to Junction Block Nut
CAUTION:
Refer to Fastener Caution . Procedure
|
| 2 | Junction Block Cover Procedure Release the fuse block from the front compartment fuse block housing. |
| 3 | Junction Block Bolt (Qty: 2) Procedure Loosen the bolts until disengaged from the fuse block. |
| 4 | Front Compartment Fuse Block Housing |
| 5 | Front Compartment Fuse Block with Harness Procedure Reposition from the fuse block. |
| 6 | Underhood Junction Block Base Procedure Release the junction block base from the wheelhouse. |
