Instrument Panel Trim Panel Replacement - Left Side (OUTLOOK)

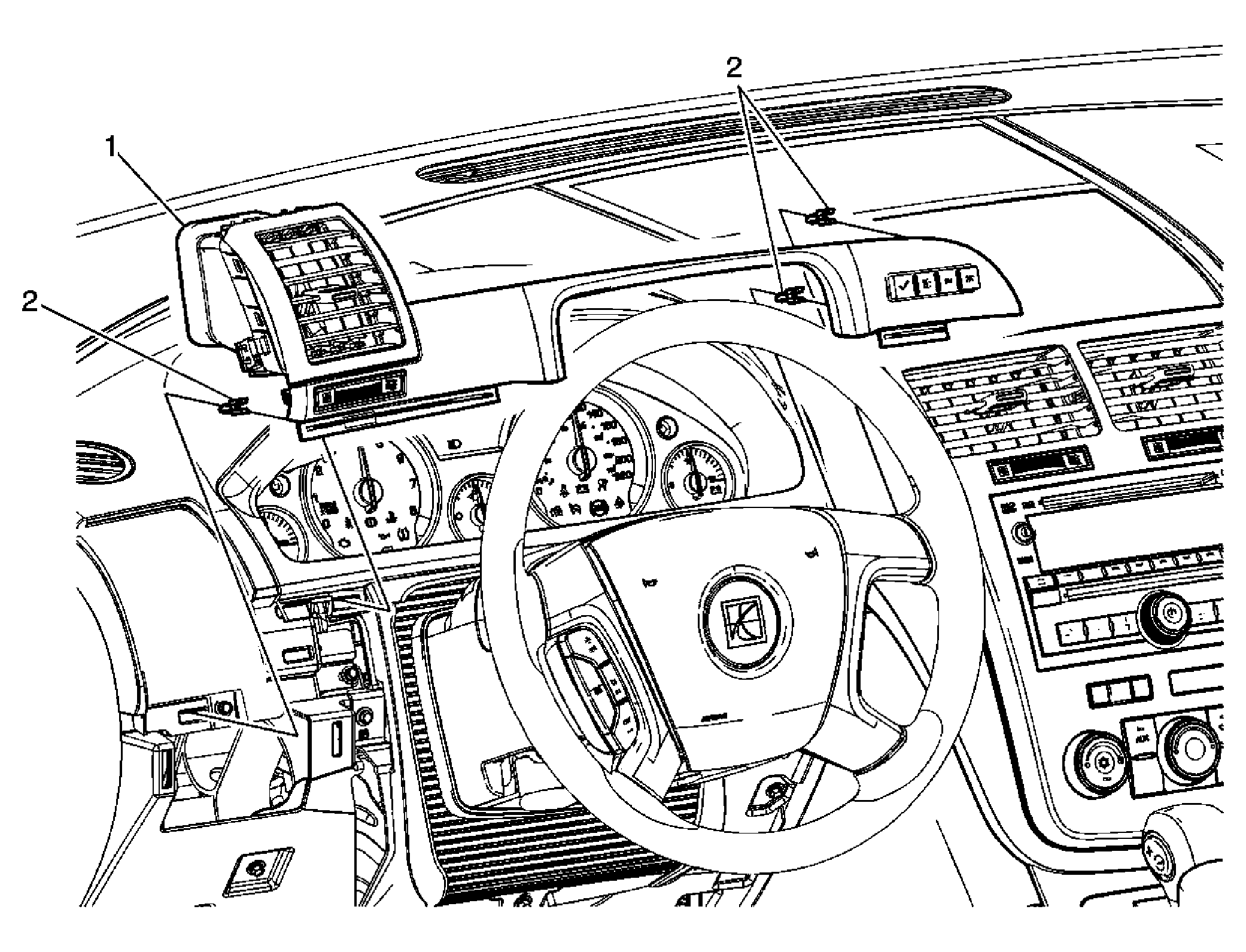

Fig 1: View Of Left Side Instrument Panel Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement (OUTLOOK) .
1	Instrument Panel Trim Plate Procedure Position the steering wheel to its lowest possible position. Use a flat- bladed plastic trim tool in order to release the trim plate from the instrument panel assembly. Disconnect the electrical connections. When replacing the trim plate, transfer all necessary components.
2	Retainer Clip (Qty: 5)

Callout

Component Name

Preliminary Procedure:
Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement (OUTLOOK) .

Instrument Panel Trim Plate

Procedure

Position the steering wheel to its lowest possible position.
Use a flat- bladed plastic trim tool in order to release the trim plate from the instrument panel assembly.
Disconnect the electrical connections.
When replacing the trim plate, transfer all necessary components.

Retainer Clip (Qty: 5)
