Driver Knee Bolster Replacement (OUTLOOK)

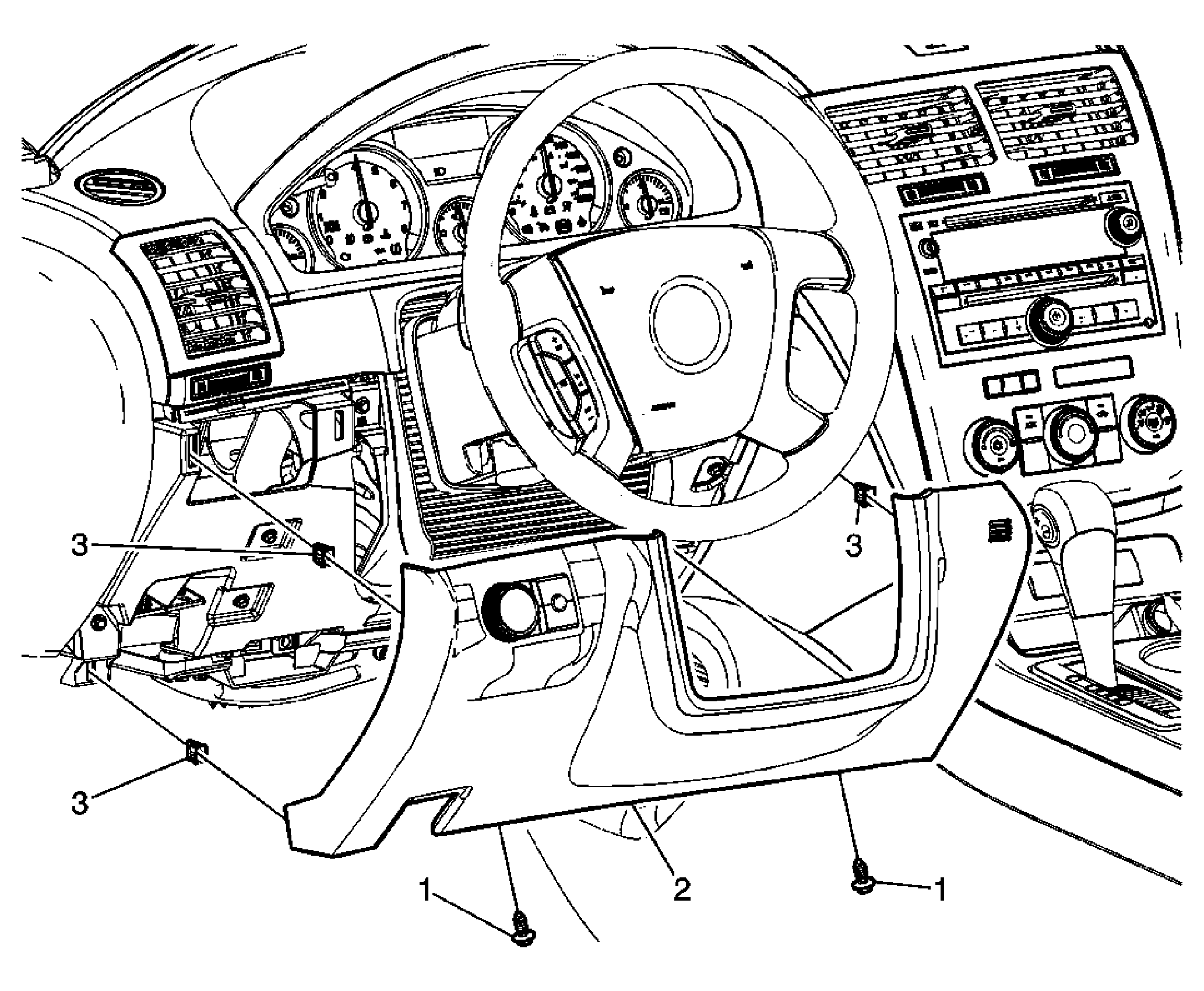

Fig 1: Identifying Driver Knee Bolster (Outlook)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the hood latch release handle assembly. Refer to Hood Primary Latch Release Cable Handle Replacement .
1	Driver Knee Bolster Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m(22 in lb)
2	Driver Knee Bolster Assembly Procedure Disconnect the electrical connections. When replacing the steering column opening filler, transfer all necessary components.
3	Retainer Clip (Qty: 5)
