Hood Primary Latch Release Cable Handle Replacement

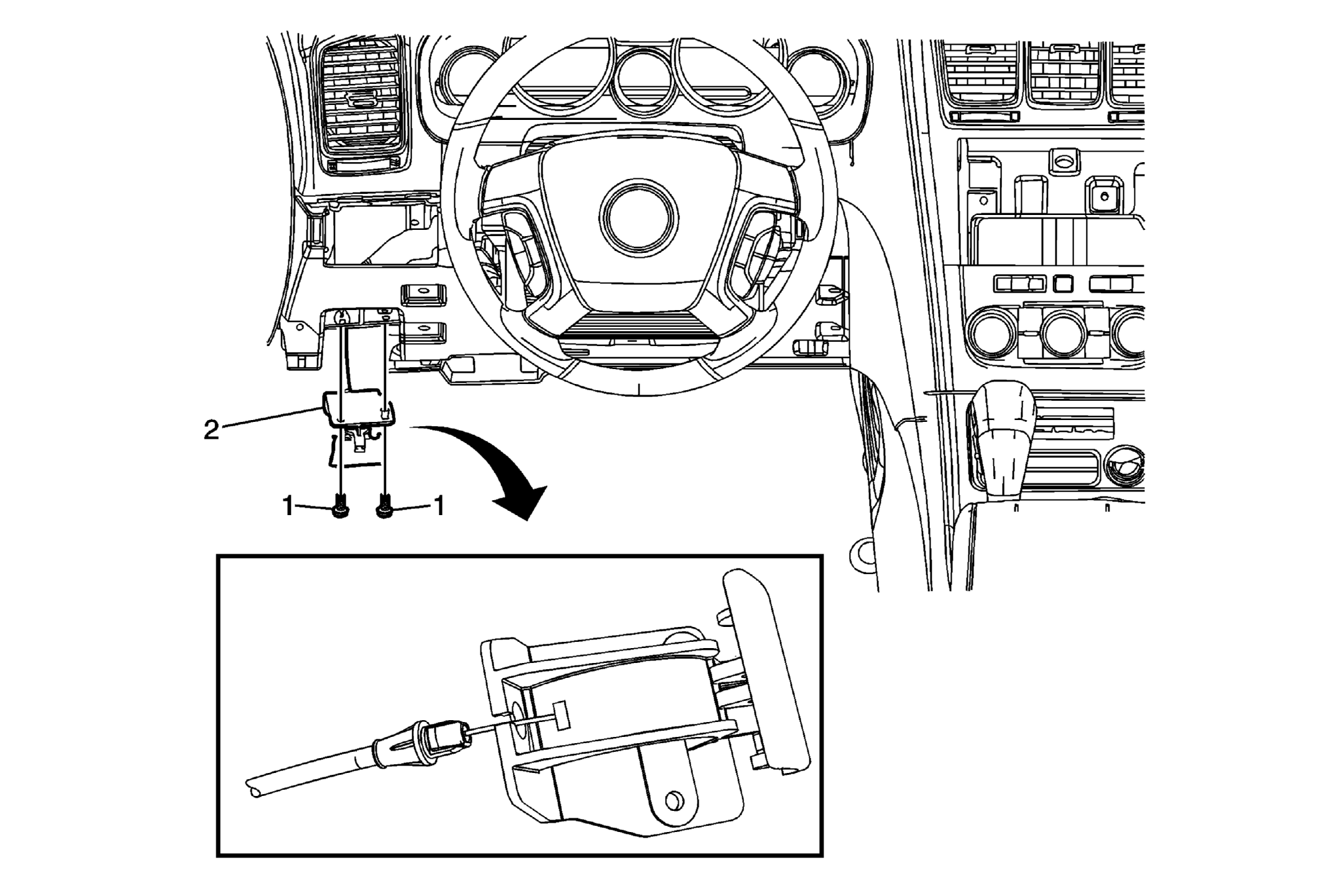

Fig 1: View Of Hood Primary Latch Release Cable Handle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Latch Release Handle Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten:  10 N.m (89 lb in)
2	Hood Latch Release Handle Tip:  Disconnect the release cable.
