Driver Information Display Switch Replacement (OUTLOOK)

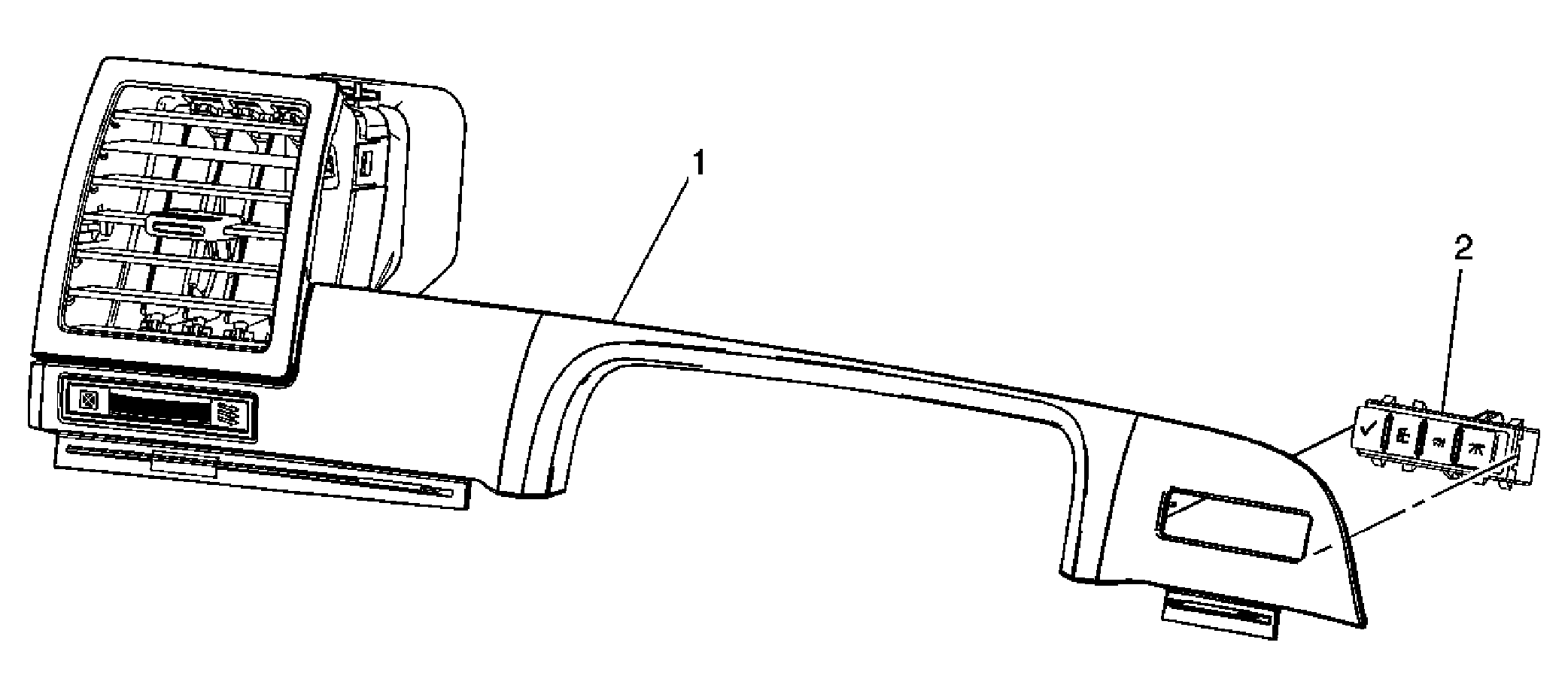

Fig 1: Locating Driver Information Display Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Trim Panel Refer to Instrument Panel Trim Panel Replacement - Left Side (OUTLOOK)
2	Drivers Information Center Switch Assembly Procedure Unsnap the switch assembly from the trim panel. Once switch is replaced, remove the instrument panel cluster fuse for a few seconds then reinstall the fuse.

Callout

Component Name

Drivers Information Center Switch Assembly

Procedure

Unsnap the switch assembly from the trim panel.
Once switch is replaced, remove the instrument panel cluster fuse for a few seconds then reinstall the fuse.
