Rear Seat-back Striker Replacement

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

Remove these items:
- Cargo area side trim panel both sides (see TRIM REMOVAL/INSTALLATION - CARGO AREAS ).
- IPU module air duct (see IPU MODULE AIR DUCT REMOVAL/INSTALLATION ).

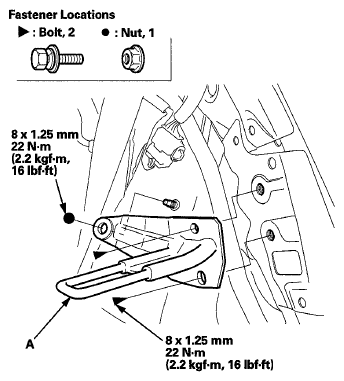

Left side: Remove the bolts and nut, then remove the rear seat-back striker (A).

Fig 1: Rear Seat-Back Striker, Bolt And Nut With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

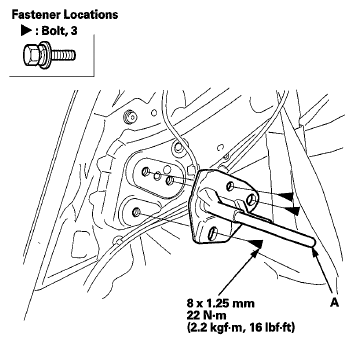

Right side: Remove the bolts, then remove the rear seat-back striker (A).

Fig 2: Rear Seat-Back Striker And Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the striker in the reverse order of removal, and move the striker (A) up or down until it is centered in the seat-back latch (B).

Fig 3: Installing Striker

Courtesy of AMERICAN HONDA MOTOR CO., INC.
