Lower Front Bumper Grille Replacement

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the front bumper.
When prying with a flat-tip screwdriver; wrap it with protective tape to prevent damage.

Remove these items:
- Front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
- Upper front bumper grille (see UPPER FRONT BUMPER GRILLE REPLACEMENT ).
Remove the screws and the hooks (A) by using a flat-tip screwdriver wrapped with protective tape, then remove the lower front bumper grille (B) from the front bumper (C).

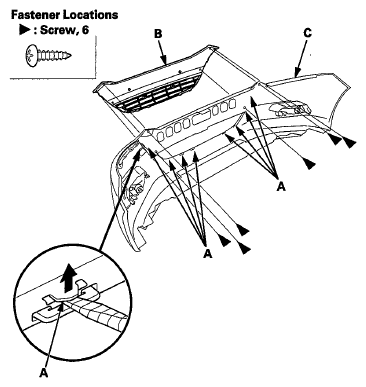

Fig 1: Identifying Hooks, Lower Front Bumper Grille And Front Bumper
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the lower front bumper grille in the reverse order of removal, and push the hooks into place securely.
