Upper Front Bumper Grille Replacement

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the front bumper.
  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Remove the screws, then remove the cooling guide (A) from the front bumper (B).

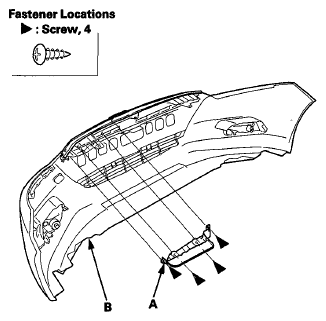

    Fig 1: Identifying Cooling Guide And Front Bumper
    G06431206Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screws, and release the hooks (A), then remove the upper front bumper grille (B) from the front bumper (C).

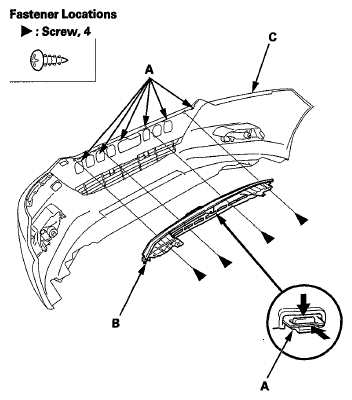

    Fig 2: Identifying Hooks, Upper Front Bumper Grille And Front Bumper
    G06431207Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the grille in the reverse order of removal, and push the hooks into place securely.
