CMP Pulse Plate Removal and Installation: Installation

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

Install the CMP pulse plate (A).

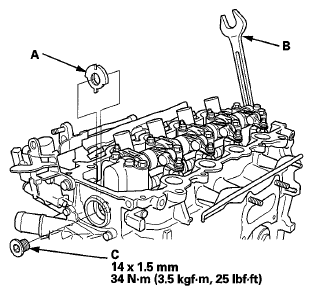

Fig 1: Installing CMP Pulse Plate And Tightening Bolt With Torque Specifications
Hold the camshaft with a 27 mm open-end wrench (B), then tighten the bolt (C).
Install the new cylinder head plug.

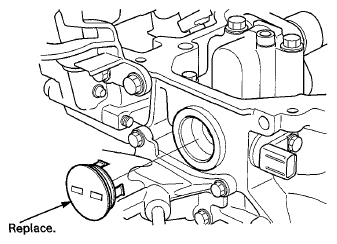

Fig 2: Identifying Cylinder Head Plug
Install the harness holder and the ground cable (see step 16 ).
Install the cylinder head cover (see CYLINDER HEAD COVER INSTALLATION ).
Install the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
