Cylinder Head Cover Installation

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the spark plug seals (A) for damage. If the seal is damaged, replace the spark plug seals.
    Fig 1: Identifying Spark Plug Seals And Head Cover Gasket
    G06428894
  2. Thoroughly clean the head cover gasket (B) and the groove.
    NOTE: Check and if necessary, replace head cover gasket.
  3. Install the head cover gasket in the groove of the cylinder head cover (C). Make sure the gasket is evenly seated securely.
  4. Remove all of the old liquid gasket from the chain case.
  5. Clean the head cover contacting surfaces with a shop towel.
  6. Apply liquid gasket (P/N 08717-0004,08718-0003, or 08718-0009) to the cam chain case contact areas (A). Install the component within 5 minutes of applying the liquid gasket.
    NOTE:
    • Apply a 3.0 mm (0.118 in) diameter bead of liquid gasket to the chain case contact areas.
    • If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes.
    • If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.
    Fig 2: Identifying Liquid Gasket Applying Area
    G06428895
  7. Place the cylinder head cover (A) on the cylinder head, then slide the cover slightly back and forth to seat the head cover gasket.
    NOTE:
    • Wait at least 30 minutes before filling the engine with oil.
    • Do not run the engine for at least 3 hours after installing the head cover.
    Fig 3: Identifying Cylinder Head Cover And Cover Washer
    G06428896
  8. Inspect the cover washer (B). Replace any washer that is damaged or deteriorated.
  9. Tighten the bolts in three steps. In the final step, tighten all bolts, in sequence, to 12 N.m (1.2 kgf.m, 8.7 lbf.ft).
    Fig 4: Identifying Bolts Tightening Sequence
    G06428897
  10. Connect the breather hose (A), and install the harness holder (B).

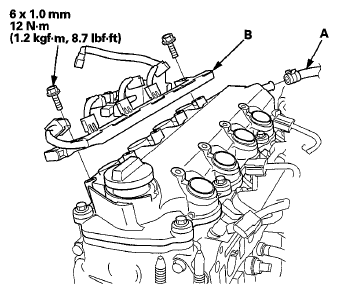

    Fig 5: Breather Hose, Harness Holder And Bolts With Torque Specifications
    G06428898
  11. Install the eight ignition coils (see IGNITION COIL REPLACEMENT ).
  12. Install the intake manifold (see INSTALLATION ).
