Removal Procedure
- The steering column
- The intermediate shaft(s)
- The steering gear
- Place the steering wheel in the straight ahead position. Lock the steering column.
- Remove the steering column opening filler. Refer to Steering Column Opening Filler Replacement .
- Disconnect any electrical connectors as necessary.
- Disconnect the intermediate steering shaft from the steering column shaft. Refer to Intermediate Steering Shaft Replacement .

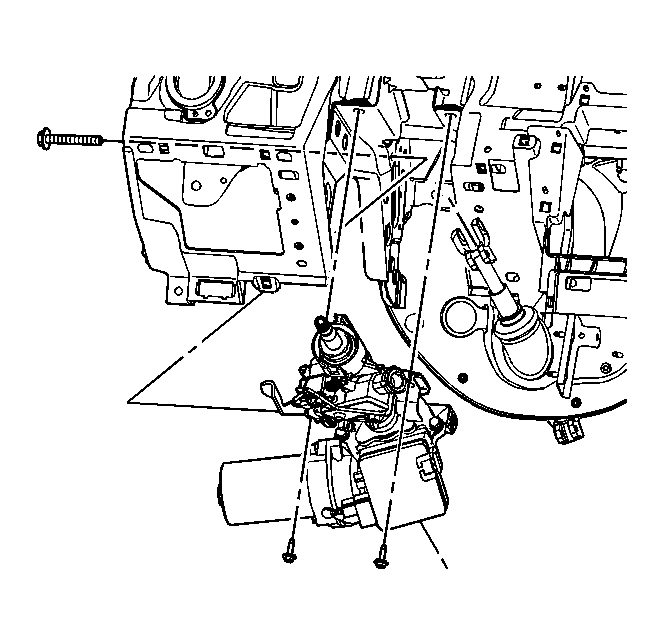

- Remove the steering column lower support bracket bolt.
- Remove the steering column upper support bracket bolts.
- Remove the steering column from the vehicle.
- Remove the power steering assist motor. Refer to Power Steering Assist Motor Replacement .
- Transfer any parts as necessary.
CAUTION:
With wheels of the vehicle facing straight ahead, secure the steering wheel utilizing steering column anti-rotation pin, steering column lock, or a strap to prevent rotation. Locking of the steering column will prevent damage and a possible malfunction of the SIR system. The steering wheel must be secured in position before disconnecting the following components:
After disconnecting these components, do not rotate the steering wheel or move the front tires and wheels. Failure to follow this procedure may cause the SIR coil assembly to become un-centered and cause possible damage to the SIR coil. If you think the SIR coil has became un-centered, refer to your specific SIR coil's centering procedure to re-center SIR Coil.
After disconnecting these components, do not rotate the steering wheel or move the front tires and wheels. Failure to follow this procedure may cause the SIR coil assembly to become un-centered and cause possible damage to the SIR coil. If you think the SIR coil has became un-centered, refer to your specific SIR coil's centering procedure to re-center SIR Coil.
