Steering Column Opening Filler Replacement

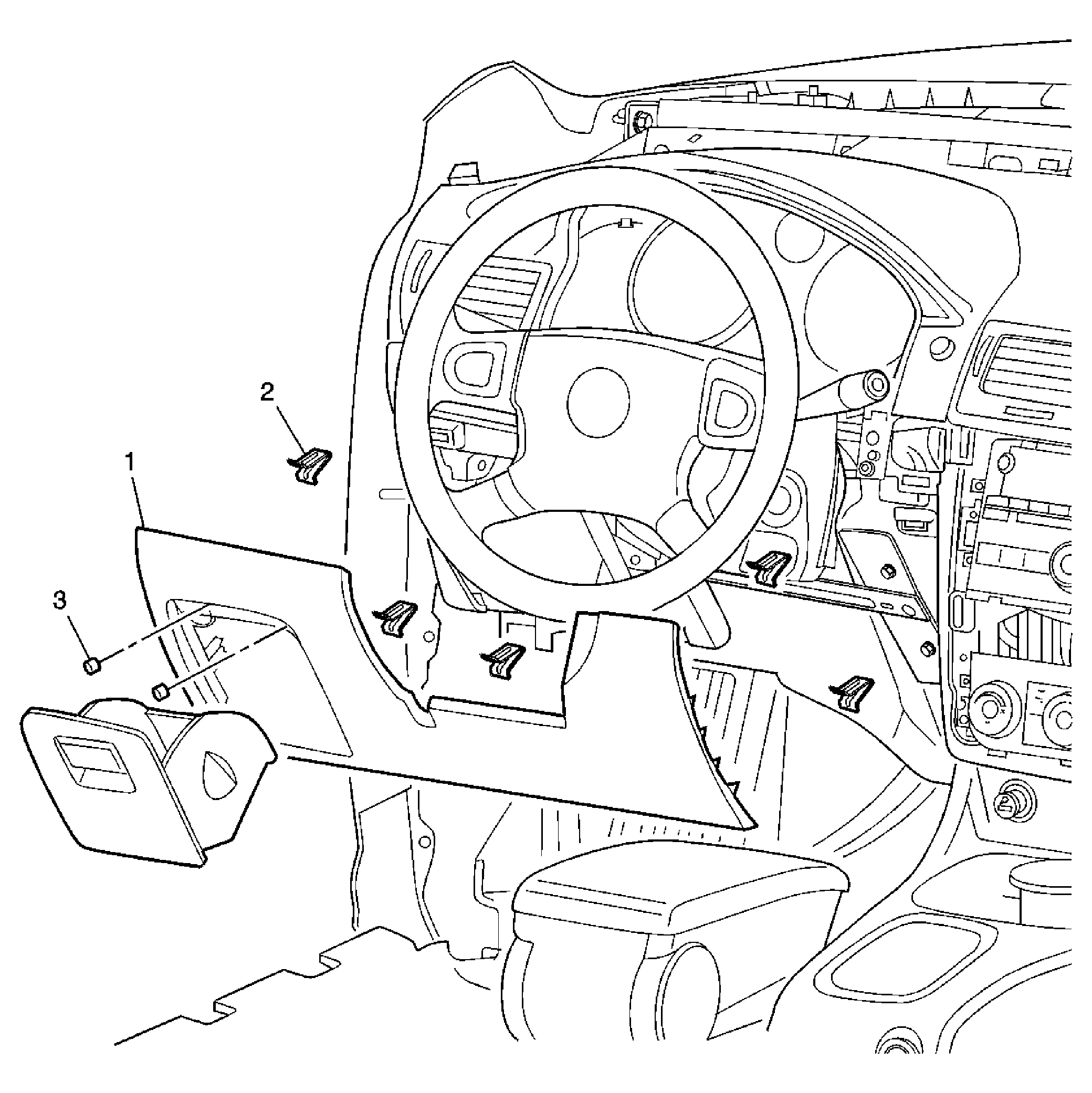

Fig 1: View Of Steering Column Opening Filler
GM1539468Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Steering Column Filler Assembly
Tip:
  1. Release the left-hand instrument panel (I/P) trim plate assembly by pulling away from the I/P retainer.
  2. Disconnect electrical connector for trunk release.
2 Clip
3 Bumper
