Installation Procedure

WARNING: This page is about a different variant/trim than selected.

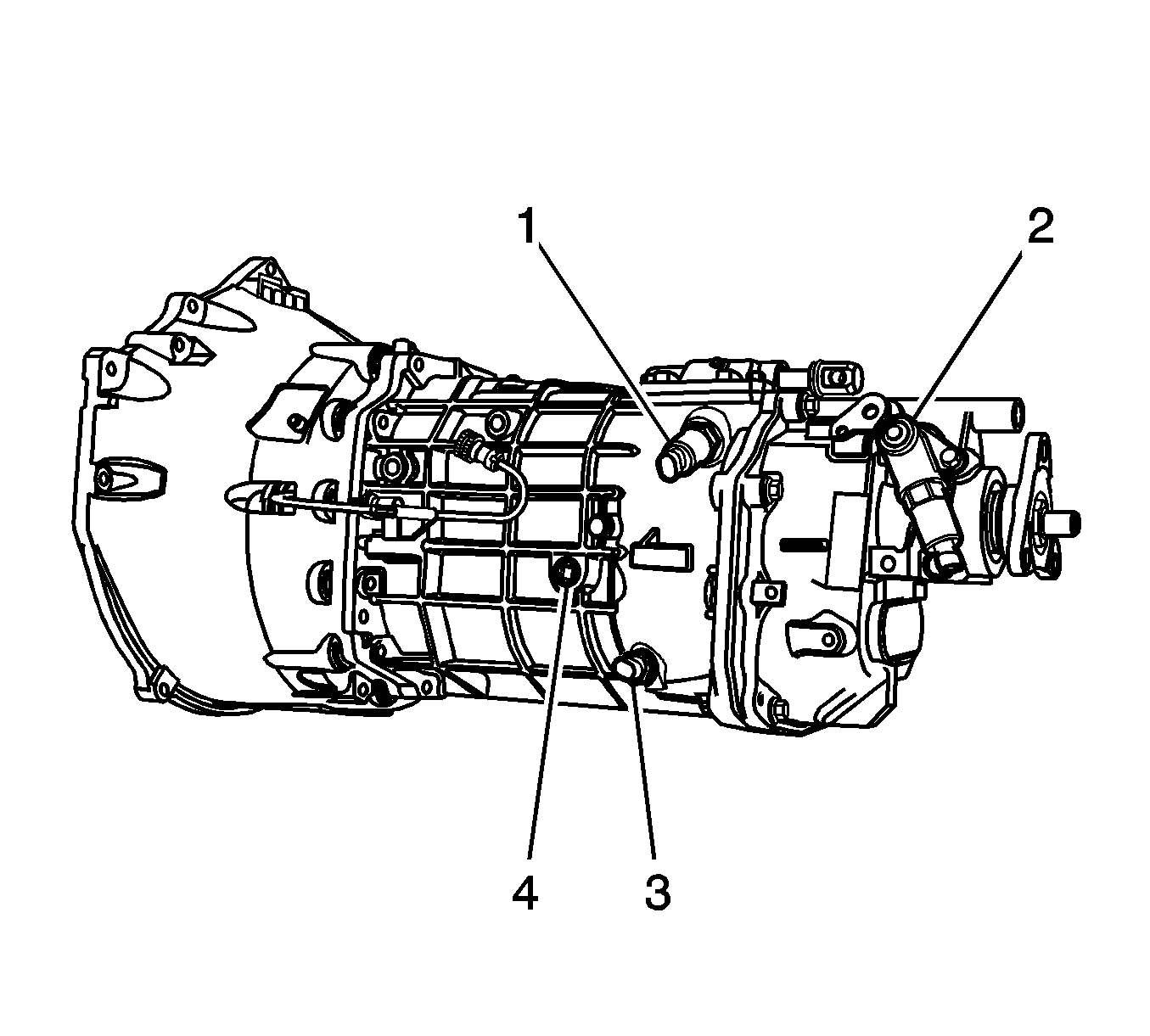

    Fig 1: TFT Sensor, Reverse Lockout Solenoid & Transmission Fluid Fill PLug
    GM2197320Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the TFT sensor (3) and tighten the sensor to 18 N.m (13 lb ft).
  2. Connect the TFT sensor electrical connector.
  3. Fill the transmission to the proper level.
  4. Remove the drain pan.
  5. Lower the vehicle.
