Draining Procedure

WARNING: This page is about a different variant/trim than selected.

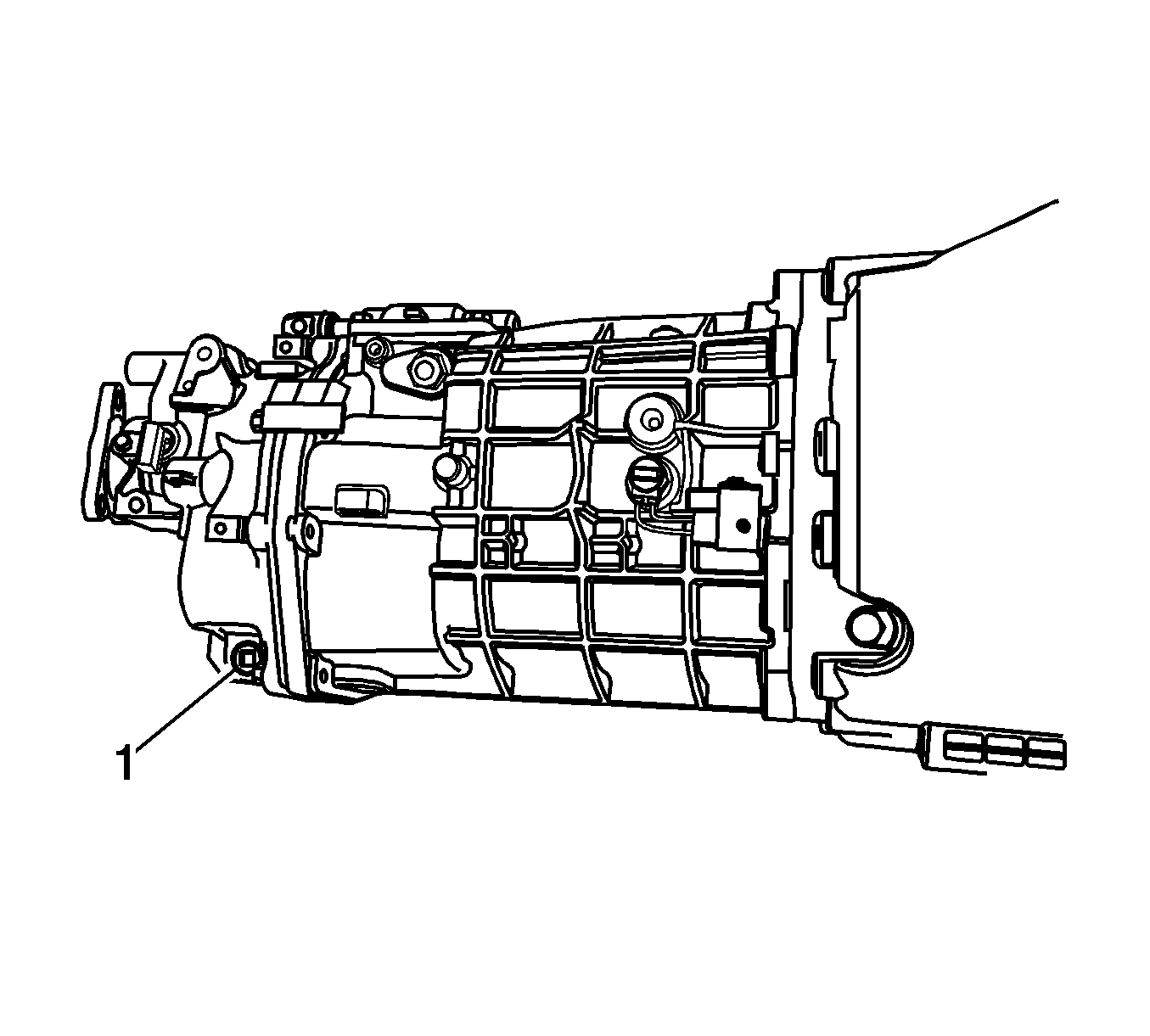

    Fig 1: Transmission Drain Plug Area
    GM2197473Courtesy of GENERAL MOTORS CORP.
  1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle
  2. Clean away all dirt and debris from the transmission drain plug area (1).
  3. Place a suitable drain pan under the transmission.
  4. Remove the drain plug (1).
  5. Allow the system to drain.
    6. CAUTION: Refer to Fastener Caution .
  6. Install the transmission drain plug (1) and tighten to 18 N.m (13 lb ft).
