Extension Housing Removal

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Transmission Holding Fixture Components
    GM2397534Courtesy of GENERAL MOTORS CORP.
  1. Install the DT 47678:  flange (2) and the DT 47678-10:  flange adapter (3).
  2. Mount the transmission on a workbench using the J 3289-20:  holding fixture (1).
  3. Rotate the transmission into a horizontal position.
  4. Remove the transmission drain plug and drain the transmission fluid.
  5. Shift the transmission into NEUTRAL (N).
    6. Fig 2: Shift Control Cover & Bolts
    GM2397537Courtesy of GENERAL MOTORS CORP.
  6. Remove the shift control cover bolts (1).
  7. Remove the shift control cover (2).
    8. Fig 3: Removing/Installing Gear Select/Skip Shift Solenoid
    GM2102211Courtesy of GENERAL MOTORS CORP.
  8. Remove the gear select/skip shift solenoid (1) using DT 49293:  socket (2).
    9. Fig 4: Identifying Shift Detent Assembly
    GM2102212Courtesy of GENERAL MOTORS CORP.
  9. Remove the shift detent assembly (1).
    10. Fig 5: Propshaft Transmission Yoke, Nut & Washer
    GM2397539Courtesy of GENERAL MOTORS CORP.
  10. Install the J 45012:  holder with the mounting bolts to the propshaft transmission yoke (3).
  11. Using a socket wrench, remove the propshaft transmission yoke nut (1).
  12. Remove the propshaft transmission yoke washer (2).

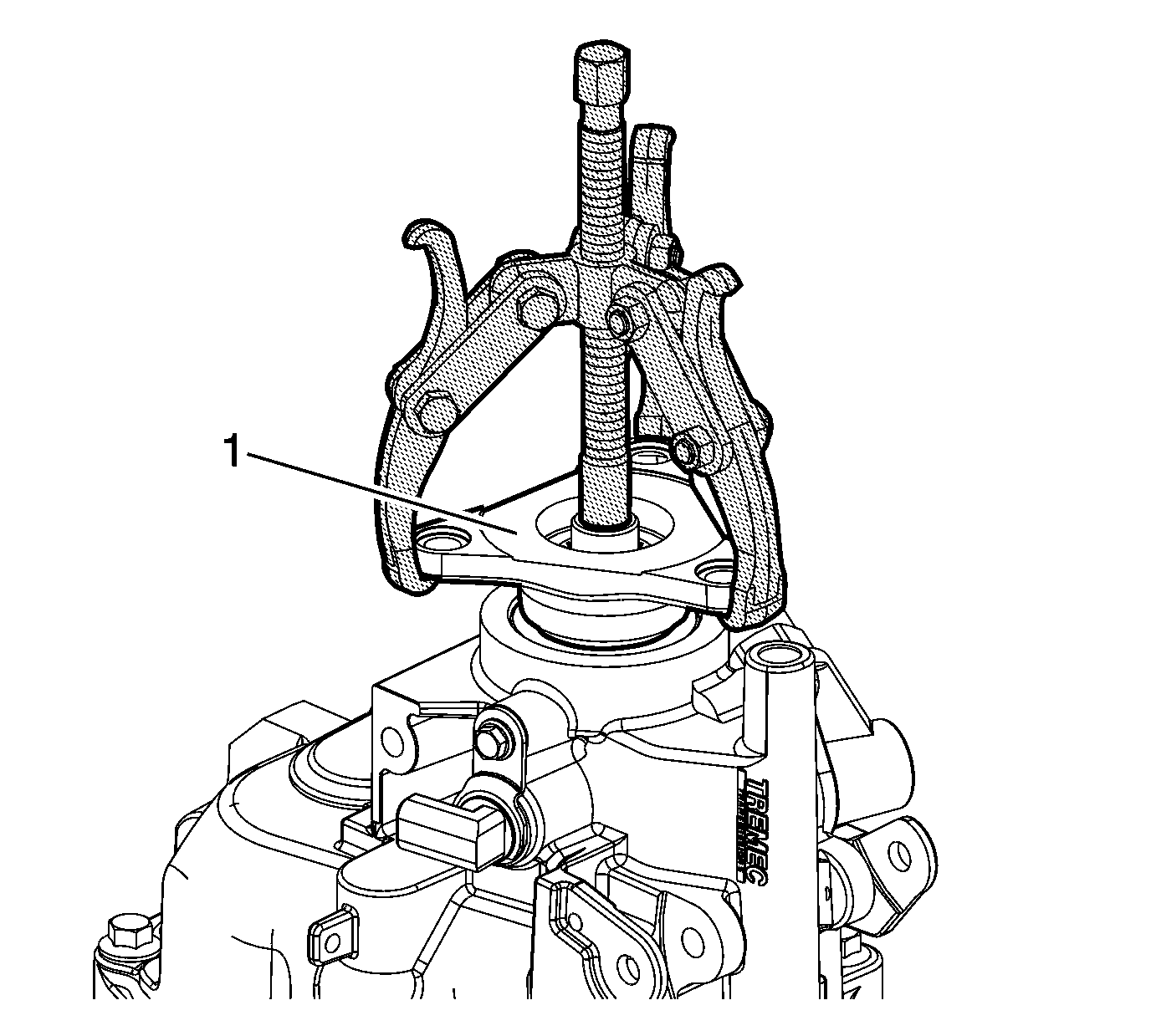

    13. Fig 6: Removing Propshaft Transmission Yoke
    GM2397542Courtesy of GENERAL MOTORS CORP.
  13. Using J 41816:  3 jaw puller, remove the propshaft transmission yoke (1).
    14. Fig 7: Propshaft Transmission Yoke O-Ring
    GM2397543Courtesy of GENERAL MOTORS CORP.
  14. Remove the O-ring (1) from propshaft or propshaft transmission yoke.
    15. Fig 8: Rear Extension Housing, Bolts, & Retainers
    GM2397544Courtesy of GENERAL MOTORS CORP.
  15. Remove the rear extension housing bolts (1), retainers (2, 4) and the rear extension housing (3).
