Transmission Case

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Installing 1st/2nd & 3rd/4th Shift Shaft Bearing
    GM1938414Courtesy of GENERAL MOTORS CORP.
    NOTE: The end of the bearing that has numbers stamped on it must face the J 44384:  bearing installer, so that the numbers are visible when the bearing is installed.
  1. Install the 1st/2nd and the 3rd/4th shift shaft bearing. Use the J 36190:  driver handle (1) and the J 44384:  bearing installer (2).

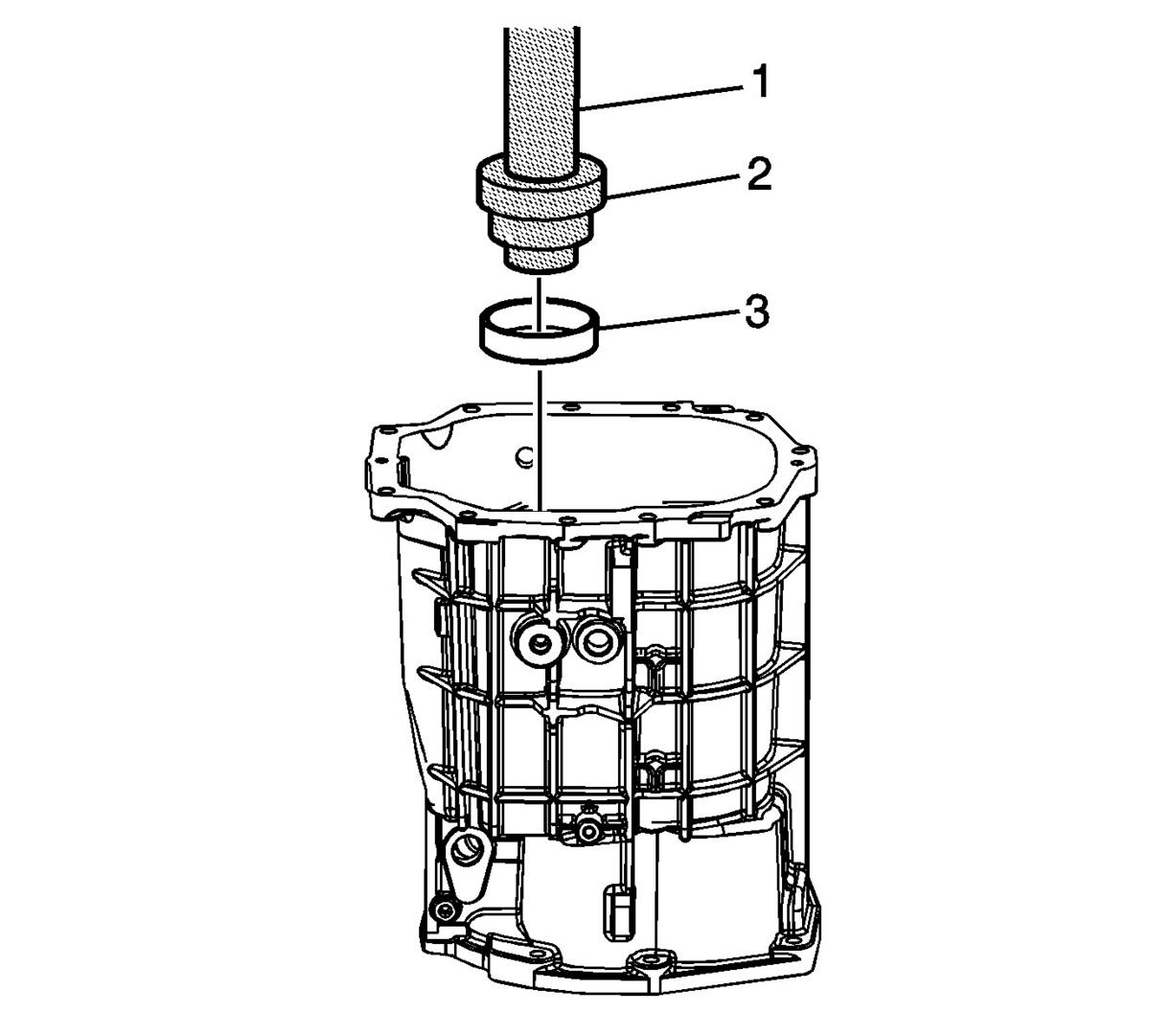

    2. Fig 2: Installing Mainshaft Bearing Race
    GM2102269Courtesy of GENERAL MOTORS CORP.
    NOTE: Bearings and Races are replaced as sets.
  2. Install the mainshaft bearing race (3), using the J 8092:  driver handle (1) and the J 39435:  installer (2).

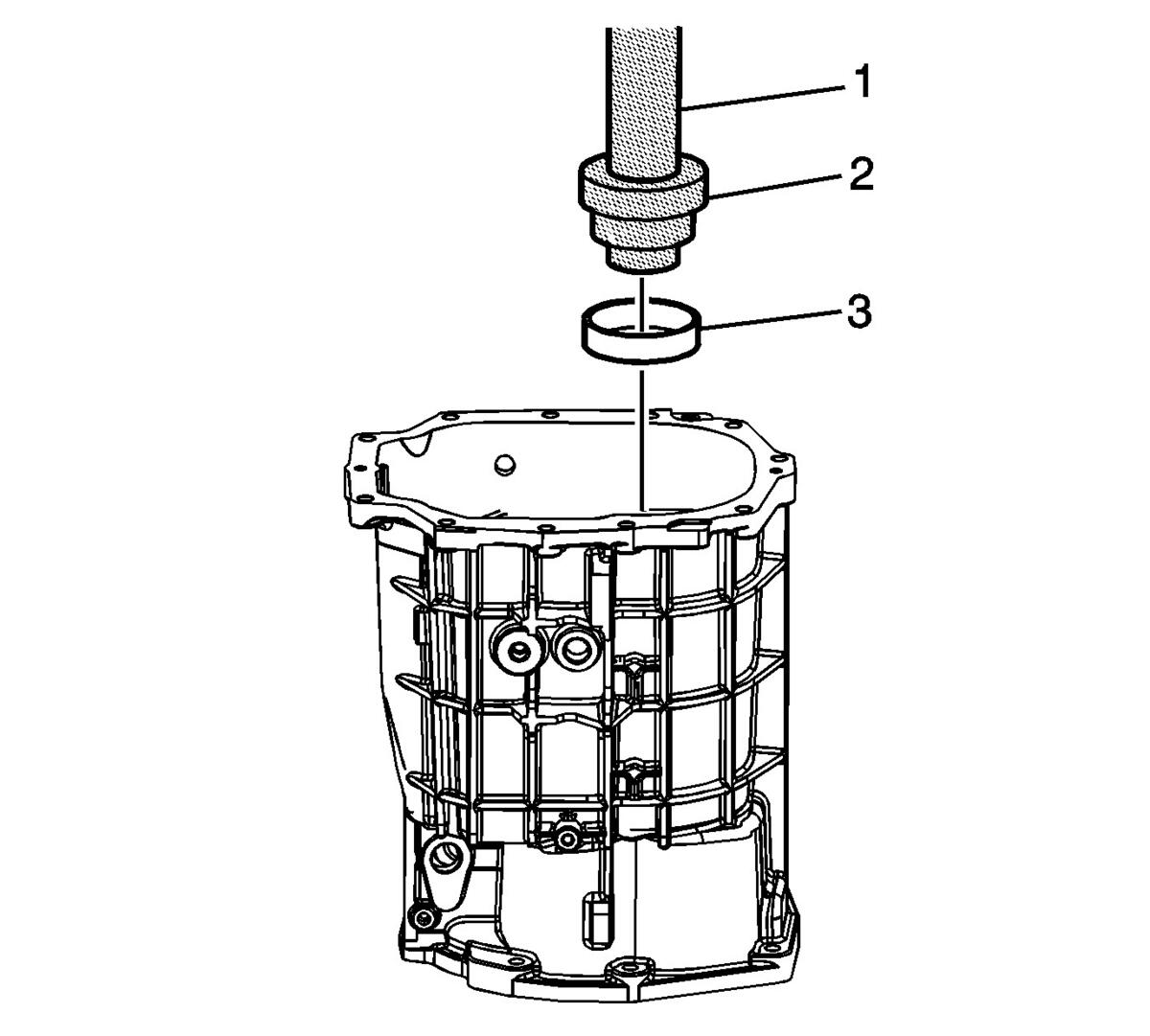

    3. Fig 3: Installing Countershaft Bearing Race
    GM2102270Courtesy of GENERAL MOTORS CORP.
  3. Install the countershaft bearing race (3), using the J 8092:  driver handle (1) and the J 39435:  installer (2).
    4. Fig 4: Locating Dowel Pins
    GM2102252Courtesy of GENERAL MOTORS CORP.
  4. Install the dowel pins (1).

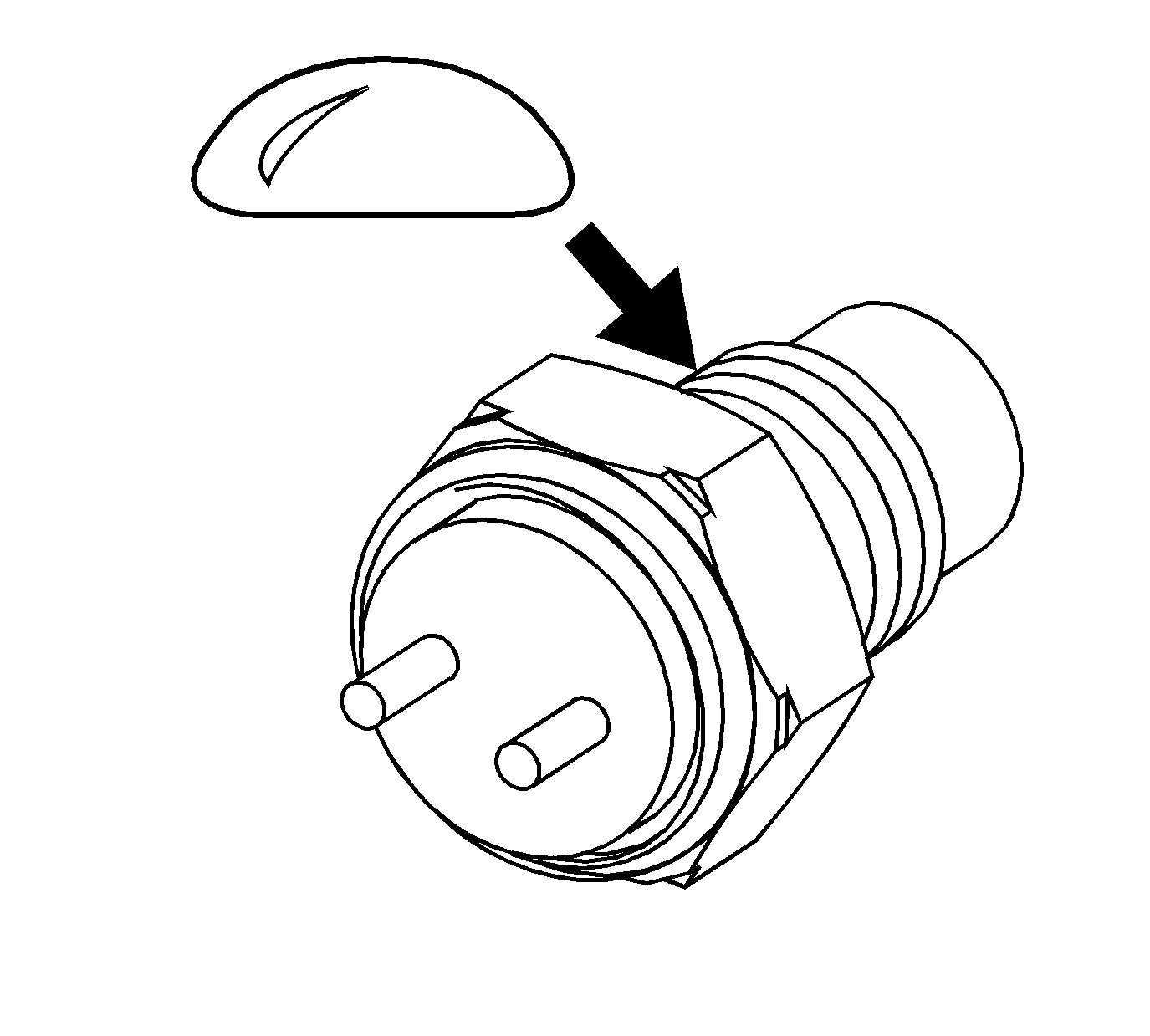

    5. Fig 5: Applying Sealant To Threads Of Backup Lamp Switch
    GM2102271Courtesy of GENERAL MOTORS CORP.
  5. Apply sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent to the threads of the backup lamp switch.
    6. Fig 6: Identifying Backup Lamp Switch Components
    GM2102251Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  6. Install the backup lamp switch (3) and tighten to 27 N.m (20 lb ft).
  7. Connect the backup lamp switch connector harness (1) to the backup lamp switch.
  8. Install the backup switch bracket and bolt with washer (2). Tighten the bracket bolt to 9 N.m (80 lb in).

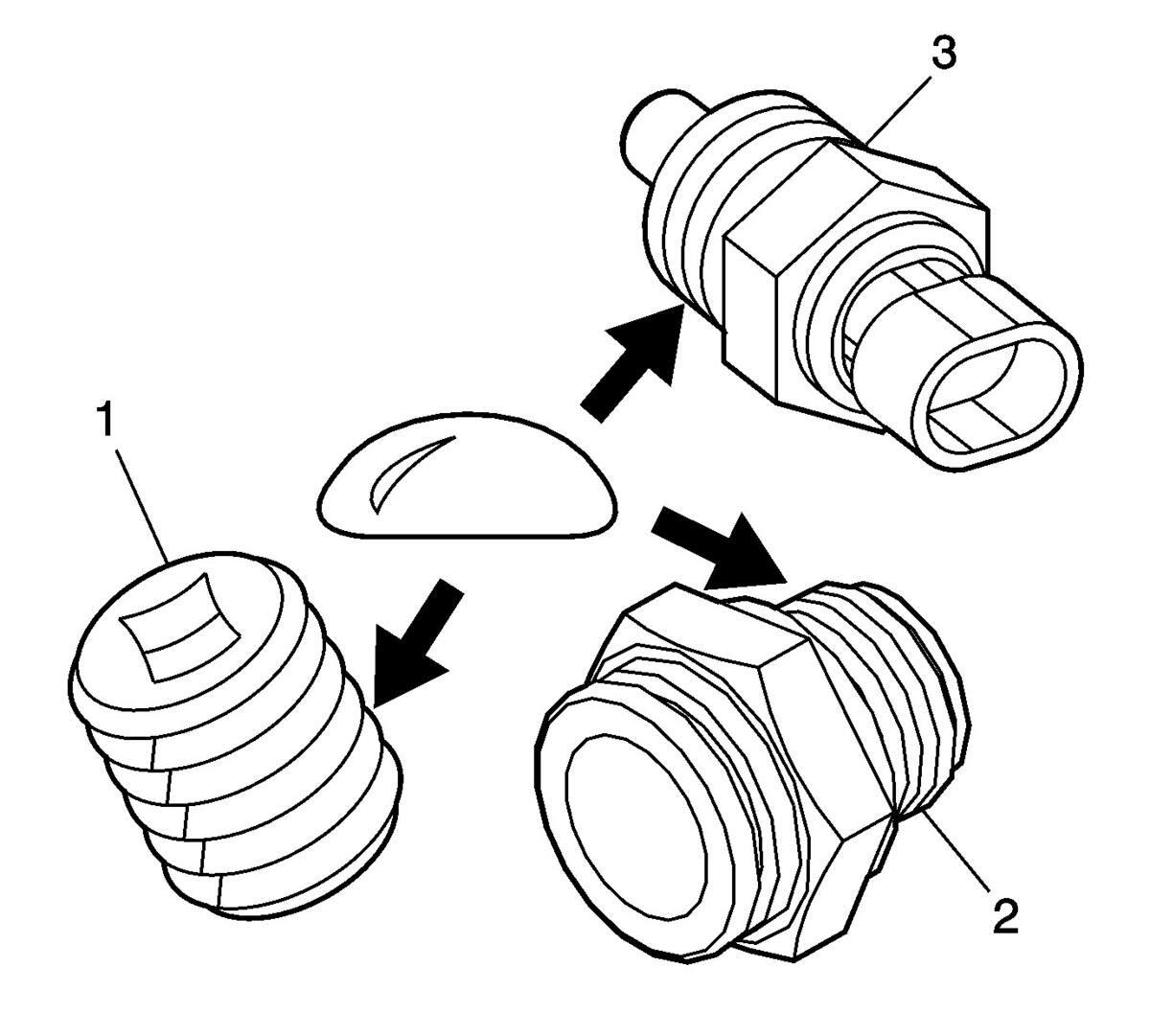

    9. Fig 7: Applying Sealant To Threads Of Transmission Case Fill Plug, Temperature Sensor & Cooler Line Return Fitting
    GM2102272Courtesy of GENERAL MOTORS CORP.
  9. Apply sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent to the threads of the transmission case fill plug (1), the temperature sensor (3) and the cooler line return fitting (2).
    10. Fig 8: Identifying Cooler Line Return Fitting, Fill Plug & Coolant Temperature Sensor
    GM2102250Courtesy of GENERAL MOTORS CORP.
  10. Install the transmission case cooler line return fitting (1) and tighten to 18 N.m (13 lb ft).
  11. Install the transmission case fill plug (2) and tighten to 27 N.m (20 lb ft).
  12. Install the coolant temperature sensor (3) and tighten to 39 N.m (29 lb ft).
    13. Fig 9: Identifying Detent Guide Plate & Attaching Bolts
    GM2102249Courtesy of GENERAL MOTORS CORP.
    CAUTION: The H-pattern on the guide plate must face the extension housing. If the guide plate is installed incorrectly, then damage will occur.
  13. Install the guide plate (2) and the guide plate bolts (1) and tighten to 22 N.m (16 Ib ft).
