Clutch Housing Assembly

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying Vent Assembly, Pump Outlet Cooler Fitting With O-Ring & Transmission Fluid Pump Outlet Pipe Fitting
    GM2102257Courtesy of GENERAL MOTORS CORP.
  1. Install the transmission fluid pump outlet pipe fitting (3) and tighten to 27 N.m (20 lb ft).
  2. Install the pump outlet cooler fitting (2), and tighten to 18 N.m (13 lb ft).
  3. Install the vent assembly (1).
    4. Fig 2: Identifying Transmission Fluid Pump Spring Retaining Plug, Spring & Check Ball
    GM1938426Courtesy of GENERAL MOTORS CORP.
  4. Install the transmission fluid pump check ball (3).
  5. Install the transmission fluid pump spring (2).
  6. Install the transmission fluid pump spring retaining plug (1). Tighten the plug to 27 N.m (20 lb ft).
    7. Fig 3: Identifying Oil Pump & Oil Pump Cover Assembly
    GM1938423Courtesy of GENERAL MOTORS CORP.
  7. Install the oil pump (3).
  8. Install the oil pump cover assembly (2).
  9. Install the retainer ring (1).
    10. Fig 4: Identifying Dowel Pins
    GM2102265Courtesy of GENERAL MOTORS CORP.
  10. Install the dowel pins (1).

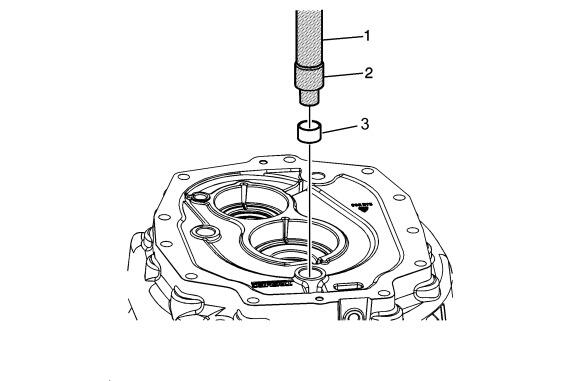

    11. Fig 5: Installing 1st/2nd Speed Shift Shaft Bearing
    GM2102273Courtesy of GENERAL MOTORS CORP.
    CAUTION: If the 1st/2nd speed shift shaft bearing is installed incorrectly it will interfere with the inner shift rail seal causing a leak.
  11. Install the 1st/2nd speed shift shaft bearing flush with the clutch housing, using the J 36190:  driver handle (1) with the J 44384:  bearing installer (2).

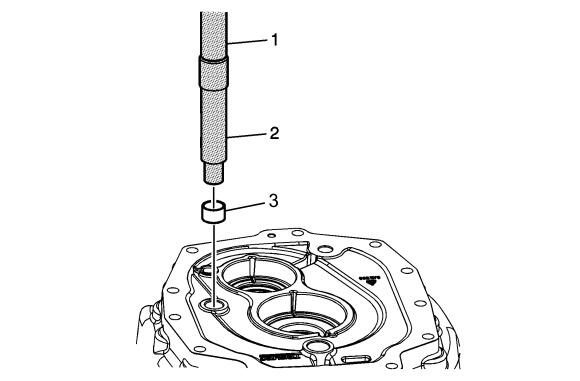

    12. Fig 6: Installing 3rd/4th Speed Shift Shaft Bushing
    GM2102274Courtesy of GENERAL MOTORS CORP.
  12. Install the 3rd/4th speed shift shaft bushing flush with the clutch housing, using the J 36190:  driver handle (1) with the J 39439-1:  bushing removal/installer (2).
    13. Fig 7: Installing Input Shaft Seal
    GM1887607Courtesy of GENERAL MOTORS CORP.
  13. Install the input shaft seal, using the J 39433:  input installer.
    14. Fig 8: Identifying Countershaft Bearing Race & Shim
    GM2102259Courtesy of GENERAL MOTORS CORP.
    NOTE: One or more shims may be used.
  14. Install one or more countershaft bearing shims (2) and the bearing race (1). Refer to Input Shaft, Mainshaft and Countershaft in Shimming Procedures .
    15. Fig 9: Identifying Input Shaft Bearing Race & Shim
    GM2102258Courtesy of GENERAL MOTORS CORP.
  15. Install one or more input shaft bearing shims 2) and the bearing race (1). Refer to Input Shaft, Mainshaft and Countershaft in Shimming Procedures .
