Transmission Case Installation

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Applying Sealer To Transmission Case Adapter Plate Mating Surface
    GM38403Courtesy of GENERAL MOTORS CORP.
    NOTE:
    • Clean housing, bolt holes and all sealing surfaces.
    • Lubricate all components as the assembly progresses. Use J 36850:  transjel® lubricant or the equivalent.
  1. Apply sealant GM P/N 12345739, (Canadian P/N 10953472) or equivalent to the transmission case to adapter plate mating surface.

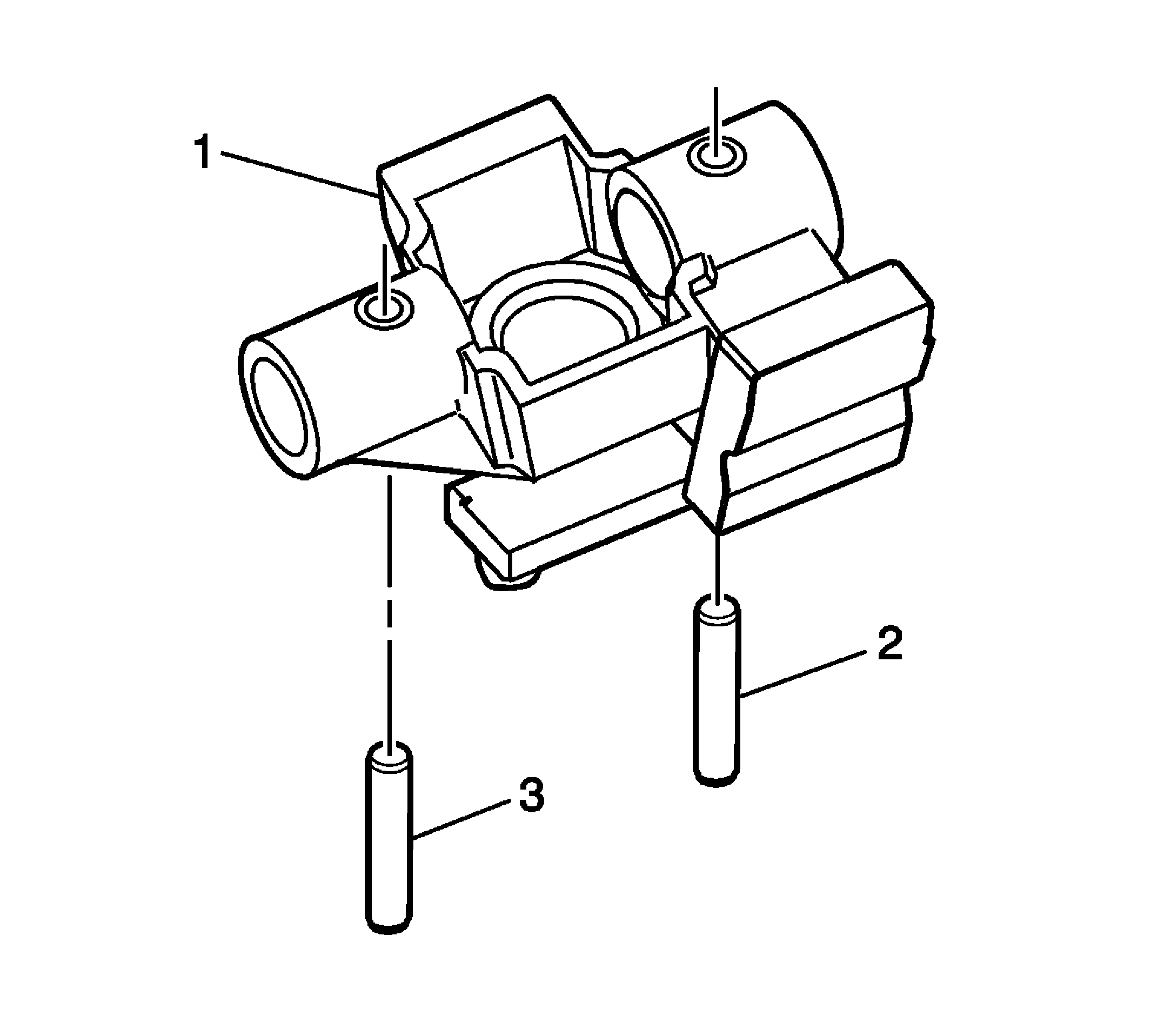

    2. Fig 2: Roll Pins & Shift Control Guide
    GM2397818Courtesy of GENERAL MOTORS CORP.
  2. Remove and discard the roll pins (2 and 3) from the shift control guide.
    3. Fig 3: Transmission Case & Select Control Lever Assembly
    GM2397576Courtesy of GENERAL MOTORS CORP.
  3. Do the following in order to install the transmission case and the select control lever assembly:
    1. Shift the transmission into NEUTRAL in order to keep the 3rd/4th shift shaft from engaging.
    2. Install the select control lever assembly (2), through the transmission case opening, while sliding the transmission case (1) onto the gear clusters and the shift rail components.
    3. Install the select control lever assembly pin (3).
    4. Fig 4: Applying Threadlock To Shift Lever Guide Bolts Threads
    GM350592Courtesy of GENERAL MOTORS CORP.
  4. Apply threadlock GM P/N 12346004, (Canadian P/N 10953480) or equivalent to the threads of the shift lever guide bolts.
    5. Fig 5: Identifying Shift Lever Guide Bolts
    GM2102304Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
    NOTE: In order to align the shift interlock plate slot with the shift lever guide bolt holes, pull up on the 5th/6th and reverse shift rail assembly while installing the shift lever guide bolts.
  5. Install the shift lever guide bolts (1) while pulling up on 5th/6th and reverse shift rail assembly. Tighten the bolts to 27 N.m (20 Ib ft).
    6. Fig 6: Identifying Clutch Housing To Transmission Case Bolts
    GM2102214Courtesy of GENERAL MOTORS CORP.
  6. Install the clutch housing to transmission case bolts (1) and tighten to 48 N.m (36 Ib ft).
  7. Install the clutch concentric actuator cylinder. Refer to Clutch Concentric Actuator Cylinder Replacement (Aisin) or Clutch Concentric Actuator Cylinder Replacement (Tremec) .
    8. Fig 7: Transmission Case Magnets
    GM2397571Courtesy of GENERAL MOTORS CORP.
  8. Install the magnets (1) into the transmission case.
    9. Fig 8: Identifying Shift Detent Assembly
    GM2102212Courtesy of GENERAL MOTORS CORP.
  9. Install the shift detent assembly (1) and tighten to 40 N.m (30 Ib ft).
    10. Fig 9: Removing/Installing Gear Select/Skip Shift Solenoid
    GM2102211Courtesy of GENERAL MOTORS CORP.
  10. Using DT 49293:  socket (2), install the gear select/skip shift solenoid (1) and tighten to 40 N.m (30 Ib ft).
