CMP Actuator Park Position Verification
WARNING: This page is about a different variant/trim than selected.
The CMP actuator can be visually inspected to determine if the tension spring has returned the reluctor wheel and rotor to the park position.

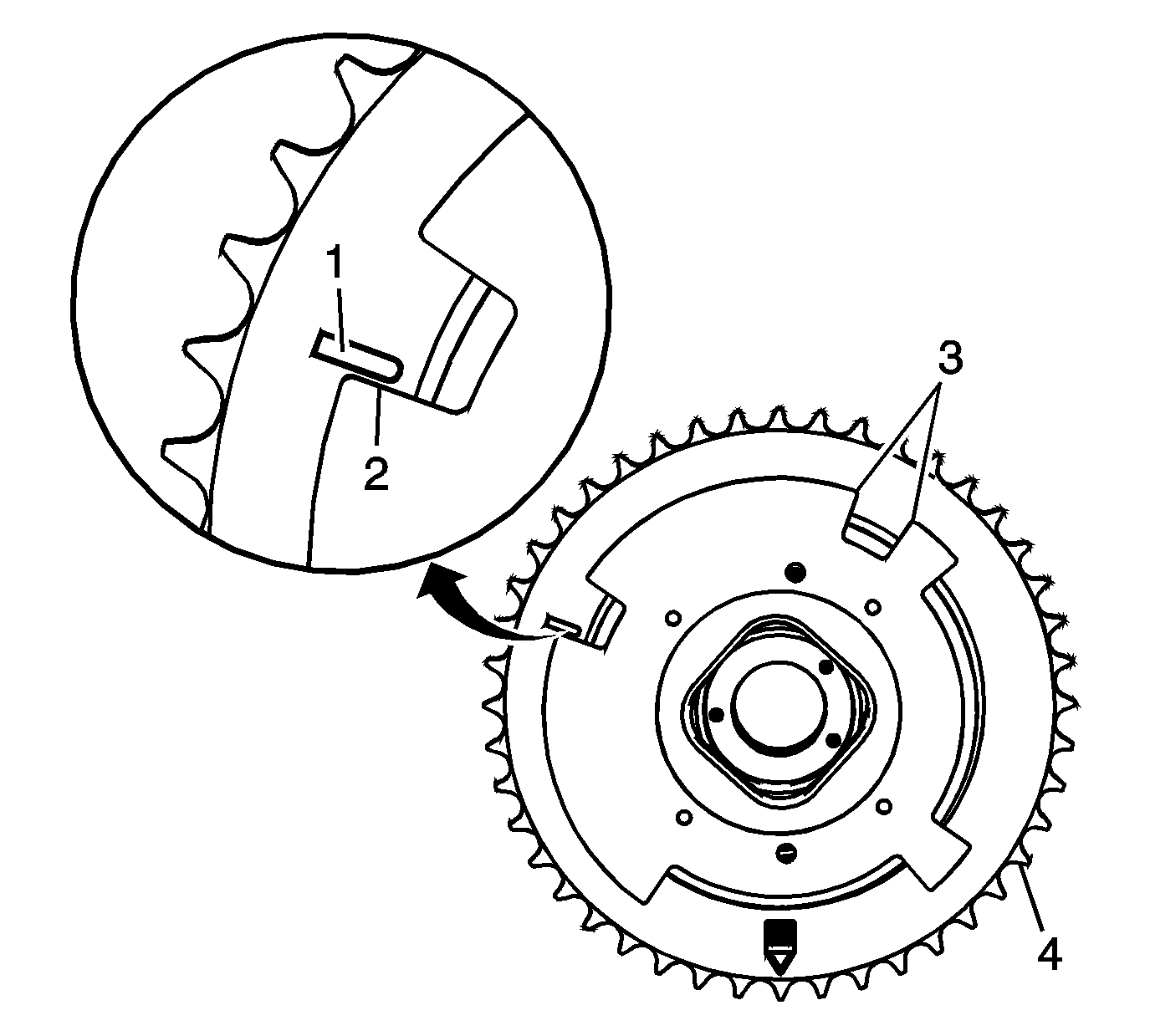

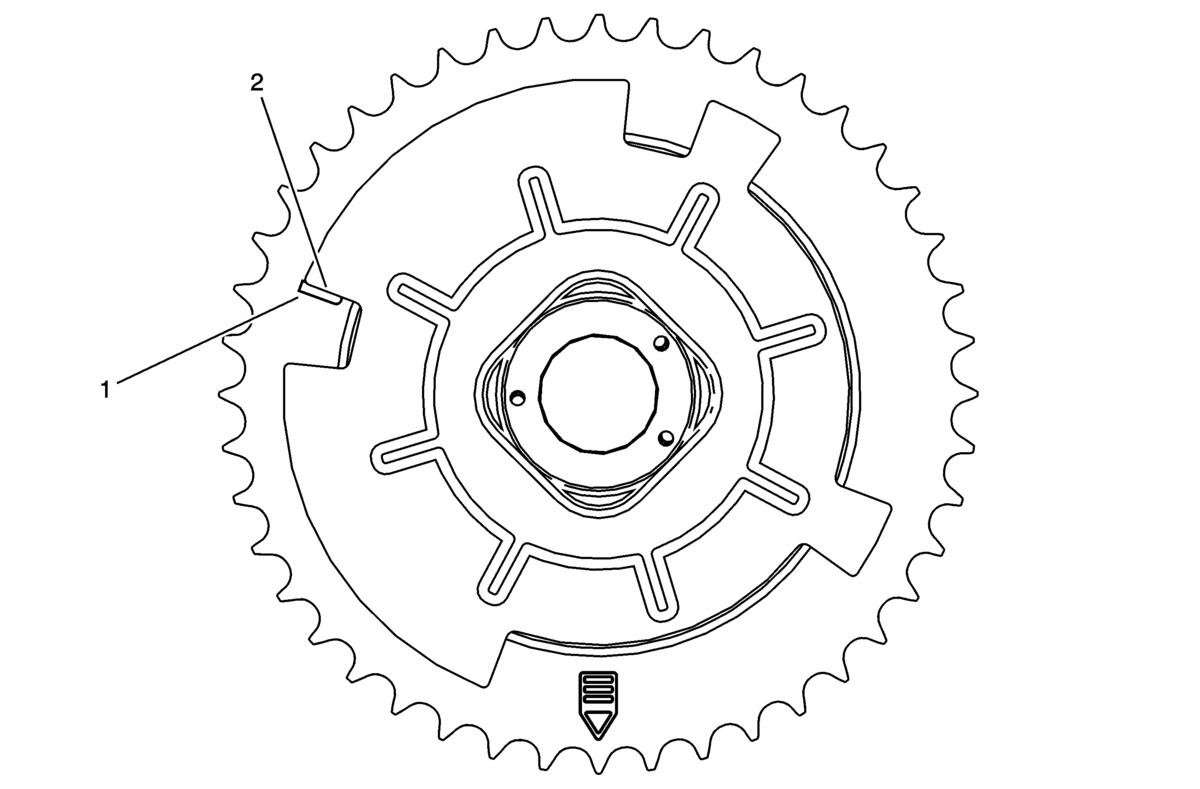

With the reluctor wheel returned to the proper parked position, the edge of the notched area of the wheel (2) aligns with the marking (1) on the camshaft sprocket.
