Oil Filter Removal

WARNING: This page is about a different variant/trim than selected.

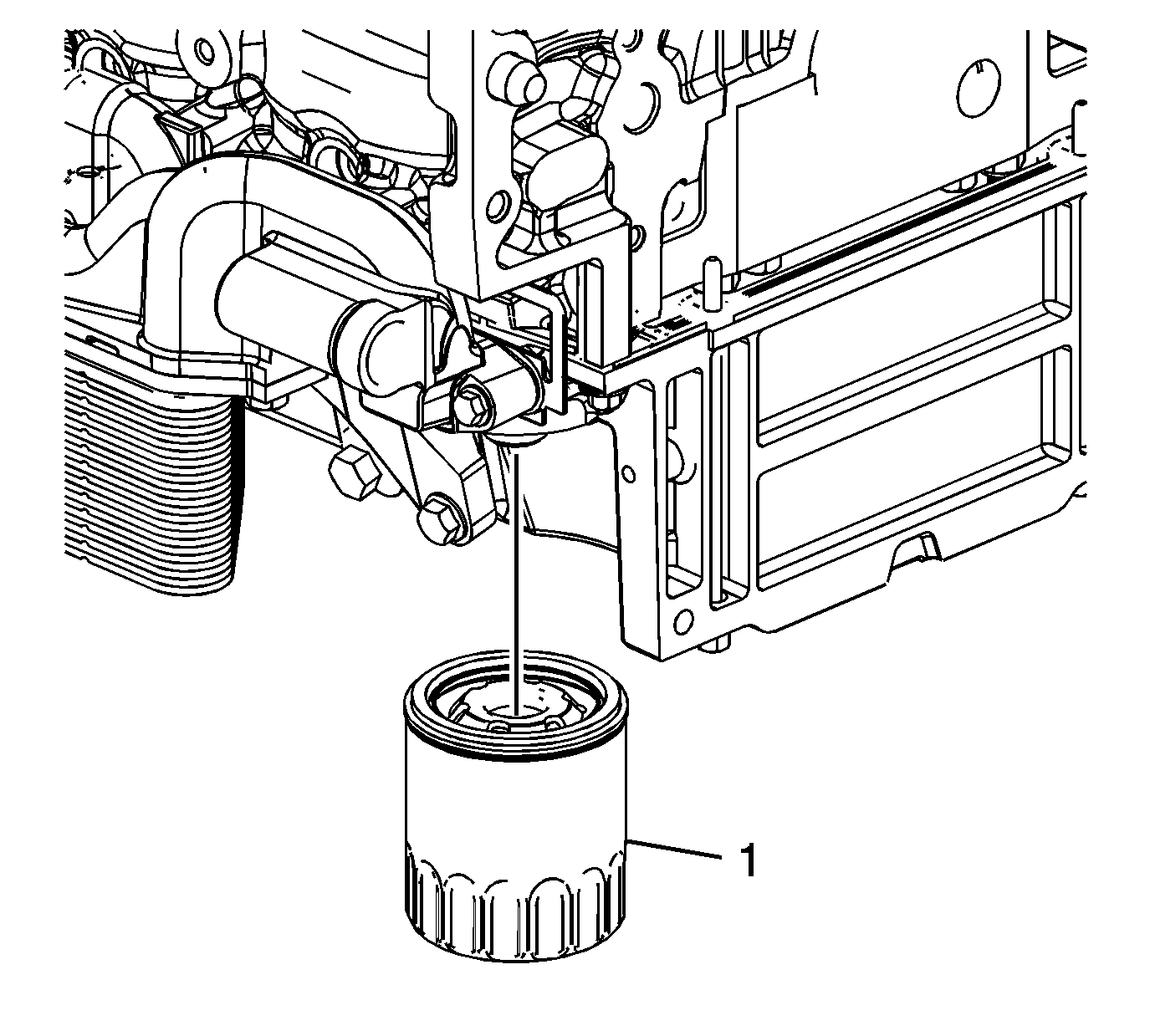

    Fig 1: Identifying Oil Filter
    GM2054167Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil filter (1).

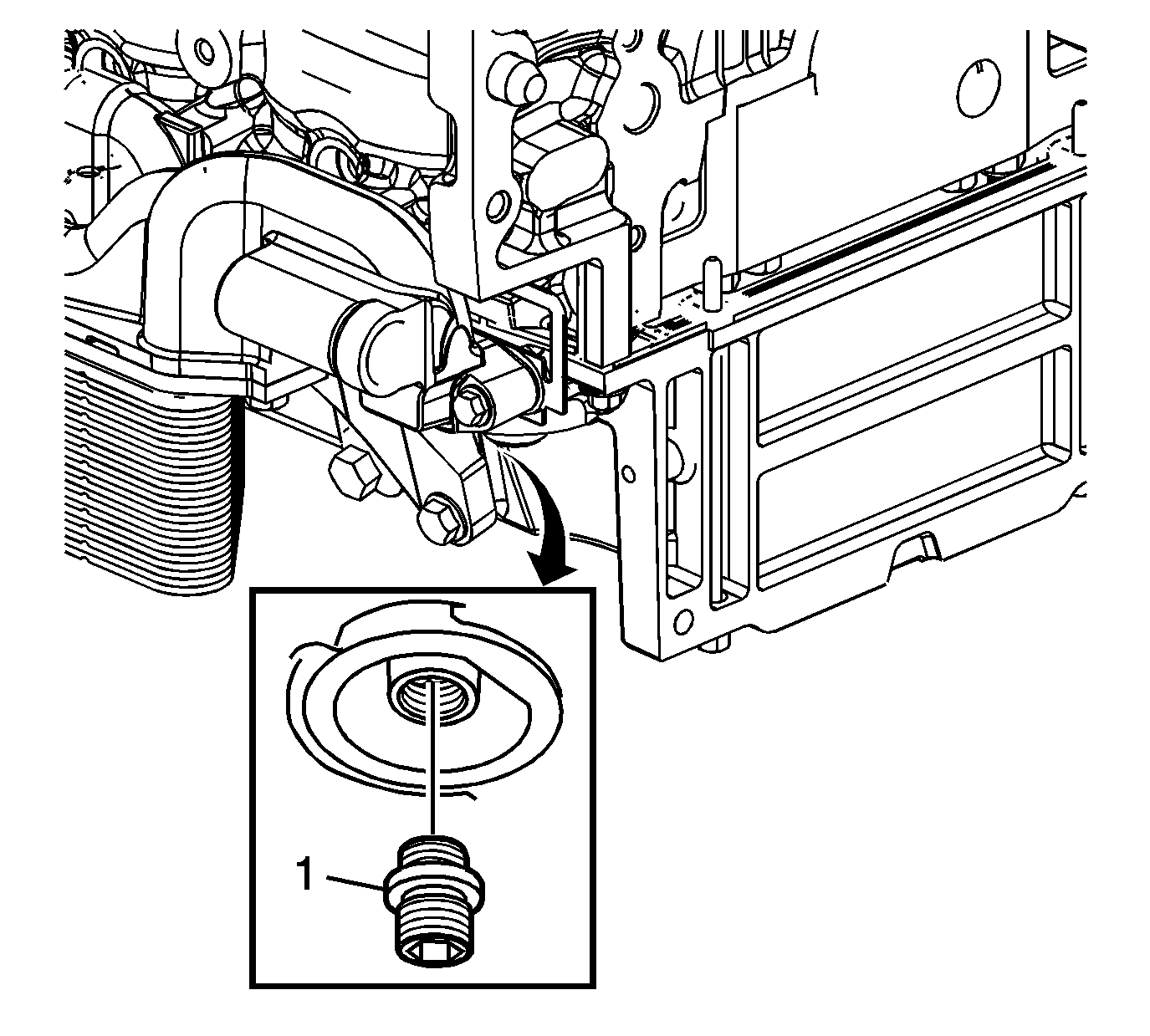

    2. Fig 2: Identifying Oil Filter Fitting
    GM2054171Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil filter fitting (1), as required.
